600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

Categories Gypsum Ceiling Tile Production Line
Supply Ability: 10 lines per Year
After-sales Service: Engineers available to service
Model Number: 1300FM
Keyword: PVC laminated gypsum ceiling tile machine
MOQ: 1 line
Delivery Time: 2 Months
electric control: PLC system
Warranty: 1 year
Payment Terms: L/C,T/T
Speed: 2-15m/min (adjustable)
Price: US $20000-200000
Production Capacity: 2-6 million Sq.m/year
Certification: ISO CE
Finished board type: PVC laminated gypsum board
Brand Name: LVJOE
Product Name: 600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine
Place of Origin: Hebei,China(Mainland)
Effective laminating: 1300mm
Packaging Details: Standard packing
Glue type: Water Glue for PVC film
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine
This advanced automatic PVC lamination machine is designed for laminating fiber glass, paper, PVC film, and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels, delivering professional-grade results with exceptional efficiency.
Product Specifications
Finished board typePVC laminated gypsum board
Effective laminating width1300mm
Electric control systemPLC system
Production capacity2-6 million Sq.m/year
Operating speed2-15m/min (adjustable)
Glue typeWater Glue for PVC film
Warranty1 year
After-sales serviceEngineers available to service
Automatic Gypsum Board Feeding Machine
The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, preparing them for PVC and aluminum film lamination.
Maximum load-bearing capacity3000kg
Stroke1500mm
Minimum height620mm
Maximum height2000mm
Platform size1200×2400mm
Automatic Cutting Machine
Features two cutting systems: vertical/longitudinal cutting and horizontal cutting, equipped with a dust collector system. Cuts 1.2×2.4m large boards into 603×603mm/595×595mm small boards.
Cutting speed15m/min
Cutting knife configurationVertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power17.15KW
Technical Specifications
  • Sheet thickness range: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Annual capacity: 2-6 million Sq.m
  • Compatible film materials: PVC film, aluminum foils, decorative materials
  • Board sheet materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
  • Stacking mode: 10 layers (4 packages/layer)
  • Cutting configuration: Lengthways: 3 blades, Horizontal: 5 blades
  • Overall dimensions: Length: 56000mm, Width: 9200mm
  • Lamination modes: Double side (laminate front and back at once) or Single side

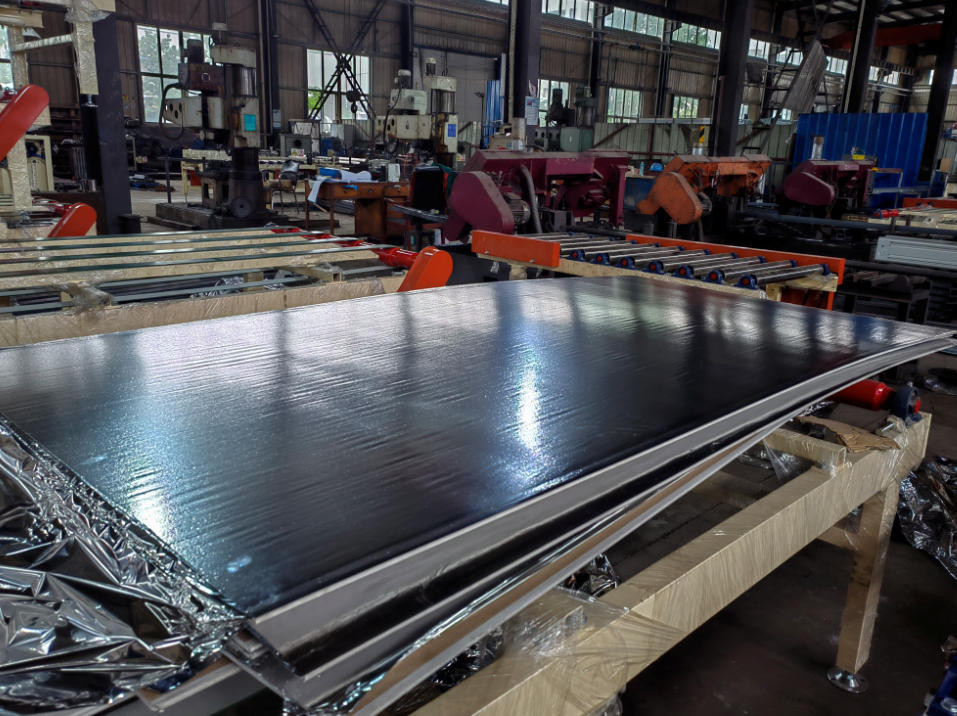

600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

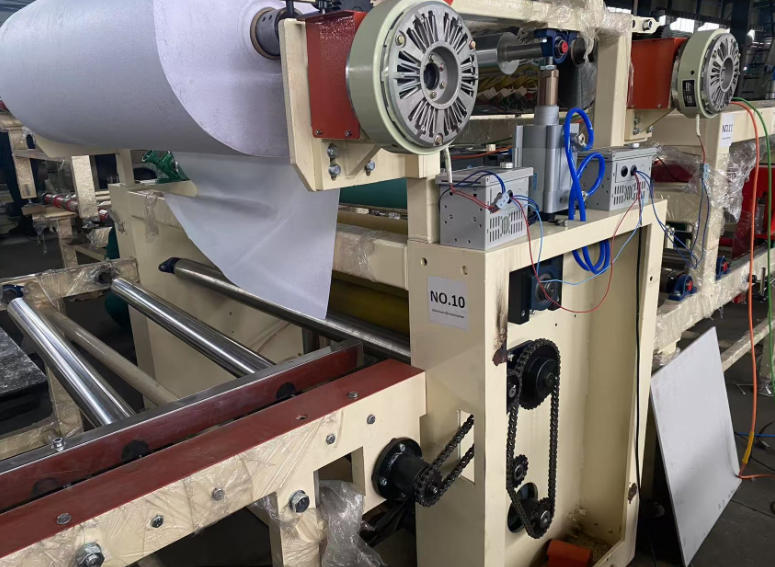

Buy 600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine at wholesale prices
