| Categories | Copper Nickel Alloy Wire |
|---|---|
| Supply Ability: | 1000kg/month |
| Temper Class: | 155/180/200/220 |
| Model Number: | Eureka |
| MOQ: | 5kg |
| Delivery Time: | 10-15days |
| Payment Terms: | Western Union,T/T |
| standard: | GB/ASTM/JIS/BIS/DIN |
| Carbon Content: | Low Carbon |
| Price: | 25-37USD/KG |
| Sample: | Small Order Accepted |
| Product Type: | Wire |
| Certification: | ISO9001 |
| Place of Origin: | China |
| Packaging Details: | case |
| Brand Name: | Tankii |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

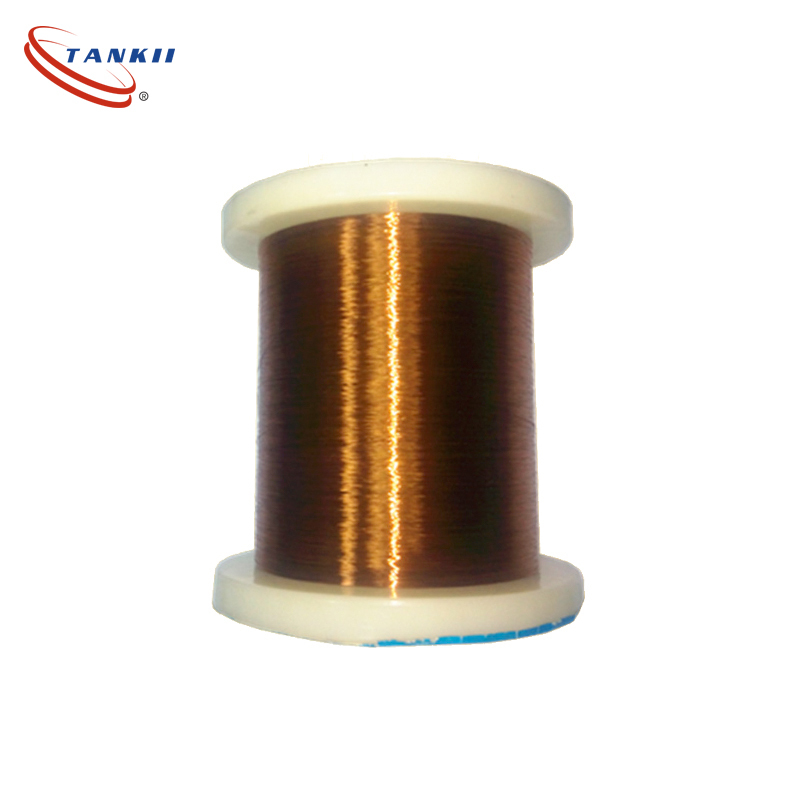

These enameled resistance wires have been broadly used for standard
resistors, automobile
parts, winding resistors, etc. using the insulation processing best
suited for these applications, taking full advantage of the
distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Tpye of Insulation:
1) Polyester resistance wire , class 130
2) Modified polyester resistance wire , class 155
3) Polyesterimide resistance wire , class 180
4) Polyester (imide) coated with polyamide-imide resistance wire , class 200
5) Polyimide resistance wire , class 220
| Constantan 6J40 | New Constantan | Manganin | Manganin | Manganin | ||
| 6J11 | 6J12 | 6J8 | 6J13 | |||
| Main Chemical Elements % | Mn | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Ni | 39~41 | - | 2~3 | - | 2~5 | |
| Cu | REST | REST | REST | REST | REST | |
| Al2.5~4.5 Fe1.0~1.6 | Si1~2 | |||||
| Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| g/cm3 | ||||||
| Resistivity | 0.48 | 0.49 | 0.47 | 0.35 | 0.44 | |
| μΩ.m,20 | ±0.03 | ±0.03 | ±0.03 | ±0.05 | ±0.04 | |
| Extensibility | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| %Φ0.5 | ||||||
| Resistance | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Temperature | ||||||
| Quotiety | ||||||
| α,10 -6 / | ||||||
| Thermoelectromotive | 45 | 2 | 1 | 2 | 2 | |
Tpye of Bare Wire
main property type | Cuni1 | CuNI2 | CuNI6 | CuNi8 | CuNI10 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNI44 | |
main chemical composition | Ni | 1 | 2 | 6 | 8 | 10 | 19 | 23 | 30 | 34 | 44 |
MN | / | / | / | / | / | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |
CU | rest | rest | rest | rest | rest | rest | rest | rest | rest | rest | |
max working temperature | / | 200 | 220 | 250 | 250 | 300 | 300 | 350 | 350 | 400 | |
density g/cm3 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
resistivity at 20 °c | 0.03 ± 10% | 0.05± 10% | 0.10± 10% | 0.12± 10% | 0.15± 10% | 0.25± 5% | 0.30± 5% | 0.35± 5% | 0.40± 5% | 0.49± 5% | |
temperature coefficient of resistance | <100 | <120 | <60 | <57 | <50 | <25 | <16 | <10 | -0 | <-6 | |
tensile strength mpa | >210 | >220 | >250 | >270 | >290 | >340 | >350 | >400 | >400 | >420 | |
elongation | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | |
melting point °c | 1085 | 1090 | 1095 | 1097 | 1100 | 1135 | 1150 | 1170 | 1180 | 1280 | |
coefficient of conductivity | 145 | 130 | 92 | 75 | 59 | 38 | 33 | 27 | 25 | 23 |
|
