HD-DR-6 Thermal Conductivity Tester Laser Flash Method

Categories Rubber Plastic Test Equipment
Brand Name: HAIDA
Model Number: HD-60081
Certification: ISO,CE,
Place of Origin: Guangdong, China (Mainland)
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Delivery Time: 20 days after order confirmed
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test range: 0.005-300W/(m*K)
Test mode A: Room temperature
Test mode B: RT~120℃ (Required other temp. Control device)
Probe diameter A: 7.5 mm
Probe diameter B: 15 mm
Resolution: ±3%
Repeatability error: ≤3%
Test time: 5~160 sec
Power: AC 220V
External dimension(W*H*D): 50*41*20 cm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HD-DR-6 Thermal Conductivity Tester Laser Flash Method

HD-DR-6 Thermal Conductivity Tester (Laser Flash Method)

Description:

Thermal conductivity is an important physical parameter that characterizes the thermal conductivity of materials. It is one of the thermophysical properties of engineering materials, especially kiln materials. The laser flash method is to calculate the thermal conductivity of materials by directly measuring the thermal diffusivity, specific heat capacity and density of materials. The laser thermal conductivity meter uses a beam of laser to irradiate the sample and uses an infrared detector to measure the temperature rise on the back of the sample to calculate the thermal diffusivity of the sample. It is fast and convenient, and can measure the specific heat of the sample and further calculate the thermal conductivity. Thermal conductivity tester (laser flash method) is widely used in the testing of metals and alloys, diamonds, ceramics, graphite and carbon fibers, filled plastics, polymer materials, etc. It can also be used to test the thermal conductivity of liquids, thin films, solid electrical insulation materials, granular materials, powdered materials, and coal. It complies with GJB1201.1-91, ASTM D1461, ASTM E2585, GB/T 22588 and so on standards.

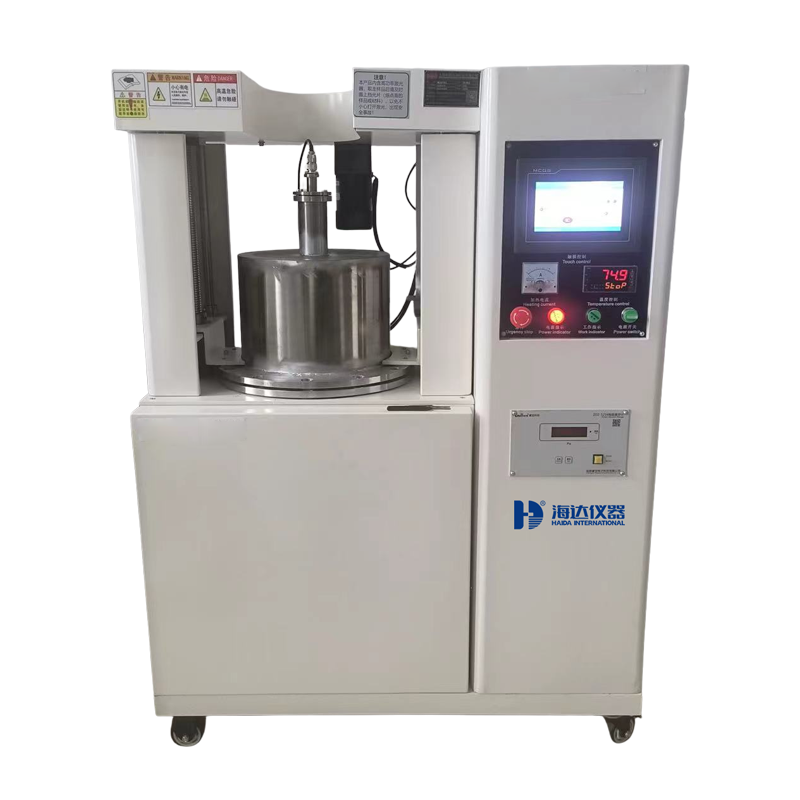

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item
Parameters
Testing temperature
RT~1000℃
Heating and cooling rate
0.1~30℃/min (can be set arbitrarily) high temperature type
Sample size
Square 10*10mm~20*20mm, round <φ20mm, thickness 1~10mm
(Special specifications can be customized)
Measurable sample quantity
1~3 samples
Test environment
Vacuum degree: -0.1Mpa;
Test atmosphere: inert, reducing
Thermal diffusion coefficient range
0.01~1000mm2/s
Thermal conductivity test range
0.1~4000W/m·K
Pulse source
Nd: YAG Laser
Pulse energy
15J/time
Pulse energy adjustable
Yes
Pulse interval adjustable
Software setting
Sensor
Insb/MCT, air cooling
Test sample types
Solid block, low viscosity liquid, high viscosity liquid, solid powder (standard equipped with a set of clamps)
Sample holder
Graphite, SiC, Al2O3, metal (other requirements can be customized)
Cp repeatability
±3% (most materials)
Thermal diffusion coefficient repeatability
±2 (most materials)
Upper computer interface
USB and dedicated portable interface, which can be equipped with a network port to realize data interconnection and remote testing
Power
1∮ AC 220V 50HZ
Standards
GJB1201.1-91, ASTM D1461, ASTM E2585, GB/T 22588, etc.
