XIO16T 620-002-000-113

XIO16T 620-002-000-113
Product Overview
XIO16T 620-002-000-113 is a high-performance expansion input/output module that serves as the core interface component of a rack-mounted mechanical monitoring system. Acting as the system's signal hub, it receives signals from various field sensors—including vibration velocity, acceleration, displacement, and key-phase pulses—and converts them into digital signals for processing.
Key Features
  • Number of dynamic channels: 16 channels
  • Number of tachometer channels: 4 channels (configurable as DC inputs)
  • RPM Measurement Range: 1 to 100,000 rpm
  • RPM Measurement Resolution: 5 ns
  • Input Voltage Range: 0.8 to 500 V peak-to-peak (0.3 Hz to 10 kHz)
  • DC Component Range: -20 to +20 V
  • Maximum Common-Mode Voltage: ±50 V
  • Processing Outputs per Channel: Up to 20
  • Operating Temperature: 0 to 65°C (32 to 149°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
Technical Specifications
Brand NameOther
ModelXIO16T
Ordering Information620-002-000-113
CatalogExtended Vibration Monitoring Card
Gross Weight2.2 lbs / 35.2 oz / 1kg
Packing Size16cm x 16 cm x 12 cm
Country of OriginChina
HS Code8537101190
Lead TimeIn Stock
Shipping PortXiamen
PaymentT/T
Sales Price$2000
Warranty12 months
Courier PartnersDHL, UPS, TNT, FedEx and EMS
Detailed Description
Used in conjunction with the XMV16 or XMC16 processing modules, this module handles sensor signal acquisition, analog signal conditioning, and external communication functions. Featuring a modular rack-mount design, it is installed at the rear of the rack, directly opposite the front-end processing modules. The XIO16T provides the system with a wide range of I/O interfaces and ensures the integrity and accuracy of monitoring data through its high-precision 24-bit data acquisition capability and high signal-to-noise ratio (SNR) processing.
XIO16T module installation and configuration diagram
Compatible Models
  • XMV16 600-003: Vibration Monitoring Applications
  • XMC16 601-052: Combustion monitoring applications
  • XMV516 601-054: Vibration Monitoring
  • ABE04x: standard rack
  • ABE056: Ultra-thin Rack
Routine Maintenance Procedures
ProcedureDescription
LED Indicator CheckPeriodically check the status of the module's LED indicators to confirm normal operation. The XMx16 module's front panel features STATUS, DATA, and ETHERNET ACT and LINK indicators; the XIO16T module features STATUS and ETHERNET indicators.
Cable Connection InspectionPeriodically inspect cable connections to prevent loosening or damage caused by vibration.
Self-Diagnostic FunctionThe module features a self-diagnostic function that can quickly pinpoint faults. If an anomaly is detected, perform a diagnostic check using the VibroSight® software first.
Case Study
A large European power plant, which frequently faced unplanned gas turbine shutdowns due to delays in bearing wear detection, chose to upgrade its condition monitoring system. After installing the XIO16T 620-002-000-113, the system began collecting vibration data from 12 sensors on the gas turbine with an accuracy of 0.1% and a data transmission latency of ≤50 ms. This enabled early fault warning and significantly reduced unplanned outages.

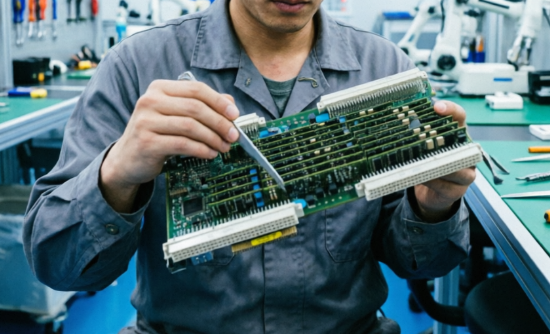

Power plant gas turbine monitoring system installation
Frequently Asked Questions
Can the XIO16T module operate independently?
No. The XIO16T is an interface module and must be paired with an XMV16 or XMC16 processing module; when installed at the rear of the rack, they form a complete "card pair."
Does the XIO16T support hot-swapping?
Yes. The module supports hot-swapping and removal while powered on, allowing for replacement while the system is running. However, for safety reasons, we still recommend disconnecting the power before performing these operations unless absolutely necessary.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.

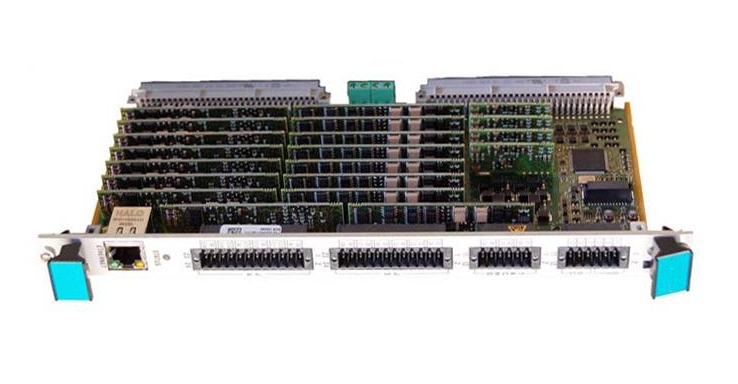

XIO16T module technical specifications and compatibility details
