OEM Customized Wire Rope Drum for Specific Requirements

OEM Customized Wire Rope Drum for Specific Requirements

Product Introduction

Product Overview

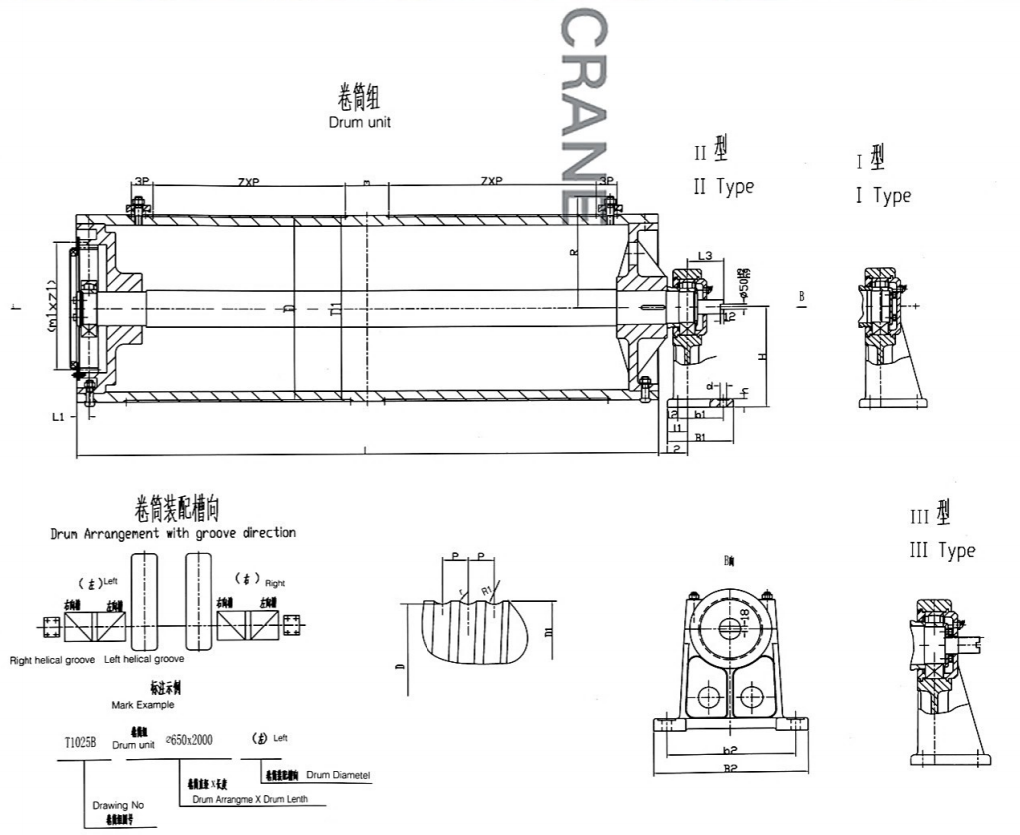

The drum assembly is a key component of the crane hoisting mechanism. It mainly consists of a drum, drum shaft, gear coupling (or large gear), drum hub, bearing housing and bearings.
If a rotary upper travel limit switch is mounted at one end of the drum shaft, synchronous rotation between the drum shaft and the rotating shaft of the limit switch must be guaranteed to ensure proper operation of the hoisting limit function.

Core Materials & Technical Advantages

Three material options are available for drum machining:
  • Grey Cast Iron (Grade HT200): Cost-effective, subject to stress relief ageing treatment.
  • Cast Steel (Grade ZG270-500 / ZG25, ZG35): High tensile strength, requires annealing treatment.
  • Welded Steel Plate (Grade Q235B, Q345B): Designed for heavy-duty applications with superior structural strength, ideal for high-performance lifting equipment.


Services and Commitments

✅ Custom Non-standard Production
We provide engineering drawing design based on your requirements of drum diameter, length, wall thickness, rope groove specification and bearing model.
✅ Complete Assembly Delivery
The drum assembly includes drum, drum shaft, gear coupling, drum hub, bearing housing and bearings. Ready for direct installation upon arrival.
✅ After-sales Support
We offer installation guidance, operation and maintenance recommendations, and assistance for troubleshooting drum assembly faults.
