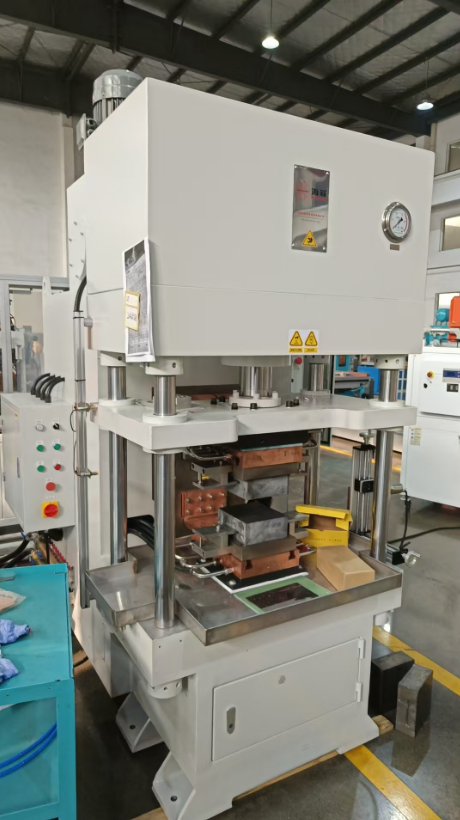

HFTD-600-Y Copper Diffusion Welding Machine
Product Overview
The HFTD-600-Y Copper Diffusion Welding Machine is engineered for
diffusion welding of flexible copper busbars, copper strips, and
other conductive components requiring stable, low-resistance
joints. This advanced system combines a four-column hydraulic
welding structure with medium-frequency power supply, controlled
heating, and programmable welding parameters.
Supporting copper-to-copper, copper-to-nickel, and
hard-copper-to-soft-copper bonding, the machine accommodates
workpiece thicknesses from 0.5 to 25 mm. With a maximum hydraulic
output pressure of 20 tons, 600 kVA medium-frequency welding
transformer, and welding current up to 60 kA at 100% duty cycle,
the HFTD-600-Y delivers exceptional performance for demanding
flexible busbar and high-current copper connection production.
How the HFTD-600-Y Copper Diffusion Welding Process Works
The machine precisely controls temperature, hydraulic pressure, and
welding time throughout the diffusion welding cycle. Unlike
conventional filler-metal connections, this process brings mating
metal surfaces together under controlled heat and pressure. For
copper components, this method produces conductive joints while
maintaining the precise geometry required for downstream assembly
processes.
Main Technical Parameters
| Parameter | Specification |
|---|
| Structure Type | 4-Column Hydraulic Welding Workbench |
| Control Method | Variable Frequency Inverter, Haifei Copper Welding Machine Control
System |
| Temperature Measurement Range | 300-1200℃, Repeatability: ±0.5%TH. Temperature can be set and
displayed on the touch screen. |
| Operating Ambient Temperature | 5-45℃ |
| Pressurization Method | Max. Output Pressure: 20T, Initial Pressure: 0.5T |
| Workbench Travel Range | 150mm, Ram Positioning Repeatability: ±0.05mm |
| Electrode Installation Area | 240mm × 180mm |
| Effective Welding Area | 150mm × 150mm (Smaller area enables faster welding speed)
(Customizable) |
| Single Welding Area | 150mm × 150mm (Smaller area enables faster welding speed) |
| Weldable Material Range | Copper-Copper, Copper-Nickel, Hard Copper-Soft Copper |
| Welding Material Thickness Range | 0.03-5mm |
| Welded Product Thickness Range | 0.5-25mm |
| Welding Control Functions | 1. Output Frequency: 15-400Hz
2. Up to 64 programmable welding schedules
3. Programmable I/O: 3-stage programmable output for better
integration with PLC, robots, etc.
4. Weld spot counting function |
| Protection Functions | Abnormal water flow alarm & shutdown, abnormal current alarm &
shutdown, abnormal pressure alarm & shutdown |
Key Features
- Four-Column Hydraulic Welding Structure: Provides stable positioning during pressing and heating with 150mm
travel range and ±0.05mm ram positioning repeatability
- 600 kVA Medium-Frequency Welding Power: Haifei 600 kVA transformer rated at 60 kA welding current with
100% duty cycle for demanding applications
- Adjustable Heating Temperature: Precise control from 300-1200°C with touch screen display and
parameter setting
- Up to 64 Welding Programs: Store multiple welding schedules for different products and
material combinations
- Flexible Welding Area: Standard 150 × 150 mm area with customizable options for optimized
welding cycles
- Built-In Process Protection: Comprehensive safety monitoring for cooling-water flow, welding
current, and hydraulic pressure with automatic shutdown
Applications
- Flexible Copper Busbars: Manufacturing high-current capacity busbars with controlled
bending and routing capabilities
- Copper Strip Assemblies: Joining copper strips and conductive layers into assemblies
requiring consistent electrical connections
- Battery and Energy Storage Components: Production of flexible copper conductors for battery and energy
storage systems
- Power Distribution Components: Copper conductive assemblies for electrical distribution equipment
and high-current applications
Frequently Asked Questions
What products is the HFTD-600-Y mainly used for?
Primarily designed for diffusion welding of flexible copper busbars
and copper strips. The machine can also be configured for other
copper conductive assemblies after process evaluation.
Can the HFTD-600-Y weld different copper combinations?
Yes. The specified material combinations include copper-to-copper,
copper-to-nickel, and hard-copper-to-soft-copper.
How many welding programs can be stored?
The control system supports up to 64 programmable welding
schedules, allowing different products or process conditions to use
separate parameter settings.
Can the machine be connected to a robot or PLC?
Yes. Three-stage programmable I/O is provided for integration with
PLCs, robots, and other production automation systems.
Does the HFTD-600-Y require cooling water?
Yes. The equipment requires a circulating cooling-water system with
a flow rate of at least 150 L/min, inlet temperature no higher than
35°C, and specified filtration and water-quality conditions.
Can Haifei test our copper busbar before equipment selection?
Yes. For copper diffusion welding, providing drawings or samples
allows welding parameters and tooling requirements to be evaluated
before final equipment configuration.
Request a Copper Diffusion Welding Solution
If you are manufacturing flexible copper busbars, copper strips, or
high-current conductive components, send Haifei your product
drawings, material specifications, welding area, and required
production volume. Our engineering team can evaluate your
application and recommend the appropriate diffusion welding
configuration, tooling, and automation approach for your production
line.
