Double Platform 4 Axis PCBA Router Machine
Automatic PCB Depaneling Machine with CCD Detection for precision
separation of SMT post-process PCBA assemblies.
Product Overview
This double-platform automatic PCB depaneling router is precision
separation equipment specifically designed for SMT post-process
PCBA cutting. Featuring HIWIN high-precision linear guides, a
4-axis full servo driving system, and a stable 6000RPM high-speed
routing spindle, the machine operates fully automatically following
pre-programmed cutting paths.
It effectively handles separation requirements for stamp-hole
linked PCBs, curved circuit boards, and various irregular-shaped
assemblies, replacing outdated traditional V-Cut separators to
deliver cleaner, stress-free depaneling results.
Utilizing Windows operating system with built-in CCD visual
positioning detection, operators can monitor the entire cutting
procedure in real time, ensuring stable machining accuracy and
consistent finished PCB quality for mass electronics production.
Working Principle
- File Import & Program Setting: Operators import PCB Gerber files or manually mark cutting tracks
on the Windows touch control system to generate independent routing
programs for each board model.
- CCD Visual Positioning Calibration: The built-in CCD camera automatically identifies PCB fiducial
marks to calibrate cutting tracks, eliminating manual positioning
errors.
- Servo-Driven Precision Routing: The 4-axis servo motor system drives the 6000RPM high-speed
spindle to move along preset paths. The sharp routing bit cuts
through PCB connecting tabs gently without stretching or cracking
components on PCBA.
- Dust Collection & Finished Board Output: An integrated internal dust collector absorbs all cutting debris
and resin dust during operation to keep the work zone clean. After
routing completes, finished separated PCBs are ready for unloading.
Key Features
- 6000 RPM high-speed routing spindle for smooth cutting with low
vibration and no component damage
- Double independent worktable design for alternating loading &
unloading to maximize production efficiency
- Full HIWIN linear guide transmission for ultra-smooth movement,
long service life, and stable cutting precision
- 4-axis servo motor full drive with accurate position control and
repeat positioning error less than 0.02mm
- Windows intelligent operating system supporting Gerber file direct
import and manual point-to-point positioning
- Built-in CCD visual detection system for real-time track monitoring
and automatic offset correction
- Integrated powerful dust collector to collect PCB powder and
cutting scraps, protecting spindle and workshop environment
- Wide material compatibility including FR4 rigid PCB, aluminum
substrate, FPC flexible circuit board, and composite boards
- Ideal substitute for traditional V-Cut separators, handling
stamp-hole linked panels and curved special-shaped boards
- Low operating noise, compact body design, easy maintenance, and
simple operator training
Technical Specifications
| Model | RM-560 |
|---|
| Structure | Single Spindle, dual work platforms |
|---|
| Machine Size (mm) | 1000*1200*1550 |
|---|
| Gross Weight | 700kg |
|---|
| Dust Collector Size (mm) | 625*600*1600 |
|---|
| Dust Collection Method | Bottom collection |
|---|
| Work Platform Size | 300*400mm |
|---|
| Platform Driving Type | Double rotary platform, precision slicer with 3-phase motor
inverter |
|---|
| Driving System | X/Y/Z axis driven by servo motor, W axis driven by three phase
motor frequency inverter |
|---|
| Routing Spindle | 6000rpm |
|---|
| Cutting Speed | 1-100mm/s |
|---|
| Cutting Accuracy | ±0.05mm |
|---|
| Repeat Accuracy | ±0.02mm |
|---|
| Axis Moving Speed | 800mm/s |
|---|
| Z Axis System | Screw driven, dual guide |
|---|
| Router Kit | Milling cutter, φ0.8~φ3.0 left rotation, Shank Tungsten Steel |
|---|
| Tool Life Control | Software program control |
|---|
| Active Protective Function | Safety light curtain |
|---|
| Security Door | Manual door |
|---|
| Error Alarm | Yes |
|---|
| Program Method | Self programming, camera controlled by keyboard and mouse |
|---|
Compatible PCB Materials
FR4 rigid circuit board, aluminum base PCB, FPC flexible board,
CEM-1 composite board, thin multi-layer PCB
Main Depaneling Applications

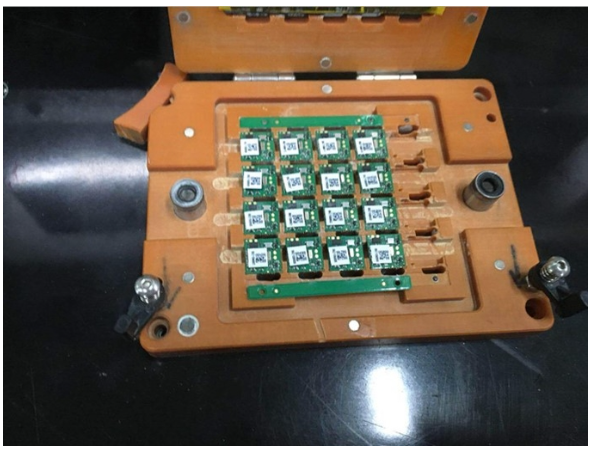

- Stamp-hole connected PCB panels
- Irregular curved contour circuit boards
- Thin delicate assemblies with sensitive SMT components
- Small batch prototype PCBA & large-volume mass production lines
