Carbide Insert Router Bit Set for CNC Woodworking — Bottom Surfacing & Grooving Cutter, 1/2" Shank, Replaceable 4-Sided Inserts

4F Indexable Carbide Insert Router Bit with Bearing Guide

—FOR Wood Trimming & Edge Profiling Cutter for CNC Router

Product Description

This 4-piece indexable router bit set is the cost-effective workhorse for any woodworking shop that cuts grooves, slots, dados, and flat-bottom recesses day in and day out. Instead of a solid carbide bit that dulls and must be sharpened or replaced, each of these bits carries four replaceable square carbide inserts — with 4 cutting flutes per insert — meaning one bit body can cut through 16 times more work before it ever needs attention.

The indexable design is the difference between a tool and a system: when an edge dulls, you don't send the bit out for sharpening and lose a day of production. You simply loosen the Torx screws, rotate the insert to a fresh edge, and tighten — back to cutting in under two minutes, with zero loss of cutting diameter or precision.

Built for CNC and production environments, the set covers multiple sizes so you can match the bit to the job: narrow slots, wide dados, bottom surfacing, flattening, mortising, and groove cleaning. The 1/2" professional shank delivers the rigidity that deep, heavy passes demand.

Material & Build Quality

Replaceable Square Carbide Inserts — The Core Advantage

Each bit carries four square inserts, and every insert has four sharp cutting edges — numbered 1-4 for easy indexing tracking.

• 16 working edges per bit (4 inserts * 4 edges): one bit body outworks 16 solid-carbide edges before any service is needed
• No sharpening required: rotating to a fresh edge takes under two minutes with the included Torx driver — no off-site sharpening, no downtime, no loss of cutting diameter

• Consistent geometry: precision-ground inserts index to a repeatable position every time, maintaining constant cutting diameter and profile across all 16 edges
• Consumable economics: when all 16 edges are used, replace only the inserts — the steel body lasts for years. Spare insert pricing available on request

Torx Screw Fixing System

• Secure locking: Torx-head screws clamp each insert firmly into its pocket, eliminating insert shift and chatter under heavy side loads
• Vibration resistance: the screw head profile and hardened pockets keep inserts locked through sustained CNC production runs
• Quick service: standard Torx driver (included) releases and re-seats inserts in seconds — serviceable on the machine, no bench work

Heat-Treated Alloy Steel Body with Black Coating

• Rigidity: the 1/2" shank cross-section resists deflection during deep grooving and surfacing passes
• Concentricity: precision-ground body and insert pockets hold runout to tight tolerances — smooth groove bottoms, square shoulders, and even wear across inserts
• Black anti-corrosion coating: shields the body from rust during ocean freight and humid storage, and sheds resin and wood sap for cooler, cleaner cutting

Cutting Results

• Groove bottoms: flat and smooth, ready for shelf insertion or exposed design details — no chatter marks
• Shoulders: square and crisp, joint after joint, because the cutting diameter never drifts as edges index
• Surfacing passes: even material removal with a clean finish — minimal sanding before final finish
• Consistency: each insert indexes to the same position, so every part in a production run matches the first

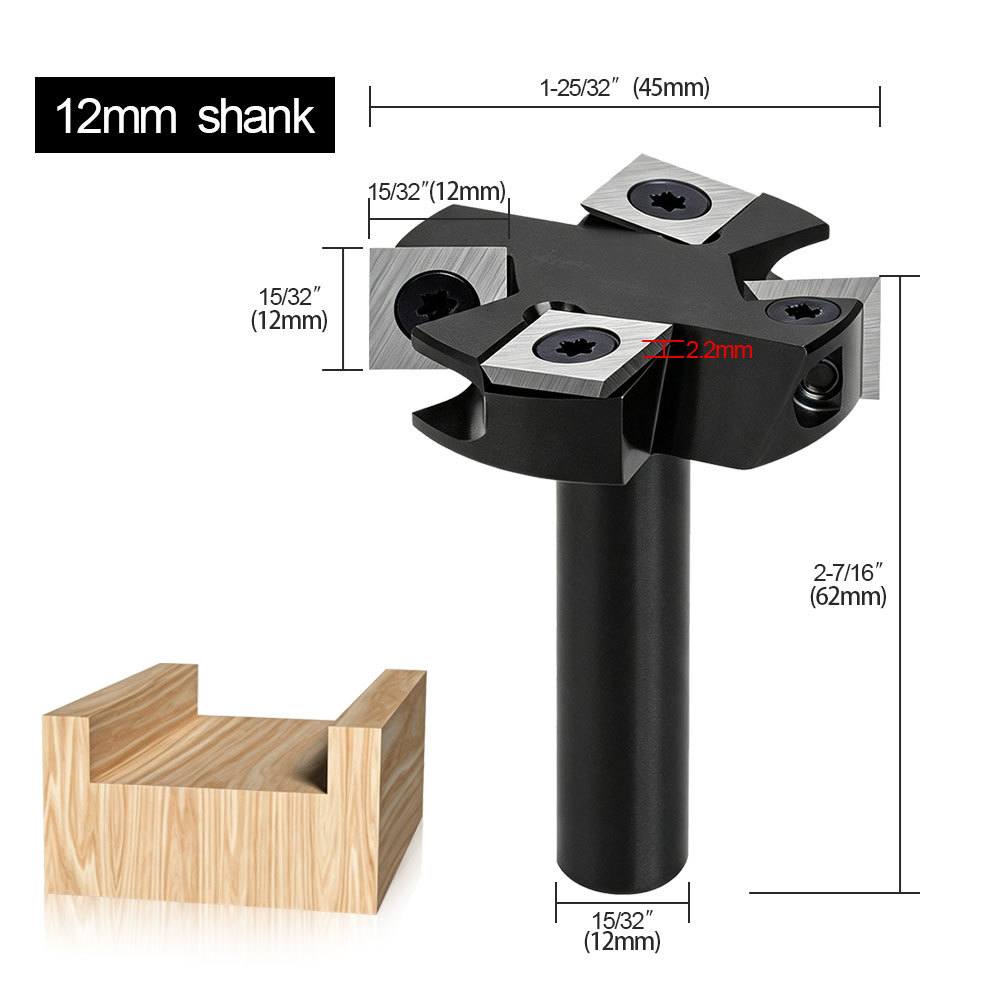

Product Dimensions
