High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable

Mining Industrial Electric Winch, Heavy Duty Wire Rope Winch for Mine Hoisting & Material Transportation

Product Description:

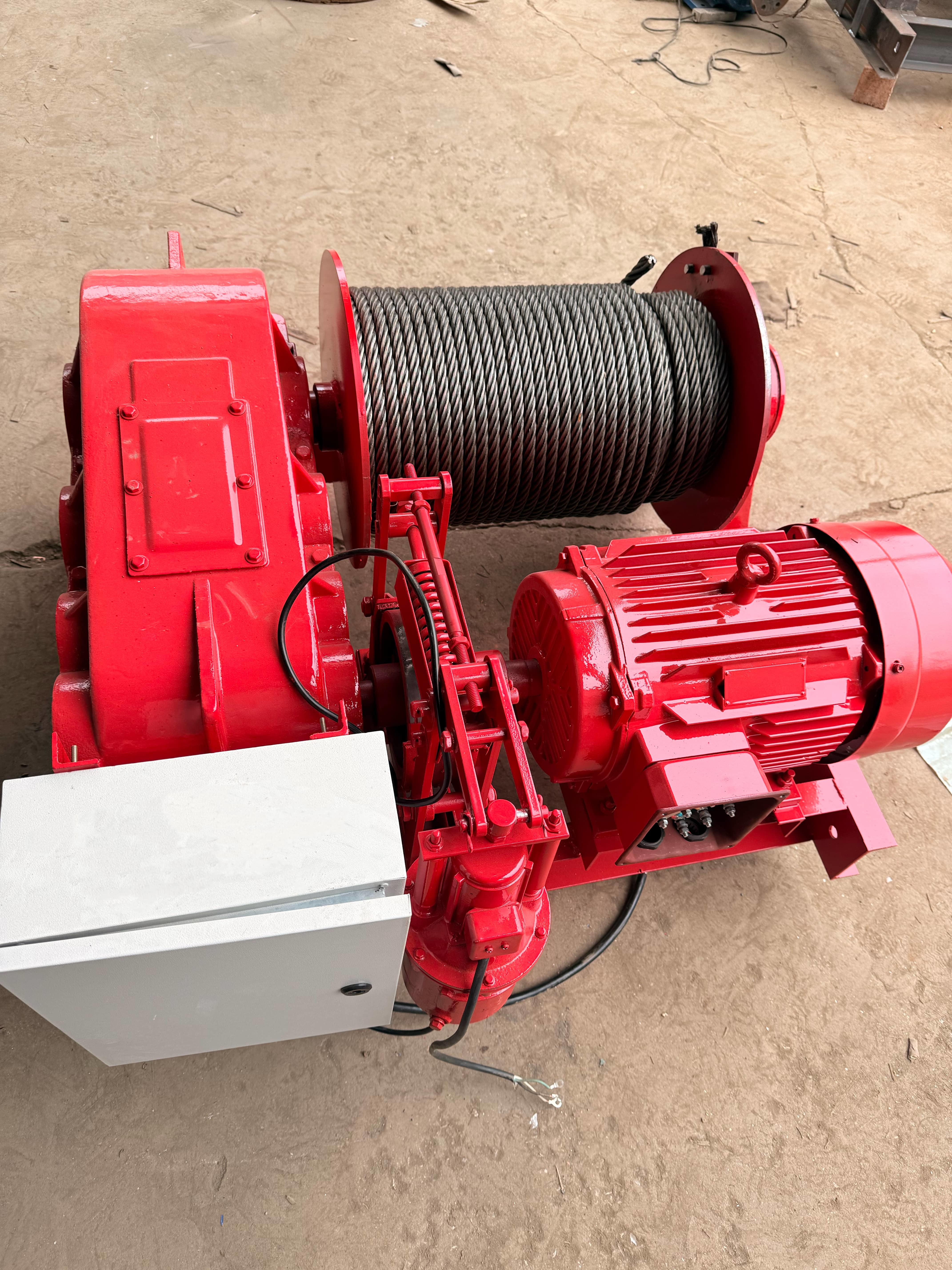

Mining electric winch is a heavy-duty industrial wire rope winding and traction equipment specially optimized for harsh and high-intensity working conditions in mining and engineering fields. Adopting a professional side large gear reducer layout, the winch delivers powerful torque output and maintains extremely stable operation even under continuous heavy-load conditions. The optimized gear transmission structure effectively reduces operating friction, improves working efficiency and extends the overall service life during long-cycle industrial tasks.

To ensure maximum operational safety, the machine is equipped with dual braking systems, including a main working brake and an auxiliary safety brake. The dual-protection design thoroughly eliminates load slipping, rope sliding and accidental falling risks during lifting and traction processes, greatly improving construction reliability in high-risk environments.

This heavy-duty winch is widely applicable for underground mine material transportation, tunnel excavation hoisting, quarry stone handling and large infrastructure construction projects. It can stably complete vertical lifting and horizontal traction of ores, building materials and heavy mechanical equipment. Various standard load capacities are available. Meanwhile, wire rope length, supporting power supply modes and operation control methods can be fully customized according to actual on-site working requirements.

Key Features:

Heavy Side-mounted Reduction Gearbox	Strong overload resistance, stable operation under heavy load.
Electromagnetic Safety Brake	Instant braking upon power failure to prevent load slipping and ensure operational safety.
Large Capacity Wire Rope Drum	Longer drum allows more wire rope winding, meets long-distance lifting & traction demands.
Heavy Welded Base Frame	Robust integral steel base, strong rigidity for stable installation under long-time heavy-duty work.

Technical Specifications:

Specification	Capacity (kg single cable / double cable)	Dia of cable	Lifting speed (single cable / double cable)	Power	Voltage
3Ton	1500kg / 3000kg	15mm	12m/ min	15KW	220V/380V
5Ton	2500kg / 5000kg	17.5mm	9m/ min	15KW	220V/380V
10Ton	5000kg / 10000kg	17.5mm	9m/ min	22KW	220V/380V

workshop:

Application Scenarios:

This heavy mining electric winch is professionally engineered to adapt to harsh and high-intensity industrial working environments. It is widely deployed in underground mines, tunnel excavation projects, stone quarries and large-scale construction sites. The winch undertakes vertical material lifting, heavy equipment retraction and horizontal heavy-load traction tasks. Featuring greater torque output and excellent overload resistance compared with ordinary straight-type winches, it fully meets the demands of long-duration, continuous heavy-duty mining and engineering operation.
