Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable

Categories	Wire Rope Electric Winch
Payment Terms:	T/T
Color:	Red, Blue, Yellow, Orange, Green, Black, Customized
Supply Ability:	80000 PCS/ YEAR
Safety Feature:	Power-off self-locking brake
Model Number:	CDK
Votalge:	220V/110V/124V/50HZ/60HZ/1PH
MOQ:	10 PCS
Delivery Time:	20 Work Days
Housing Material:	Aluminum Alloy
Price:	60USD
Motor:	Pure Copper Motor
Packaging Details:	PLY Wooden Case
Certification:	CE ISO
Lifting Capacity:	400kg -2500kg
Place of Origin:	HEBEI, CHINA
Lifting Height:	30m / 60m / 100m/Customized
Brand Name:	OEM
Product Name:	Aluminum Shell Electric Winch

Contact Now

Add to Cart

Company Info.

HEBEI WELDON LIFTING MACHINERY MANUFACTURING CO., LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

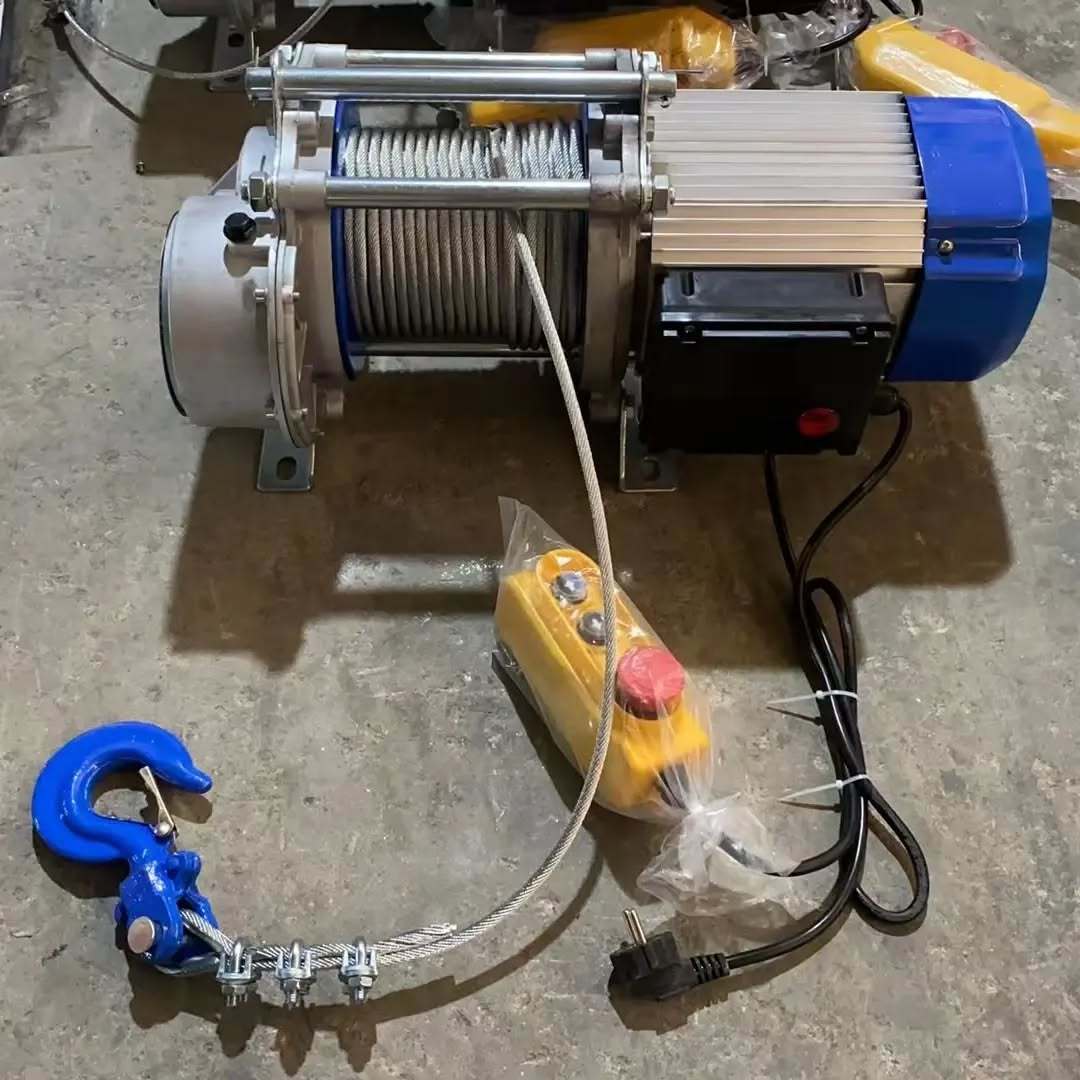

Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable

Lightweight Aluminium Housing Electric Winch, Portable Small Lifting Winch for Building Material Hoisting

Product Description:

Aluminum shell electric winch is a light-duty wire rope lifting machine. Equipped with aluminum alloy housing, it is lightweight with excellent heat dissipation, suitable for frequent short-time operation. Powered by 220V single-phase electricity. Built-in power-off self-locking brake prevents load slipping. Widely used for construction decoration, rooftop material transport and light cargo lifting in warehouses. Easy installation, customized wire rope length available.

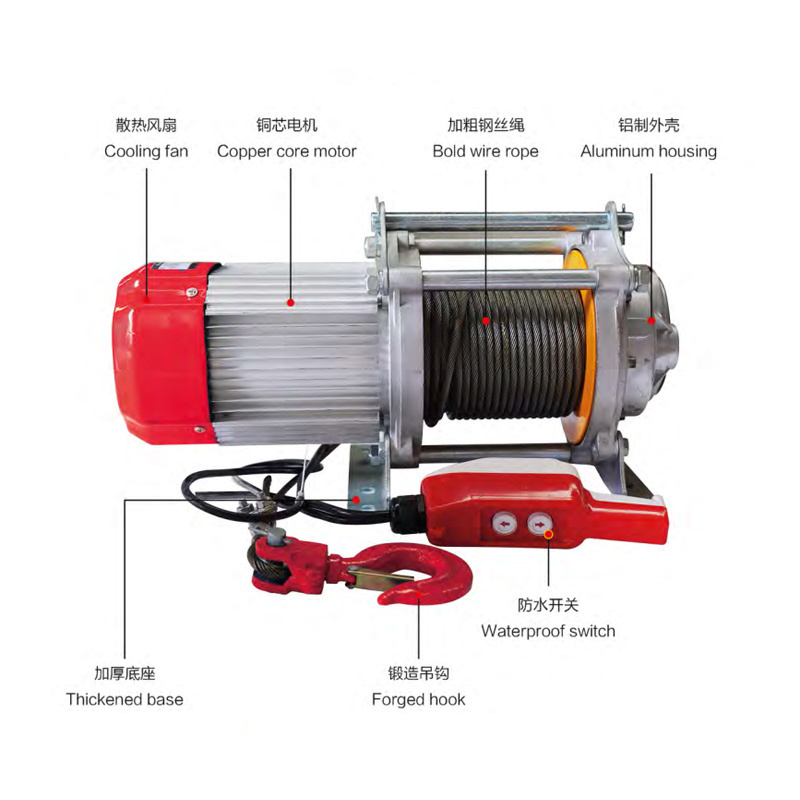

Product Features:

Aluminum Alloy Shell	Efficient heat dissipation, lightweight and corrosion resistant, easy to transport.
Power-off Self-locking Brake	Instant load locking upon power failure to avoid accidental load falling.
Portable & Simple Installation	Suspension mounting available, compact design for indoor and outdoor light lifting.
Multiple Specifications & Customizable	Various capacities optional; wire rope length and remote control can be customized.

Product Specifications:

Model	Wire rope length (m)	Capacity single rope / double rope (kg)	Dia of rope (mm)	Speed m/min Single hook / double hook slow speed type	Speed m/min Single hook / double hook fast type	Power
400-800kg	30	280kg / 560kg	6mm	14m/7m/min	20m/10m/	3KW
400-800kg	60	200kg / 400kg	6mm	14m/7m/min	20m/10m/	3KW
400-800kg	100	120kg / 240kg	6mm	14m/7m/min	20m/10m/	3KW
500-1000kg	30	350kg / 700kg	6mm	14m/7m/min	20m/10m/	3KW
500-1000kg	60	250kg / 500kg	6mm	14m/7m/min	20m/10m/	3KW
500-1000kg	100	150kg / 300kg	6mm	14m/7m/min	20m/10m/	3KW
750-1500kg	30	525kg / 1050kg	7mm	14m/7m/min	20m/10m/	4KW
750-1500kg	60	325kg / 750kg	7mm	14m/7m/min	20m/10m/	4KW
750-1500kg	100	225kg / 450kg	7mm	14m/7m/min	20m/10m/	4KW
750-1500kg	120	225kg / 450kg	7mm	14m/7m/min	20m/10m/	4KW
1250-2500kg	30	875kg / 1750kg	10mm	14m/7m/min	20m/10m/	5KW
1250-2500kg	60	625kg / 1250kg	10mm	14m/7m/min	20m/10m/	5KW
1250-2500kg	100	375kg / 750kg	10mm	14m/7m/min	20m/10m/	5KW
1250-2500kg	120	375kg / 750kg	10mm	14m/7m/min	20m/10m/	5KW

Application Scenarios:

This electric winch is widely used for exterior construction, decoration material delivery, rooftop goods transport and light lifting in shops and warehouses. Compared with PA mini electric hoist, aluminum shell provides better heat dissipation for frequent intermittent construction work.
