Waterproof IP65 10Pins Quick Lock Insert

Waterproof IP65 10Pins Quick Lock Insert

Waterproof IP65 10Pins Quick Lock Insert
Waterproof IP65 10Pins Quick Lock Insert
Categories Heavy Duty Rectangular Connector
Price: $4/$3.75/$3.5
Housings: H10B Series
Certification: UL,COC,CE,UKCA,SGS,EAC,RoHS
Package: Indivisual Packing in Box
Contacts Number: 10
Housing: H10B Series
Operatingtemperaturerange: -40°C to +125°C
Brand Name: ZJHK
Current Rating: 16A
Contact Type: Quick Lock
MOQ: 5pcs/30pcs/50pcs
Payment Terms: T/T
Place of Origin: China
Contact Material: Copper Alloy
Model Number: HE-010-MZ/HE-010-FZ
Delivery Time: 5~7 work days
Voltage Rating: 500V
Connector Type: Standard Connector
Contact Now
Company Info.
Zhejiang Haoke Electric Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Waterproof IP65 10Pins Quick Lock Insert

Waterproof IP65 10Pins Quick Lock Insert
The HE-010-MZ and HE-010-FZ are standard HE series connectors capable of connecting up to 48 cables simultaneously. With a rated current of 16A and operating voltage of 500V, these heavy-duty connectors reliably transmit high-current, high-voltage signals and data in harsh environments. The in-line design allows for pre-installation, making installation and removal easy—ideal for projects with tight deadlines.

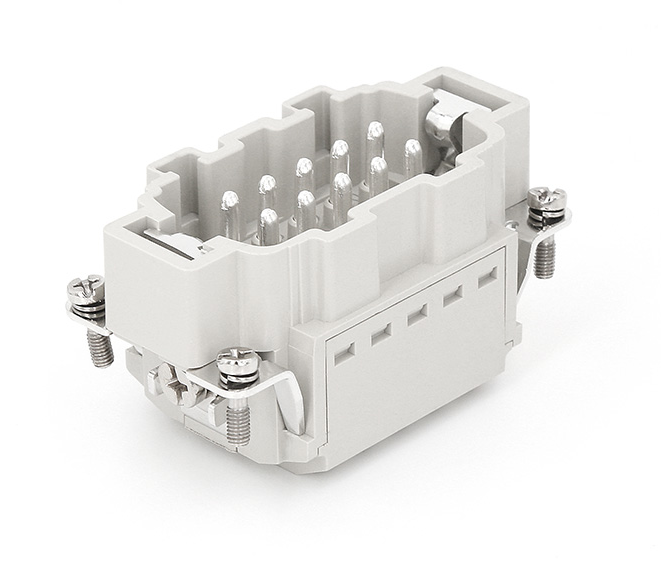

Waterproof IP65 10Pins Quick Lock Insert connector Close-up view of Quick Lock Insert connector
Technical Specifications
SpecificationsDIN EN 60 664
SpecificationsDIN EN 61 984
Termination MethodQuick Lock
Rated Current16A
Rated Voltage500V
Rated Impulse Voltage6kV
Pollution Degree3
Rated Voltage (UL/CSA)600V
Insulation Resistance≥10¹⁰Ω
MaterialPolycarbonate
Product Drawings
HE-010-MS
HE-010-MS technical drawing
HE-010-FS

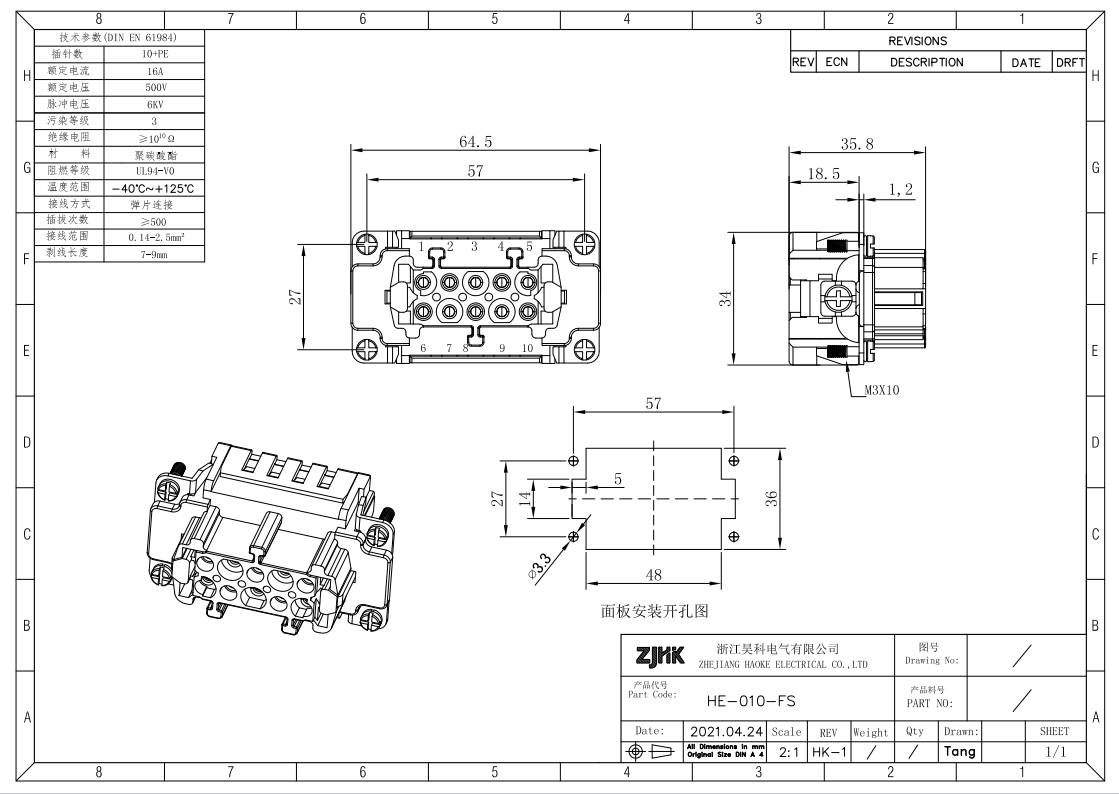

HE-010-FS technical drawing
Products Overview
Heavy-duty connector product overview
Heavy-duty in-line connectors offer convenient connection, allowing for manual insertion into PCBs without tools, saving wiring time. They utilize spring-loaded contacts for excellent vibration resistance and reliable connections. The compact design enables flexible installation anywhere on the PCB, saving space. With high protection ratings (IP65 or higher), they are suitable for harsh environments. Some models feature built-in test components for quick and easy testing.
Quick Lock Termination Connection Method

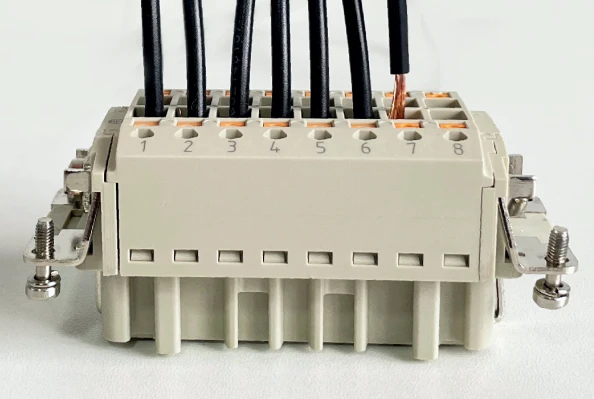

Quick Lock termination connection method diagram
For connection: Use a flat-blade screwdriver to insert into the square hole on the back of the ferrule to open the wiring port, then insert the wire. After removing the screwdriver, the spring clamp will securely clamp the cable. For direct-insert spring clamp connection: No tools required—simply insert the wire directly into the square wiring hole. To withdraw the wire: Use a screwdriver to press down the yellow pin while pulling out the wire.
Accessories

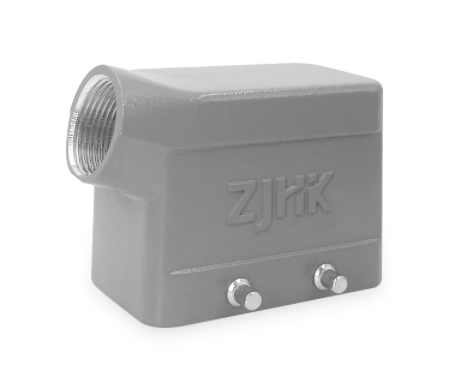

H10B-SE-4B accessory
H10B-SE-4B

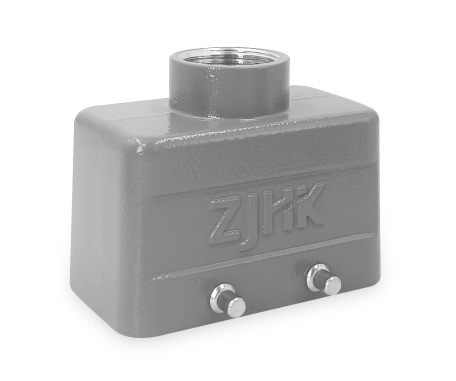

H10B-TE-4B accessory
H10B-TE-4B
H10B-BK-2L accessory
H10B-BK-2L
H10B-SF-2L accessory
H10B-SF-2L
Application Scenarios
Semiconductor equipment application scenario
Semiconductor equipment has extremely high requirements for operational stability, where any minor fault may lead to chip manufacturing failure and significant economic losses. The high reliability and superior protection performance of heavy-duty connectors effectively prevent equipment failures caused by connection issues. Anti-vibration and anti-shock performance ensure connections remain secure even under external disturbances. The IP65 protection rating prevents dust and moisture ingress, avoiding contact corrosion and short circuits, thereby enhancing semiconductor equipment reliability and stability while ensuring production continuity and product quality.
