Laboratory Jaw Crusher Machine for Mining Ore Crushing
Y&X Laboratory Jaw Crusher is specially designed for crushing
various mineral ores and rock samples in mining laboratories,
geological laboratories and research institutions. Adopting a
double-toggle jaw crushing structure, this machine provides strong
crushing force, stable performance and uniform particle size.
The equipment features a reasonable structure, adjustable discharge
size, reliable operation, low noise and easy maintenance. It is an
ideal crushing solution for mineral sample preparation, laboratory
testing and small-scale material processing.
Main Features
- Strong Crushing Performance - High-strength crushing chamber provides efficient crushing
capability for different types of ores and rocks.
- Adjustable Output Size - The discharge opening can be adjusted according to different
testing requirements.
- Stable & Reliable Operation - Optimized structure ensures smooth running, low vibration and
long service life.
- Wide Application Range - Suitable for mining, metallurgy, geology, mineral processing
laboratories and scientific research.
- Easy Maintenance Design - Compact structure allows convenient operation and maintenance.
Technical Parameters
| Model | SZ100×60 | SZ100×100 | SZ125×100 |
|---|
| Jaw Plate Material | High Chromium Alloy | High Chromium Alloy | High Chromium Alloy |
| Feeding Size | ≤50 mm | ≤80 mm | ≤80 mm |
| Discharge Size | 5-15 mm Adjustable | 6-25 mm Adjustable | 8-35 mm Adjustable |
| Capacity | 45-550 kg/h | 60-850 kg/h | 300-2000 kg/h |
| Crushing Speed | 600 r/min | 600 r/min | 600 r/min |
| Motor Power | 2.2 kW | 2.2 kW | 3 kW |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Dimension | 700×570×1250 mm | 700×570×1250 mm | 700×570×1250 mm |
| Weight | Approx. 250 kg | Approx. 255 kg | Approx. 260 kg |

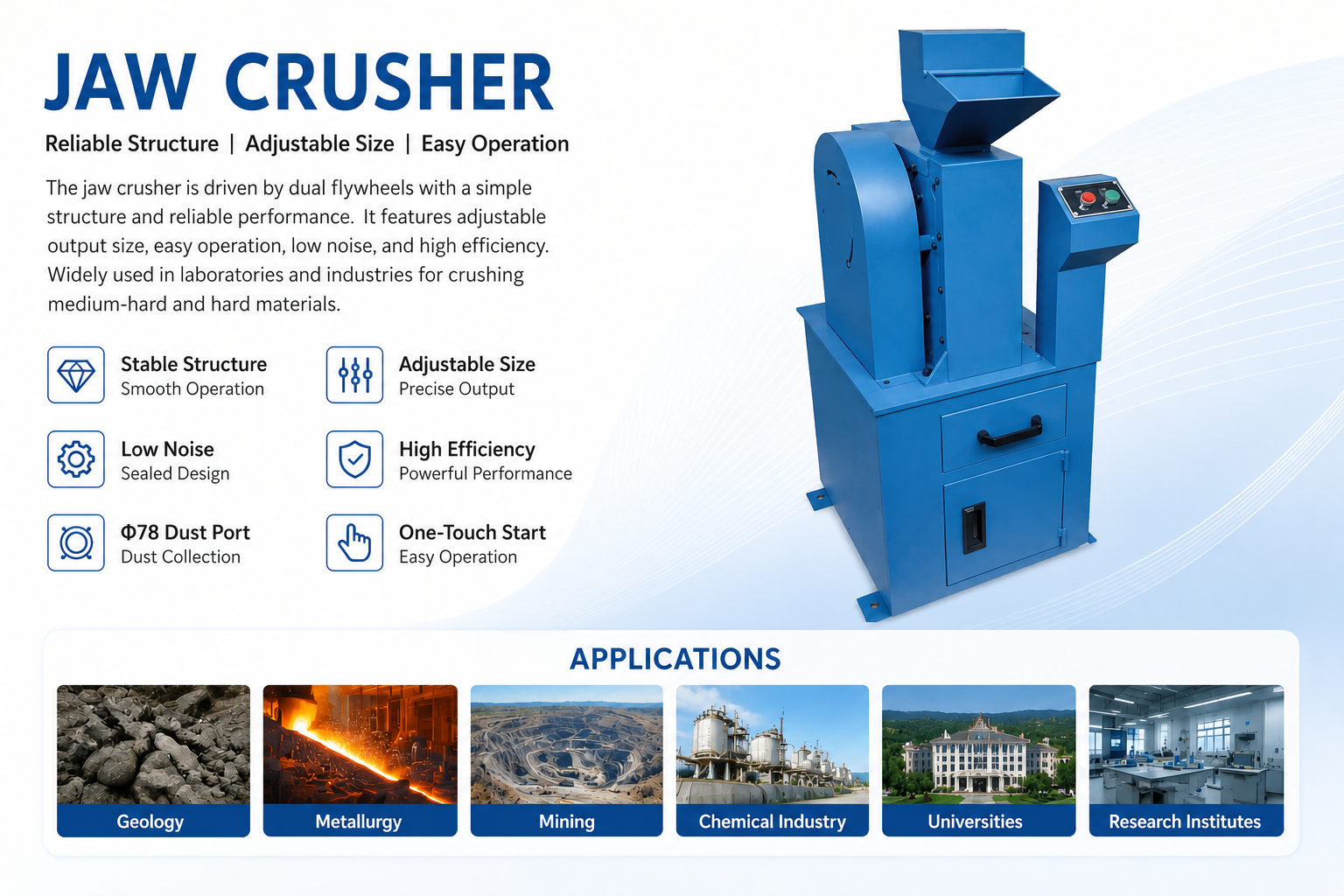

Applications
- Mining laboratory sample preparation
- Geological exploration testing
- Mineral processing experiments
- Metallurgical research
- Ore crushing before grinding
- Rock and stone analysis
- University and research institute laboratories
Why Choose Y&X Laboratory Crusher?
12+ Years Experience in Mining Laboratory Equipment
Y&X provides complete solutions for mining laboratories,
including crushing, grinding, flotation, screening and mineral
testing equipment. With practical experience from mineral
processing laboratories and mine sites, Y&X understands
customers' testing requirements and provides reliable equipment
selection and technical support.
Frequently Asked Questions
What materials can this jaw crusher crush?
This laboratory jaw crusher can crush various ores, rocks and
mineral samples, including gold ore, copper ore, iron ore,
lead-zinc ore and other geological samples.
Can the output particle size be adjusted?
Yes. The discharge size can be adjusted according to different
laboratory testing requirements.
Is this crusher suitable for mining laboratories?
Yes. It is designed for mineral sample preparation and widely used
in mining companies, geological laboratories and research
institutions.
What power supply does the machine require?
Standard power supply is three-phase 380V/50Hz. Customized voltage
is available according to customer requirements.
