Environmental Protection Disc Pulverizer Machine for Mining
Laboratory Sample Grinding
The Φ200 Environmental Protection Disc Pulverizer is a
high-performance laboratory grinding equipment designed for mineral
sample preparation. With a compact structure, easy operation and
reliable performance, this disc pulverizer adopts a closed grinding
system to reduce dust pollution and improve working conditions.
The grinding chamber is designed for efficient crushing and fine
grinding, providing uniform particle size for laboratory analysis.

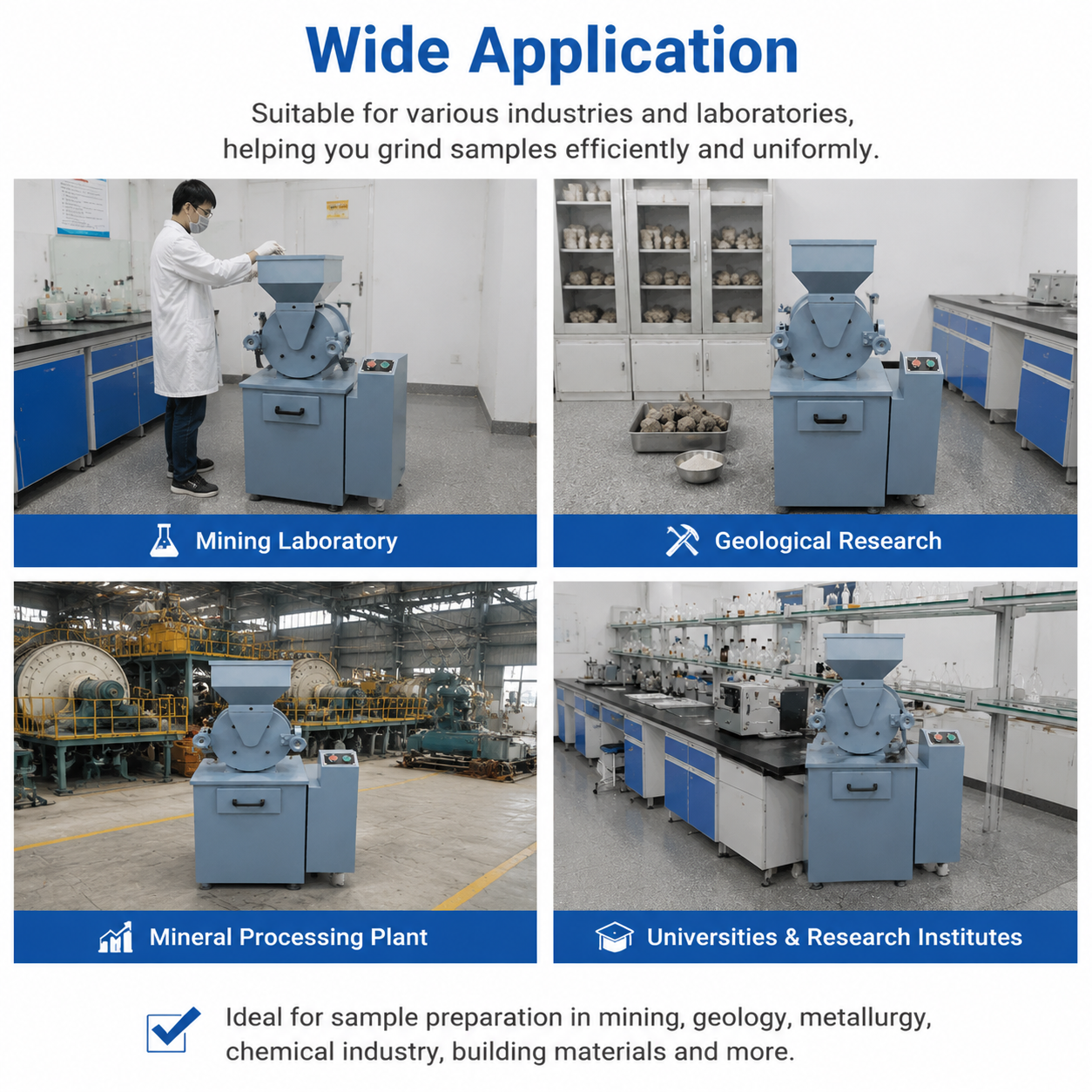

It is widely used for preparing samples in mining, geology,
metallurgy, chemical industry, building materials, cement plants,
universities and research institutes.
The equipment is suitable for grinding various mineral samples
before flotation tests, chemical analysis, XRF analysis and other
laboratory testing processes.
Main Advantages
- High grinding efficiency and stable performance
- Low noise and reduced dust generation
- Easy feeding and convenient operation
- Uniform particle size output
- Compact design suitable for laboratory use
- Suitable for various mineral sample preparation applications
Technical Specifications
| Parameter | Model Φ200 | Model Φ250 |
|---|
| Disc Diameter | Φ200 mm | Φ250 mm |
| Feed Size | ≤8 mm | ≤8 mm |
| Output Size | 80-200 mesh | 80-200 mesh |
| Grinding Material | High manganese steel | High manganese steel |
| Vertical Shaft Speed | 466 rpm | 466 rpm |
| Grinding Capacity | 30 kg/h | 50 kg/h |
| Motor Power | 3 kW | 3 kW |
| Power Supply | Three phase, 380V, 50Hz | Three phase, 380V, 50Hz |
| Equipment Weight | 200 kg | 230 kg |
Applications
Mining Industry
- Gold ore sample preparation
- Copper ore testing
- Iron ore analysis
- Lead-zinc ore laboratory testing
Laboratory Applications
- Geological laboratories
- Mineral testing centers
- Metallurgical laboratories
- Universities and research institutes
Industrial Applications
- Cement industry
- Building materials industry
- Chemical industry
Safety Operation Instructions
To ensure safe operation and extend the service life of the
equipment, please follow the safety instructions below.
Qualified Operators
Only trained personnel should operate the machine. Operators must
carefully read and understand the instruction manual before use.
Never Service While Running
Do not adjust, clean, lubricate, or repair the machine while it is
operating. Always switch off the power supply and wait until all
moving parts have completely stopped before performing any
maintenance.
Proper Electrical Protection
The machine must be properly grounded. Electrical cables should be
installed in insulated conduits. It is recommended to install a
residual current device (RCD) or leakage protection device
according to the operating environment.
Overload Protection
To prevent motor overheating or equipment damage caused by
overloading, an overcurrent protection device should be installed
based on the operating frequency and the characteristics of the
processed materials.
Inspect Safety Devices
Before each operation, check that all electrical protection
devices, safety guards, and protective covers are in good condition
and functioning properly. Any potential hazards must be eliminated
before starting the machine.
Packing
- Standard Export Plywood Case
- Shockproof Foam Protection
- Suitable for Ocean Shipping
- Suitable for Air Freight
- Suitable for Land Transportation
Why Choose This Disc Pulverizer?
Efficient Sample Preparation
Quickly grinds mineral samples into fine powder suitable for
laboratory analysis.
Reliable Grinding Performance
High manganese steel grinding components provide good wear
resistance and long service life.
Laboratory-Friendly Design
Compact structure, simple operation and low maintenance
requirements.
Wide Application Range
Suitable for different mineral samples including metallic ores and
non-metallic materials.
Frequently Asked Questions
What is the maximum feeding size of this disc pulverizer?
The maximum feeding size is ≤8 mm.
What particle size can the machine produce?
The output particle size is 80-200 mesh.
What industries use this equipment?
It is widely used in mining laboratories, geology, metallurgy,
cement and research institutes.
What is the capacity of Φ200 disc pulverizer?
The grinding capacity is about 30 kg/h.
