Name: FBJC PLC Controlled HighSpeed Automatic Paper Bowl Lunch Box Making Machine
Brand: PRINTYOUNG
Price: 8000 USD

Home > Agriculture Machinery & Equipment >

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine

Categories	Paper Processing Machinery
Working Air Source:	air pressure 0.4 ~ 0.5 MPa (need to buy compressor)
MOQ:	1 Set
Maximum Size:	350 * 450 mm
Total Weight:	0.8 T
Total Power:	4 kw
Certification:	CE
Supply Ability:	30 Sets per Month
Overall Dimension:	1500 * 1300 * 2000 mm
Model Number:	FBJ-C
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Brand Name:	PRINTYOUNG
Place of Origin:	China
Payment Terms:	L/C, T/T
Max. Paper Convey Width:	240 mm
Suitable Material:	100 ~ 400 g/m² PE (PE coated paper)
Delivery Time:	30 work days
Production Capacity:	35 ~ 45 times/min
Price:	USD 8000 Set

Contact Now

Add to Cart

Company Info.

Shanghai Printyoung International Industry Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

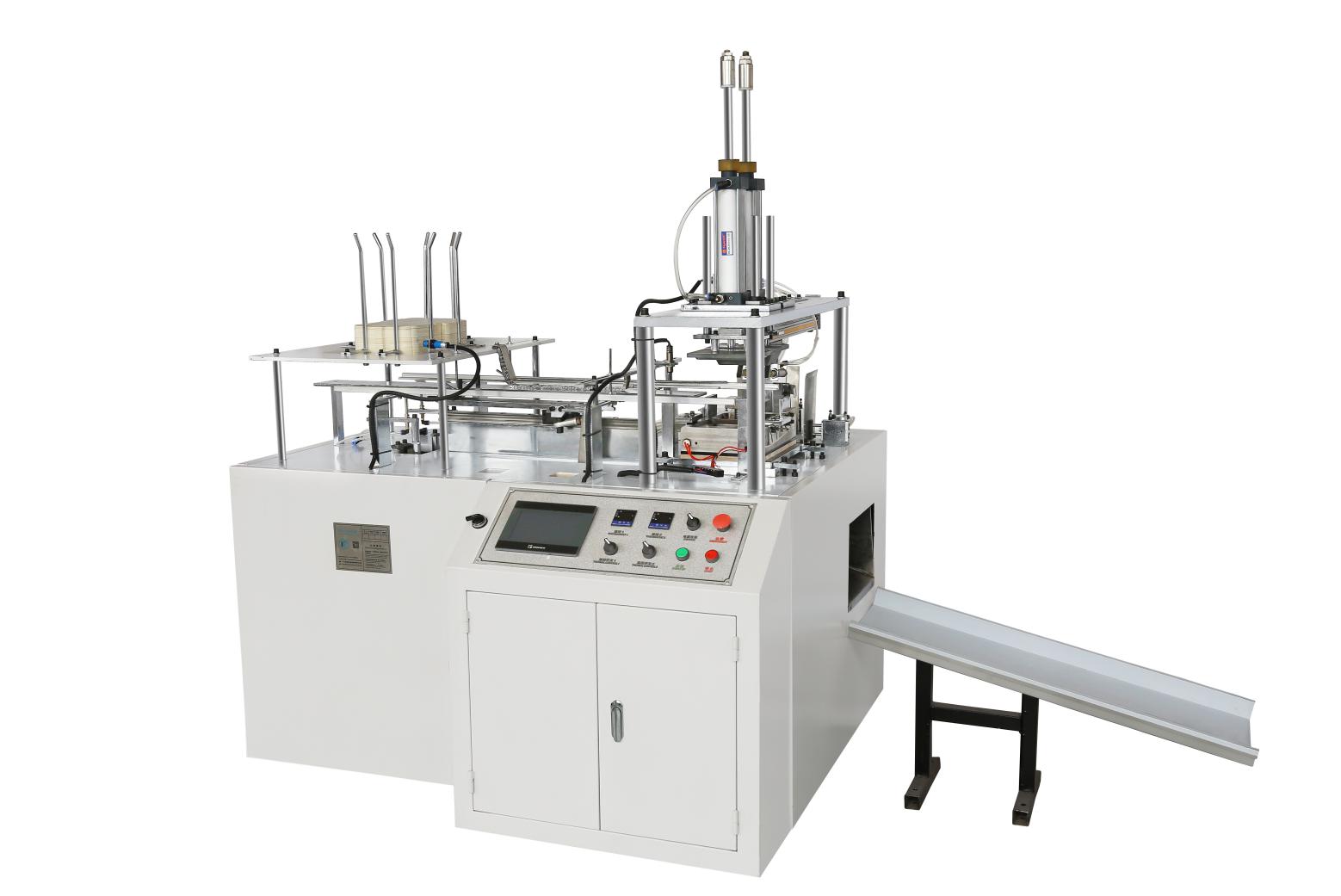

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine

FBJ-C Automatic Paper Bowl Making Machine

Technical Parameters

Type	FBJ-C
Production Capacity	35 ~ 45 times/min
Maximum Size	350 * 450 mm
Max. Paper Convey Width	240 mm
Suitable Material	100 ~ 400 g/m² PE (PE coated paper)
Total Power	4 kw
Total Weight	0.8 T
Overall Dimension	1500 * 1300 * 2000 mm
Working Air Source	air pressure 0.4 ~ 0.5 MPa (need to buy compressor)

Configuration

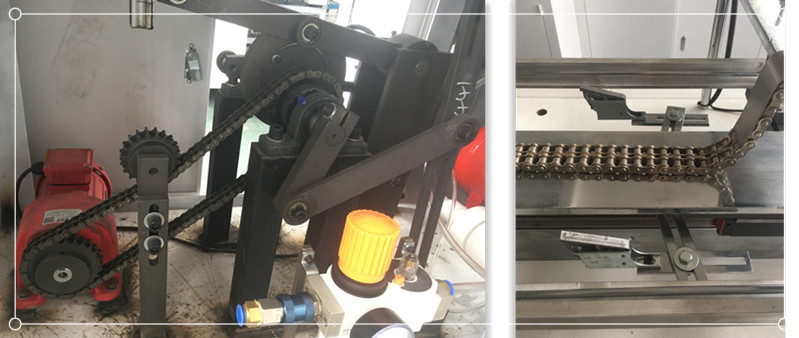

Paper passing and paper suction through mechanical transmission,high speed,energy saving,stability,easy operation.

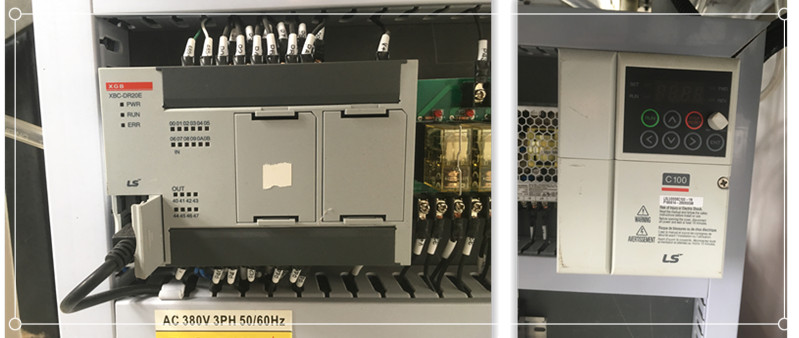

Mechanical operated by microcomputer control and detection,the main electrical control system is imported products,stable and durable.

The automatic paper forming equipment has the advantages of high speed and convenient operation.This model uses a self-contained hot air generator for single PE coated paper. Imported Parker rodless cylinders are used.The clamping cylinders are imported UNIQUC cylinders.The mechanical movement is smooth and accurate,and the collector has the function of collecting and counting.

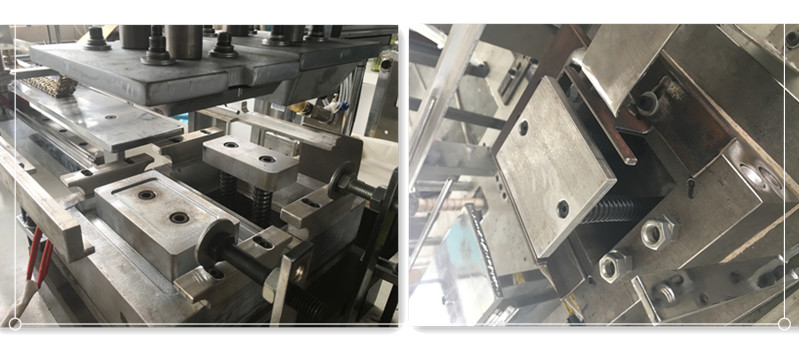

The equipment installation molds are all made of aluminum alloy molds,which are processed by computer milling and wire cutting to ensure the precision of the mold, improve the molding quality of the products,and prolong the life of the mold.The aluminum alloy material has fast heat conduction and reduces heat loss,while the temperature control switch stabilizes the mold temperature,saving energy.

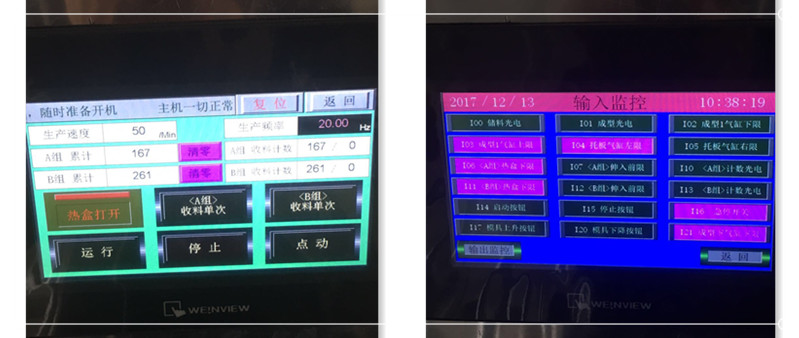

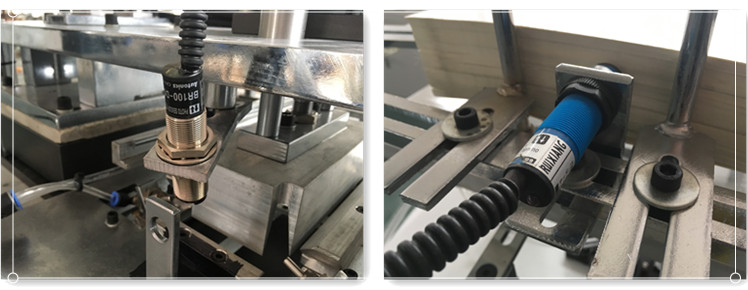

The working speed of the equipment is currently 50 times/minute.It is the leading domestic level.It has automatic systems such as feeding monitoring,paper feeding monitoring,molding monitoring,collection monitoring,etc.if appear fault machine will stop and alarm.

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
