| Categories | PVC Price Tag Holder Extrusion Line |
|---|---|
| Model Number: | LB-65/28 |
| Inverter: | ABB |
| MOQ: | 1 SET |
| Delivery Time: | 30 WORKING DAYS |
| Warranty: | 18 months |
| Payment Terms: | L/C,T/T |
| COLOUR: | CUSTOMIZED |
| Automatic grade: | Full-automatically |
| Price: | USD EUR |
| APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz or customized |
| Supply Ability: | 15 SETS PER MONTH |
| EXTRUDER'S POWER: | 45KW |
| Packages: | Film and boxes |
| Certification: | CE ISO9001 |
| Pipe Application: | Water Supply |
| Place of Origin: | ZHANGJIAGANG, JIANGSU |
| Screw diameter: | 65/28 |
| Packaging Details: | NORMAL PACKAGE |
| Brand Name: | LB |
| Color: | Customizable |
| Raw material: | PVC Powder |
| Company Info. |
| Zhangjiagang Langbo Machinery Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
PVC Price Tag Holder Extrusion Line is an extrusion system designed for producing PVC price tag holders, shelf label strips, and other plastic profiles. The line uses a single screw extruder and PVC granules as raw material, forming continuous profiles with fixed cross-section structures for retail display and product identification applications.
PVC granules are fed into the single screw extruder, where the
material is plasticized and mixed through controlled heating and
screw conveying. The molten PVC passes through a customized profile
die for extrusion forming, followed by vacuum calibration and
cooling to maintain the required profile dimensions. The haul-off
unit provides continuous movement, and the cutting unit completes
fixed-length cutting.
Processing flow:
PVC Granules → Single Screw Extrusion → Profile Die Forming →
Vacuum Calibration & Cooling → Haul-off → Cutting → Stacker
PVC Price Tag Holder Extrusion Line produces profiles mainly used for:
| extruder model | SJ45.SJ55 |
| vacuum forming table length | 2-6 meters |
| haul off speed(m/minute) | 0-20 meters |
| cutting motor | 0.75KW |
| vacuum pump(kw) | 2.2-5.5 |
| water pump(kw) | 0.37 |

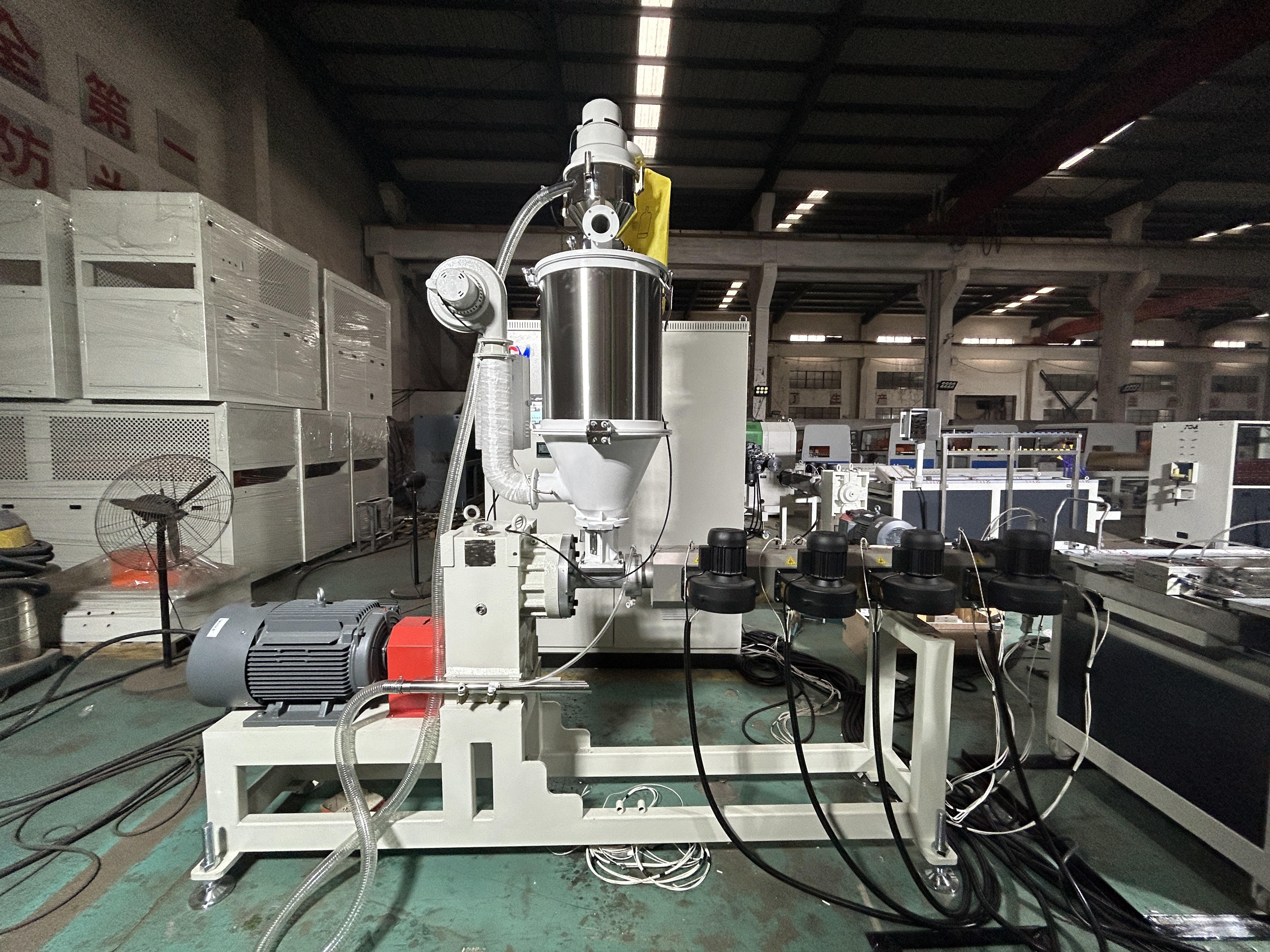

Single screw extruder machine:The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Mould:The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect. It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

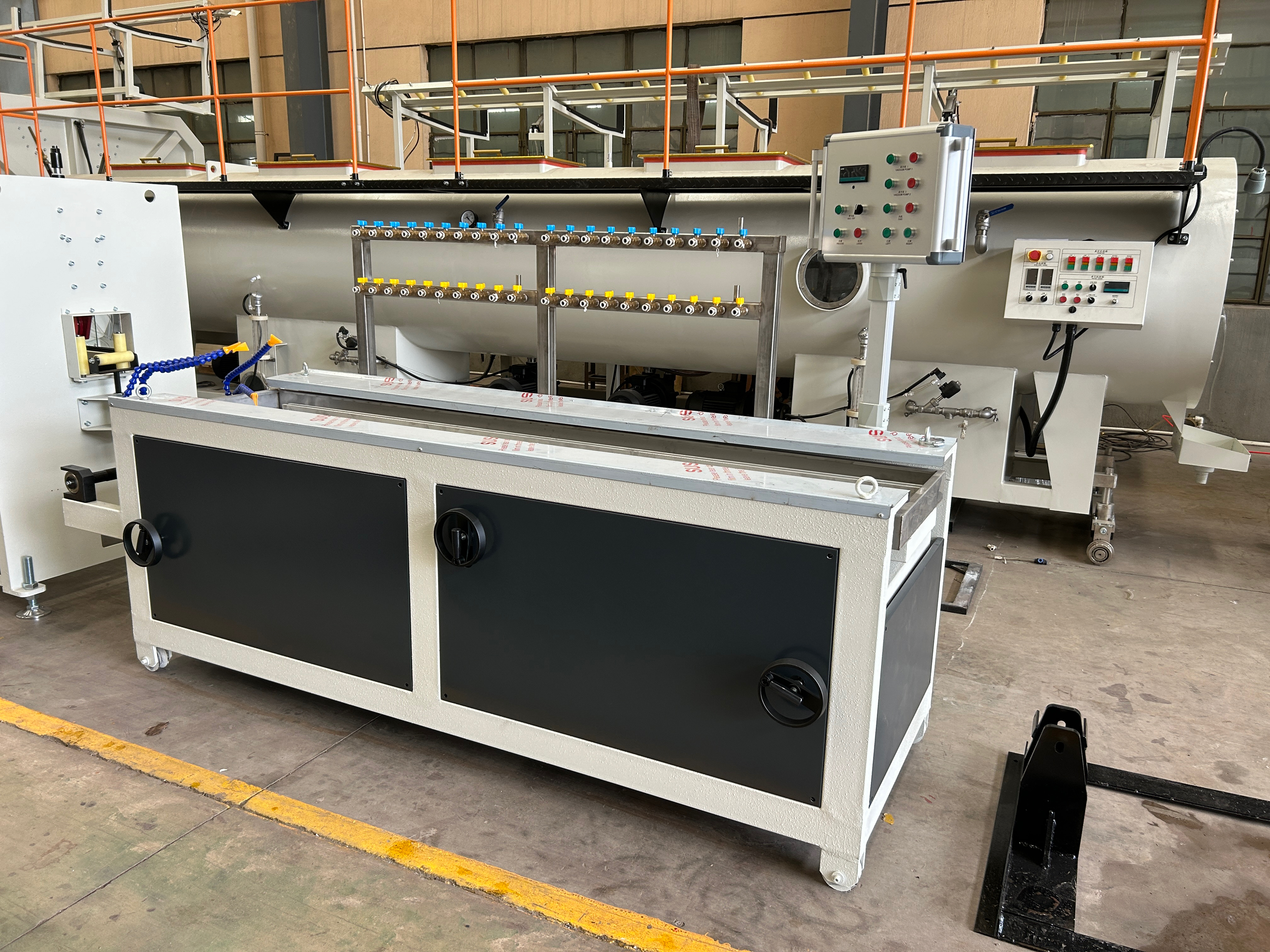

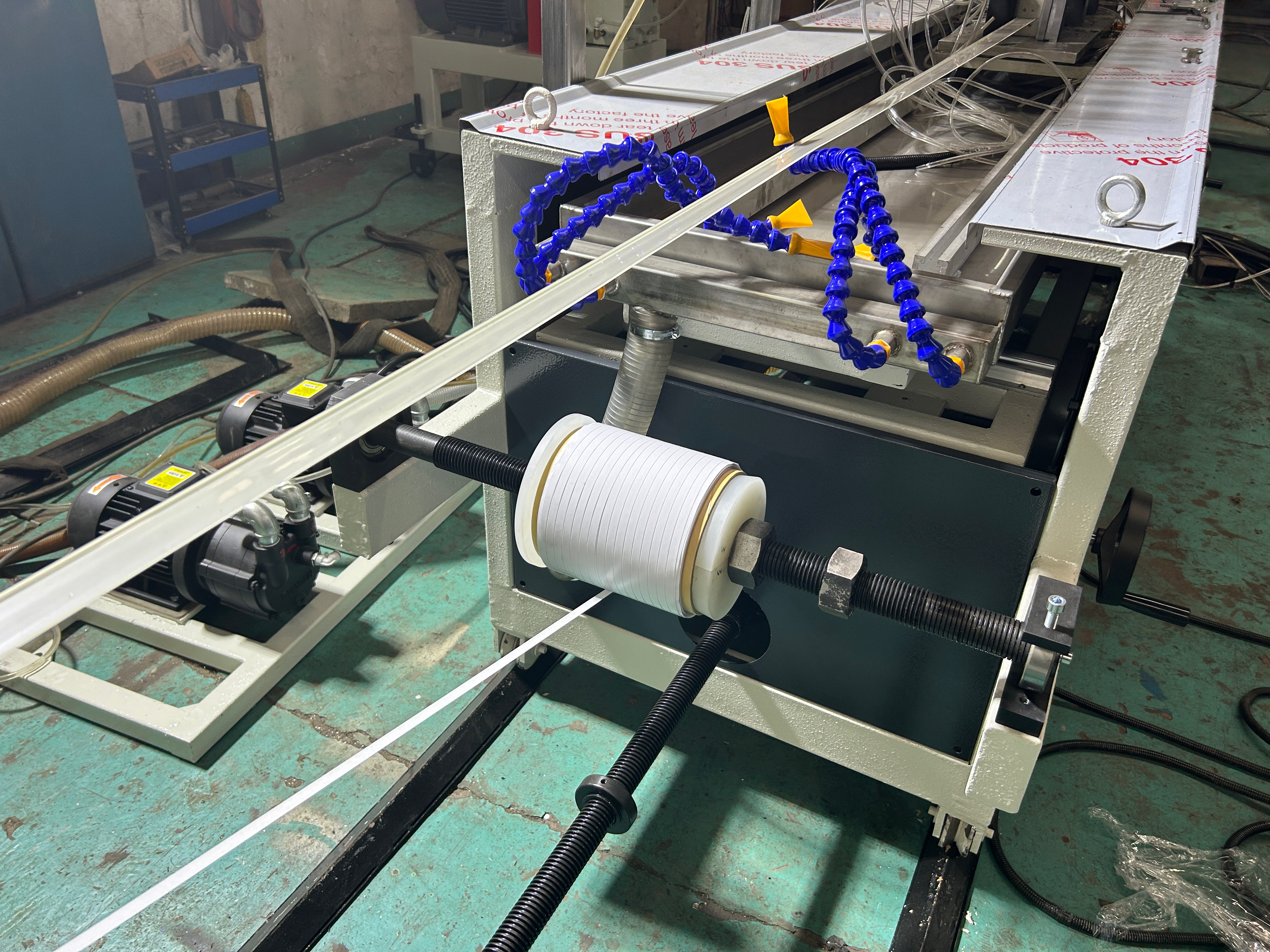

Calibration table:The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system.

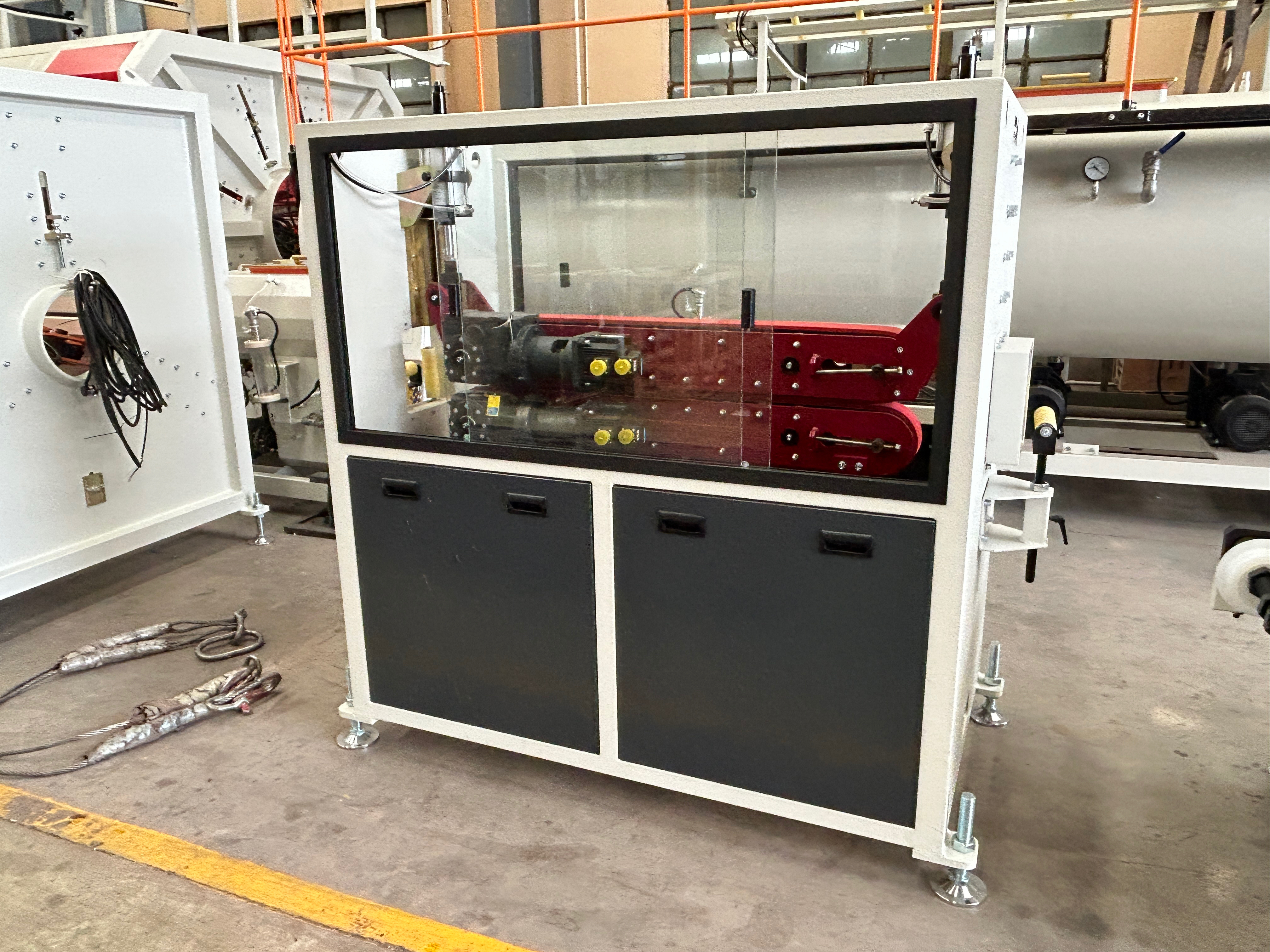

Haul-off Unit:The force distribution along each belts has sufficient hauling force. We offer good-quality bellt for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.
Cutter unit:Two kinds of cutting way including swarfless and saw cutting are available for customization.

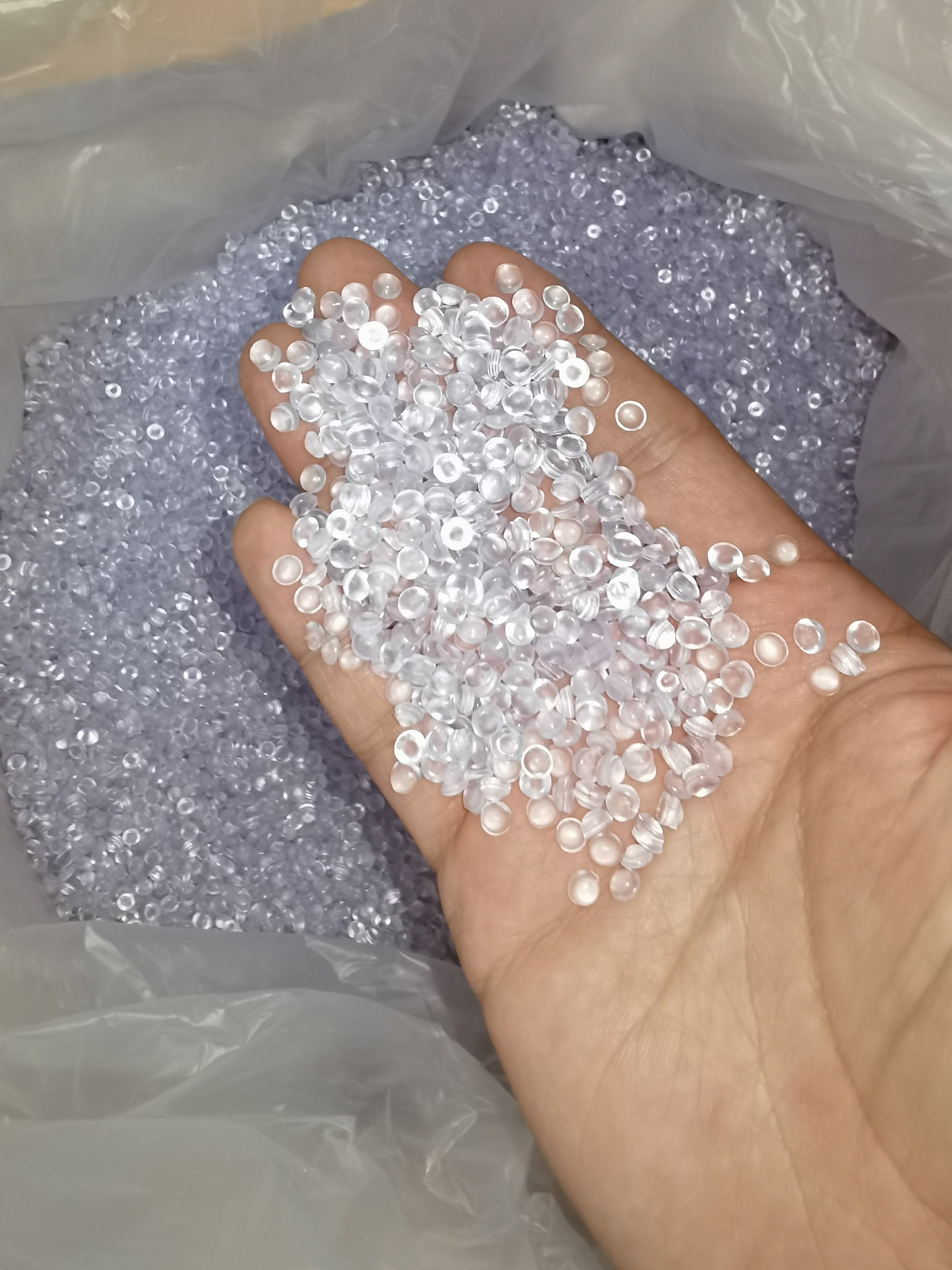

Raw material
|
