Plastic Production Line Pvc Electrical Conduit Pipe Manufacturing Machine

Categories PVC Pipe Extrusion Line
Model Number: LB-65/132
Feeding Mode: Large Spiral Feeder
Gearbox: Deling
MOQ: 1 SET
Delivery Time: 30 WORKING DAYS
Extrduer: SJSZ 65/132 conical twin screw extruder
Delivery time: 45 Days
Payment Terms: L/C,T/T,D/P,D/A,Western Union
Screw Concept: conical twin screw
Cuttingsystem: Planetary cutter
Price: USD EUR
Screw Diameter: 65/132
Automatic Grade: full Automatic
Cooling: Vacuum and water cooling
Supply Ability: 15 SETS PER MONTH
Product Type: PVC Pipe
Cutting Type: Planetary Cutting
Motor: Beide
Output Capacity: 800kg/H
Certification: CE ISO9001
Warranty: 2 YEARS
Place of Origin: ZHANGJIAGANG, JIANGSU
Control: PLC
Packaging Details: NORMAL PACKAGE
Brand Name: LB
Machine Color: White
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plastic Production Line Pvc Electrical Conduit Pipe Manufacturing Machine

Plastic Production Line Pvc Electrical Conduit Pipe Manufacturing Machine

Product Overview

Our PVC double-wall corrugated pipe production line incorporates advanced patented technologies for superior performance and efficiency. The system features high-efficiency single screw extruders for PVC and large flat/cone double extruders with substantial extrusion capacity.

Key Applications
  • Urban drainage and sewage engineering
  • Agricultural irrigation systems
  • Sand control engineering projects
  • Low-pressure water supply systems
  • Municipal drainage infrastructure
  • Wire and cable buried jacket protection
Production Process
  1. PVC powder + additive mixing
  2. Material feeding system
  3. Twin screw extrusion
  4. Molding and calibration
  5. Vacuum and cooling tank
  6. Spray cooling system
  7. Haul-off mechanism
  8. Cutting to length
  9. Discharge rack or pipe belling
Technical Specifications
ModelPipe Diameter (mm)Extruder ModelMotor Power (KW)
LB-32F16-32 (Four Pipe)SJSZ65/13237 AC
LB-32E16-32 (Double Pipe)SJSZ51/10522 AC
LB-32W16-32 (Double Pipe)SJSZ65/13237 AC
LB-40E16-40 (Double Pipe)SJSZ51/10522 AC
LB-40W16-40 (Double Pipe)SJSZ65/13237 AC
LB-50E16-50 (Double Pipe)SJSZ51/10522 AC
LB-50W16-50 (Double Pipe)SJSZ65/13237 AC
LB-63W16-63 (Double Pipe)SJSZ65/13237 AC
Technical Features
  • Advanced double screw extruder with high screw speed and superior plasticizing capacity
  • Vacuum shaping devices with stainless steel water contact components
  • Dual claw-type or rubber belt crawler traction systems
  • Dust-free rotating knife cutting technology
  • PLC computer-controlled operation
  • Online double-layer flaring capability
Delivery & Service Information

Delivery: 30 days after order confirmation

Warranty: 12 months comprehensive coverage

Payment: T/T 30% advance, 70% before delivery

Packing: Standard export wooden cases

Our Service Commitment
  • One-year guarantee for complete machine
  • 24/7 technical support availability
  • Overseas installation and commissioning services
  • Comprehensive maintenance guidance and spare parts
  • Operator training programs
Product Images

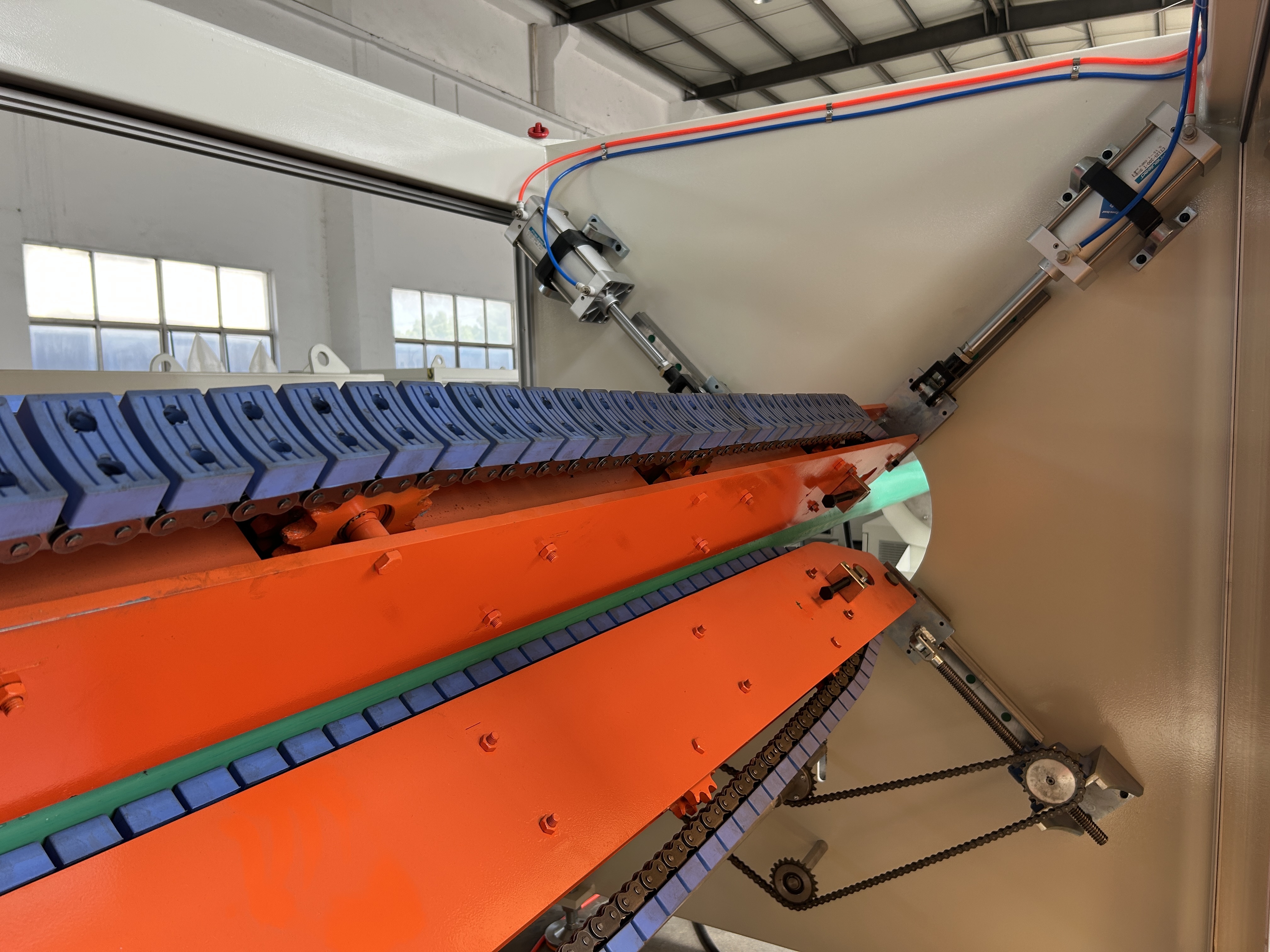

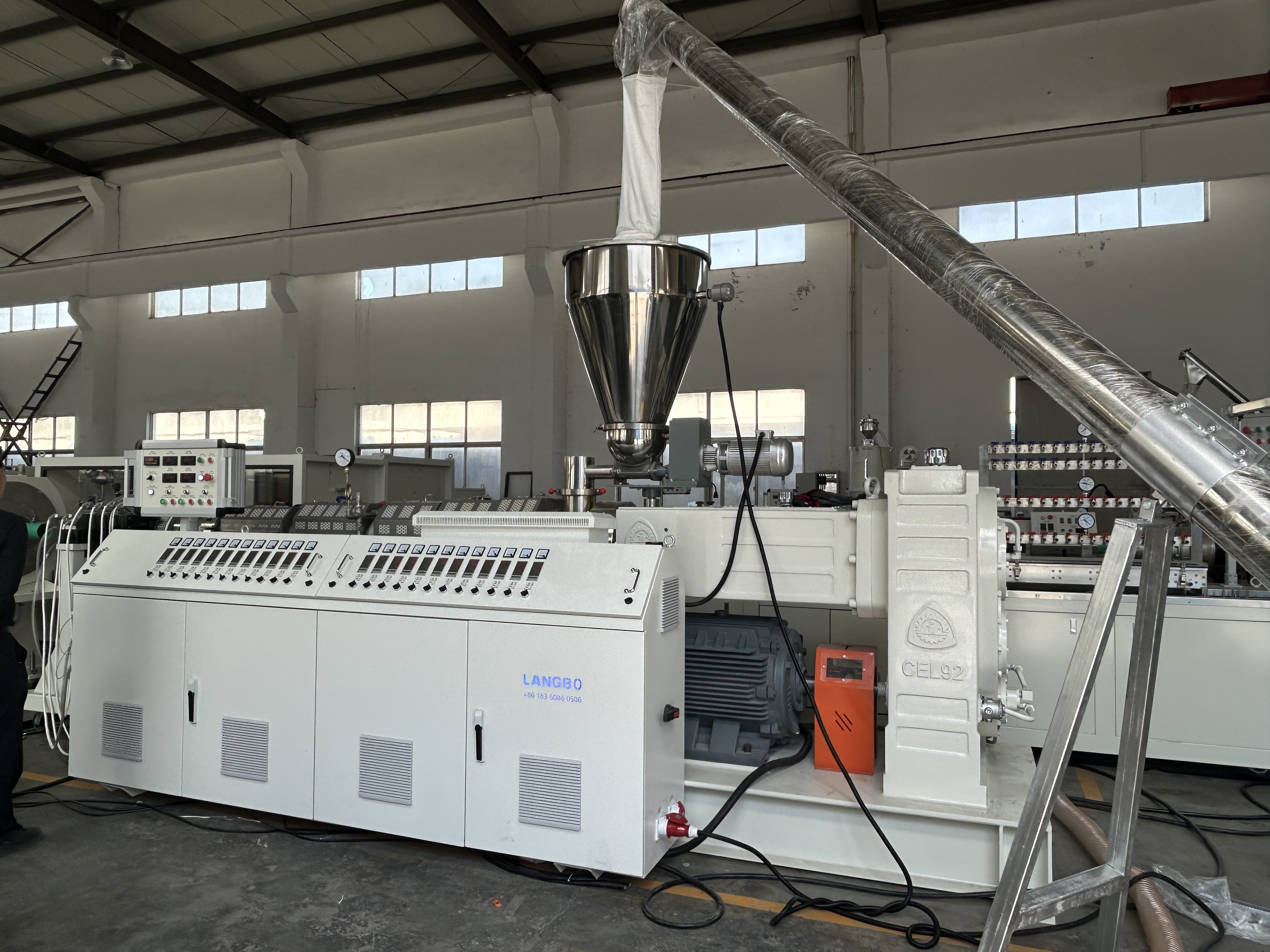

PVC pipe production line overview showing complete extrusion system Close-up view of extrusion system components and mechanisms Pipe cutting mechanism and automated control system Finished PVC pipe samples showing quality and dimensional consistency
