LED Electron Fluorescence Digital Microscope XYL-166Y

LED Electron Fluorescence Digital Microscope XYL-166Y

LED Electron Fluorescence Digital Microscope XYL-166Y
LED Electron Fluorescence Digital Microscope XYL-166Y
Categories Microscope
Brand Name: CenLee
dimension: 100*100cm(39.37*39.37in)
Model Number: XYL-166Y
customized support: OEM
Certificate: CE ISO
Drawtube: Trinocular
Theory: Fluorescence Microscope
Material: Metal
Price: $955-1,109 / set
Name: XYL-166Y Fluorescence Trinocular Microscope
type: Trinocular Microscope, Digital Microscope, Fluorescence Microscope
Place of Origin: Hunan, China
MOQ: 1 set
Contact Now
Company Info.
Changsha CenLee Technology Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

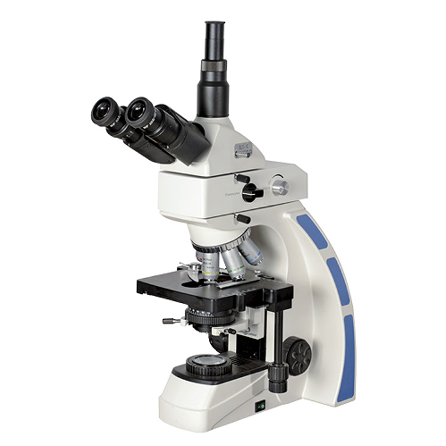

LED Electron Fluorescence Digital Microscope XYL-166Y

High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various
application fields. It is widely used, from daily work to scientific research,in laboratory, hospital and college. Because of higher cost performance and reasonable humanized design, it becomes the first choice of individual, hospital and scientific research organization.
Specification

Model



XYL-166Y1
XYL-166Y2
Optical system
infinite optical system
●
●
Viewing Head
Compensation Free trinocular Head inclined at 30°
interpupillary distance adjustable 48mm-75mm
●
●
Eyepiece
Wide field Plan WF10X/22mm
●
●
Objective
infinite Plan objective
4X0.10 , 10X/0.25, 40X/0.65, 100X/1.25 Oil
●
●
Nosepiece
Quadruple nosepiece
●
●
Stage
Double layer mechanical stage
●
●

Stage Size : 180mmx 160mm



Moving Range: 80mmx 50mm


Focusing
Coaxial coarse & fine focusing adjustment,
finefocusing scale value 0.002mm
●
●
Light Source
Epi-fluorescent illumination
LED 3V/5W,AC85V-230V,brightness adjustment
●
●

Transmission illumination
Kohler illumination with aperture iris diaphragm
and field iris diaphragm
Halogen Bulb 12V/100W,AC85V-230V
Brightness adjustable


Fluorescent
attachment
B Wave band
●


B,G Wave band

●
Optional
Accessory
Eyepiece: WF15X/17mm,WF20X/12.5mm
objective:infinite Plan large N.A fluorescent objectives
4X/0.15,10X/0.35,20X/0.60,40X/0.75,100X/0.90(Dry)
Photography attachment and CCD C-mount:0.5X,0.57X,0.75X
1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0Mega pixels
CMOS Digital camera eyepiece
CCD Camera,colour 1/3 High resolution 700 TV lines
Image analysis software
Fluorescent digital CCD
G,V,UVWave band
