IP65 Security Light Curtain Infrared Optical Sensor With Grating

Categories	Safety Light Curtains
Anti-interference:	10000Lux
Description:	Infrared safety protection device, ONN-GS-T
Color:	Yellow
Brand Name:	ONLION
Features:	Relative expression
IP rating:	IP65
Manufacturer Part Number:	GS-T
Output:	PNP / NPN
Power:	<5W
Usage:	Industrial Equipment
Power source:	DC10~30V
Light curtain form:	Relative expression
Place of Origin:	Guangdong, China
Type:	Safety light curtains
Light source:	940nm
Theory:	Infrared radiation
Voltage - Supply:	220
Working temperature:	-10℃~55℃
MOQ:	2
Series:	Safety light curtains
Section size:	35*50mm
Material:	Aluminum alloy
Viewing Angle:	360°
Mounting Type:	Bracket fixed installation

Contact Now

Add to Cart

Company Info.

Shenzhen ONN Semi-Conductor Lighting Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

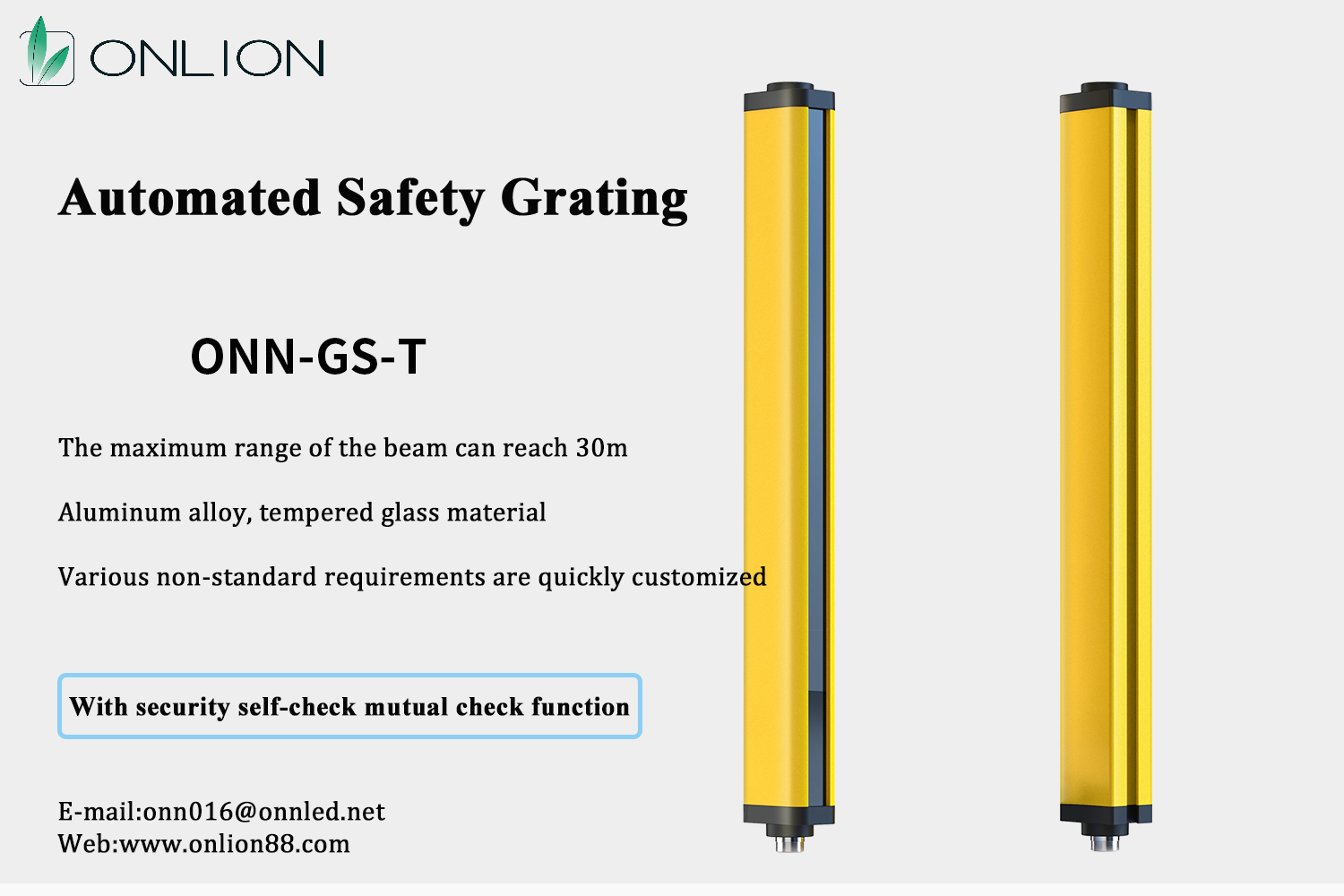

IP65 Security Light Curtain Infrared Optical Sensor With Grating

Economic IP65 Light Curtain ONN-GS-T Infrared Optical Sensor with Grating for Security Protection

Product Description

1. Aluminum alloy, tempered glass material.

2. Various non-standard requirements are quickly customized.

3. With security self-check mutual check function.

4. The maximum range of the beam can reach 30m.

5. Using line synchronization technology, anti-light interference ability is strong.

6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.

7. A variety of bracket installation options, convenient and fast.

Main application: automation equipment, injection molding machines, detection and measurement equipment, etc.

Specification

Model No.	ONN-GS-T
Power source	DC10~30V
Light source	940nm
Anti-interference	10000Lux
Light curtain form	Relative expression
Power	<5W
IP rating	IP65
Section size	35*50mm
Working temperature	-10~55℃
Color	Yellow
Material	Aluminum alloy

Ordering Code

ONN-GS-T 08 10 -N -L -6
1 2 3 4 5 6
1. Model No.	GS-T
2. Number of optical axes	04, 06, 08, 10, 12,……
3. Optical axis distance	10: 10mm 20:20mm 40:40mm
4. Connect type	N: NPN P:PNP
5. Mounting	L: L side bracket
6. Shooting distance	6: 0.1~6m 30: 0.1~30m

Product size drawing
