Compact Structure VMC855 CNC Machine Center Roller Linear Guide Stable Metal Processing Milling System

VMC855 Vertical Machining Center

High Precision CNC Machine with Compact Structure and Stable Performance for Metal Processing

Product Overview

The VMC855 Vertical Machining Center features advanced precision engineering with a compact design optimized for efficient metal processing operations.

X, Y, Z three-axis travel: 800×550×550mm
Spindle rotation mode: Belt drive with maximum speed of 8000 RPM (ring spray)
Standard configuration: 24-tool round tool magazine
Heavy-duty box-type head group structure with strengthened internal ribs for high rigidity
Pneumatic spindle punching mechanism for even stress distribution and extended bearing life
Isolated electrical box design with heat exchanger and rear fan cooling system
High precision screw three-axis system with precompression and pretension devices
Roller linear guides on X, Y, Z axes for high rigidity, low noise, and fast displacement
Comprehensive laser positioning correction and circular testing for optimal accuracy

Technical Specifications

Model	VMC855
Work Table Dimension	1000×550 mm
X/Y/Z Axis Travels	800/550/550 mm
Distance from Spindle End Face to Table	120-670 mm
Distance from Spindle Center to Column	590 mm
Maximum Table Load	600 Kg
Table T-slot	5-18×90 mm
X/Y/Z Axis Fast Feed	36/36/36 m/min
X/Y/Z Rail Width	RGH45/45/45 pin roller
Positional Accuracy	±0.005 mm
Repeat Positioning Accuracy	±0.003/300 mm
Minimum Positioning Unit	±0.001 mm
Maximum Spindle Speed	8000 rpm (Ring spray)
Main Spindle End Taper	BT40-150 mm
Tool Magazine	24T disk manipulator
Control System	Fanuc 0i-MF PLUS
X/Y/Z Axis Motor Power	bis12/bis12/bis22B
Spindle Motor Power	BiL8 (7.5-11KW)
Weight	5000 Kg
Dimension	2600×2400×2650 mm

Standard Configuration

Control system: FanUC 0i-MF PLUS latest system
Maximum spindle speed: 8000rpm (ring spray)
Spindle rotation mode: synchronous belt spindle
Spindle taper: BT40/150
Travel: 800×550×550mm
Taiwan 24 disk manipulator tool library
Fast moving speed: 48/48/48m/min
Cutting cooling system
Automatic lubrication system
Cutting and blowing device
Explosion-proof working light
Three-color alarm light
Horizontal adjustment bolts and pads
Electrical box radiator
Three-axis screw pre-drawing device
Program storage
Reserve four-axis interfaces
Double work light inside sheet metal machine tool
Double high pressure pump bottom plate flushing chips
Automatic simulation of the program hand wheel
Main shaft dust and air curtain protection
Cleaning device in the machine: air gun flushing water gun
Manual pulse generator: hand wheel
Three-axis telescopic protective cover
External protection sheet metal
Rigid tapping
Accuracy inspection certificate
Electrical instructions
User manual
Procedure operation manual
Anti-stuck knife gas storage tank
Machine tool oil and water separation device
Three-axis motor chip protection cover
External data transmission interface
Double filter rear chip storage tank Schneider Electric of France

Product Gallery

VMC855 Vertical Machining Center front view

VMC855 electrical cabinet and cooling system

VMC855 linear guide and precision components

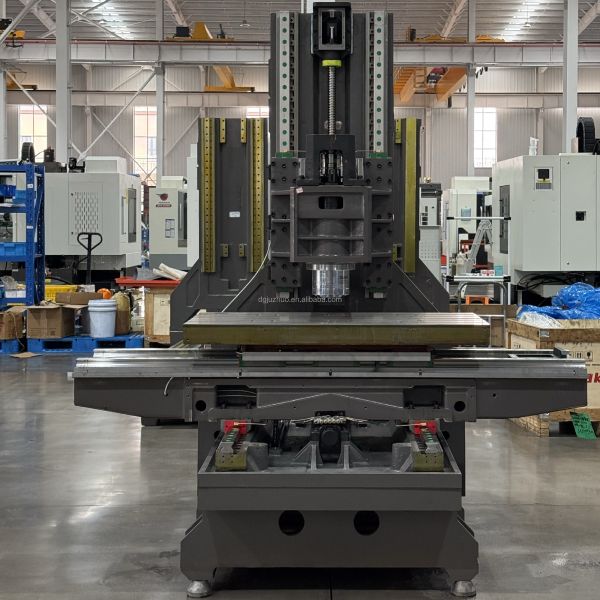

VMC855 protective covers and safety features

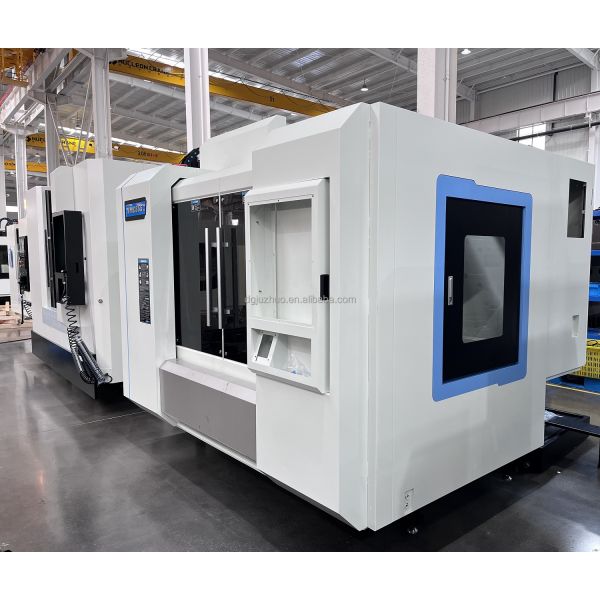

VMC855 precision testing and calibration
