Advanced Industrial Metal Detector Leather Industry Processing System JZD-366

Manufacturer Super Advanced Industrial Metal Detector for Leather Industry JZD-366
Product Overview

The JZD-366 is an LCD display intelligent digital metal detector featuring advanced two-way signal detection circuit technology. It incorporates cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study capabilities, and full digital regulating functions.

Applications

The JZD-366 digital metal detector is primarily used for detecting metal impurities in various products including bakery items, pizza, hamburgers, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It is designed to operate reliably in challenging environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language support
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters for easy product changeover
  • Automatic identification learning functions to efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle with German detection technology and rectangular aperture (indivisible)
  • ADLINE microprocessor controller system
  • Complies with IFS standards and holds HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effects in aquatic foods, frozen foods, and pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning
Technical Specifications
ParameterSpecification
ModelJZD-366
Inspection Window Width400mm (400mm customization available)
Inspection Height Options100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm)≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm)≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm)≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm SystemAudible and visual alarm with automatic stop
Raw MaterialSUS304
Standard Machine Size160cm (L) × 90cm (W) × 100cm (H)
Net Weight330kg (standard size)
Power Supply110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed25-30m/min (customizable to customer requirements)
Conveyor Height650mm ±50mm (standard, customizable to customer needs)
Note: The above sensitivity specifications are based on the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
Product Images

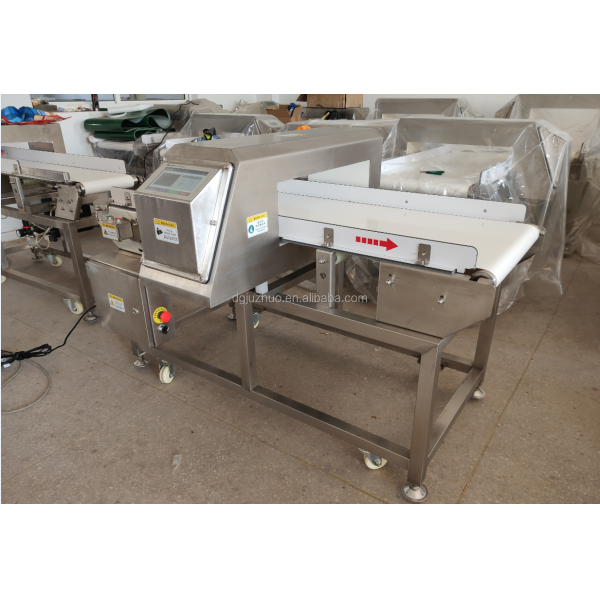

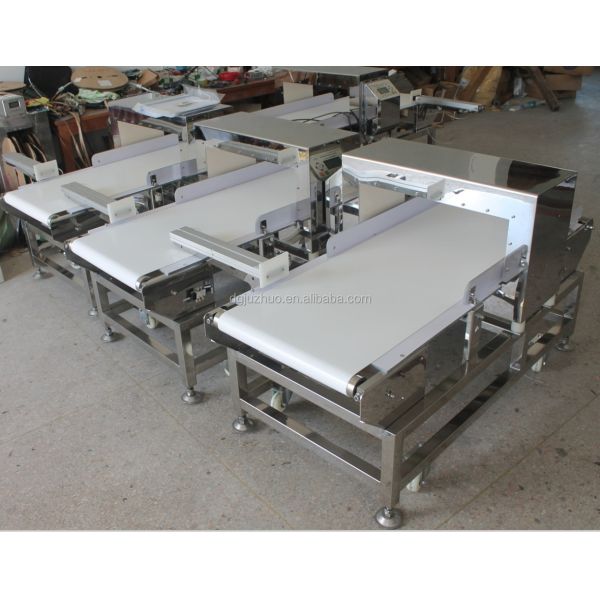

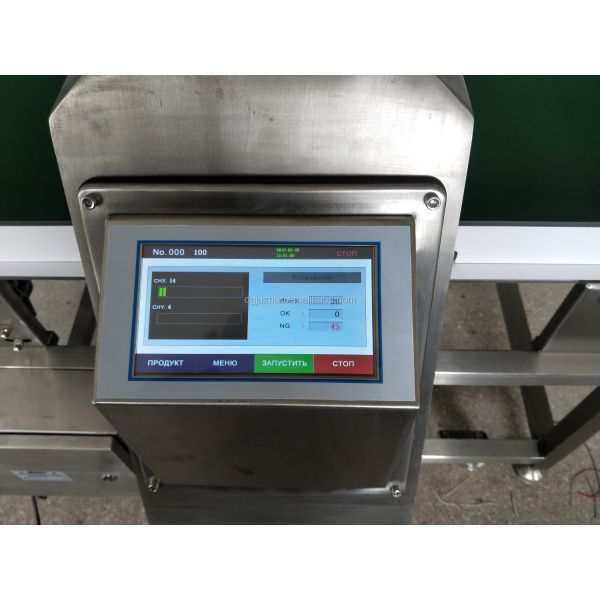

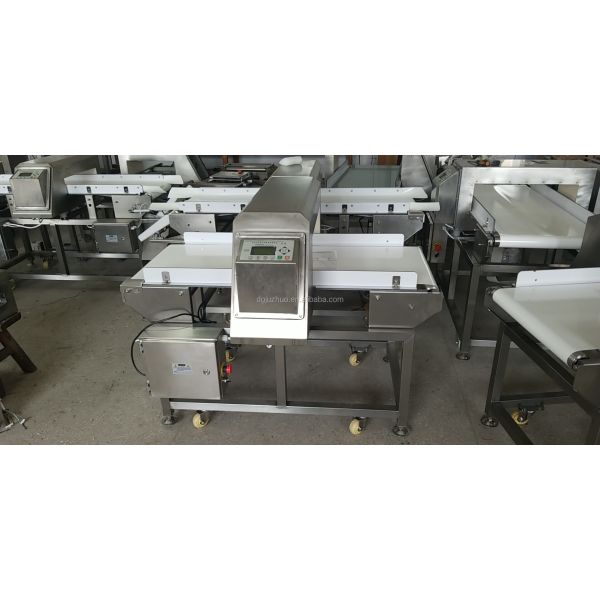

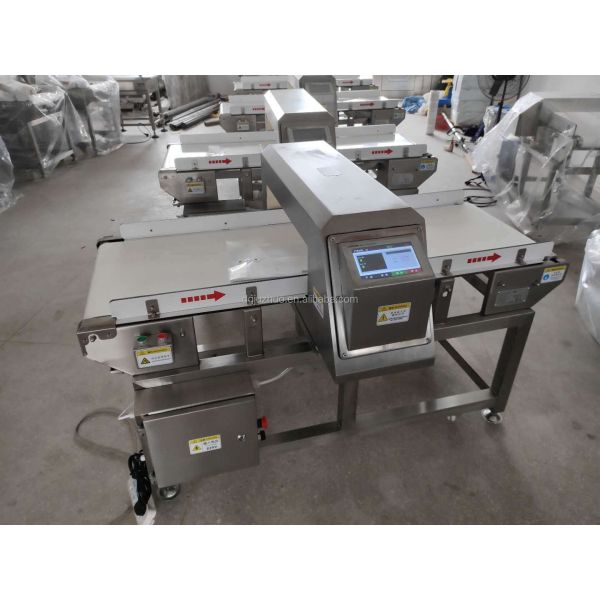

JZD-366 Industrial Metal Detector front view JZD-366 Metal Detector control panel JZD-366 detection head and aperture JZD-366 side view showing construction JZD-366 industrial application JZD-366 conveyor system detail JZD-366 internal components JZD-366 certification labels JZD-366 technical diagram JZD-366 installation example
