Index Rotary Table JZ-1200

Index Rotary Table JZ-1200

Index Rotary Table JZ-1200
Index Rotary Table JZ-1200
Categories CNC Rotary Table
Place of Origin: Taiwan, China
machinery test report: Provided
Brand: Juzhuo
Advantage: High Quantity Made
Products name: Rotary Table
raw material: stainless steel
MOQ: 5
Application: Workpiece
Price: $9,800
Brand Name: JuZhuo
Function: Work Piece Precisely
weight (kg): 1200
MOQ: 1set
video outgoing-inspection: Provided
Machine Type: Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
warranty: 3 Years
color: white and blue(customized)
Feature: Antirust Rotary Tables
Contact Now
Company Info.
Dongguan Juzhuo Precision Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Index Rotary Table JZ-1200

Index Rotary Table JZ-1200
The Index Rotary Table JZ-1200 is designed for high-precision processing applications including bore hole operations, milling, and grinding machines.
Main Features
  • Precision bearings utilize Japanese NSK brand components
  • Two-piece helical gear coupling for positioning with division accuracy up to ±2 seconds
  • Positioning gear core components originally produced in Taiwan
  • Strong air pressure locking system resistant to heavy cutting
  • Fast rotation with easy operation
  • 360-degree rotation capability with host machine integration
  • Single fixture processing for milling, boring, drilling, countersinking, reaming, and tapering
Technical Specifications
Specifications/ModelJZ-450JZ-600JZ-800JZ-1000JZ-1200
Table size (Length×Width) mm450×450600×600800×8001000×10001200×1200
Total Thickness/height (mm)170200280300340
Diameter of center hole (mm)Ø30Ø40Ø60Ø60Ø80
Milling T-slots (mm)1820222222
The tightness of Table55888
Vertical Load (Theory)240034004500600012000
Allowable load (practical)100020003000400010000
Locked-in stress22003200540054005400
Weight22042090012002500
Additional Specifications:
The direction of rotates: Clockwise and Counter-clockwise rotating
Drive Lock/loosen: Air pressure supply 5~8kg/square centimeter
Rotation: Manual
Minimum Division (Degree): 1 or 5 degree
Division accuracy/precision: ±2 seconds
Product Gallery

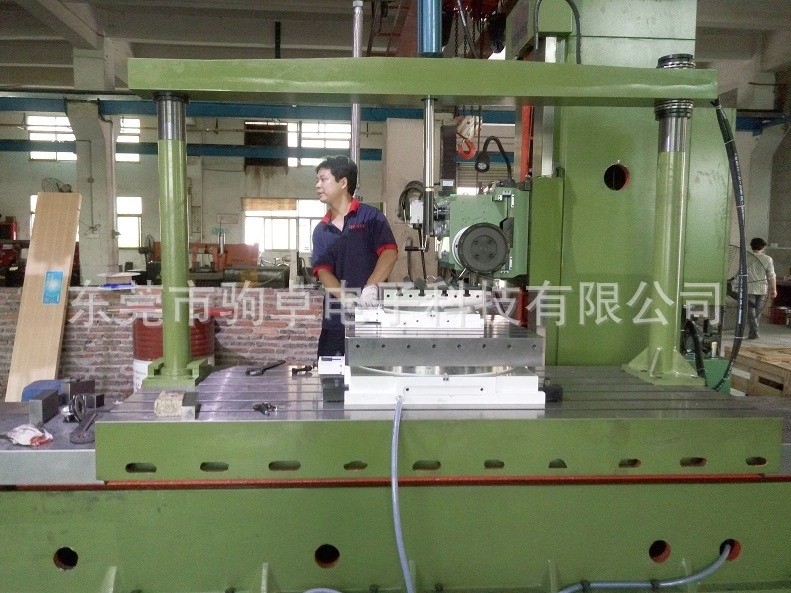

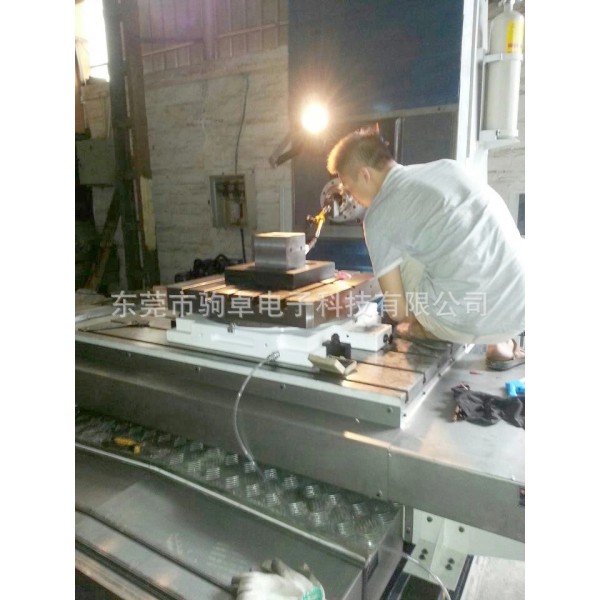

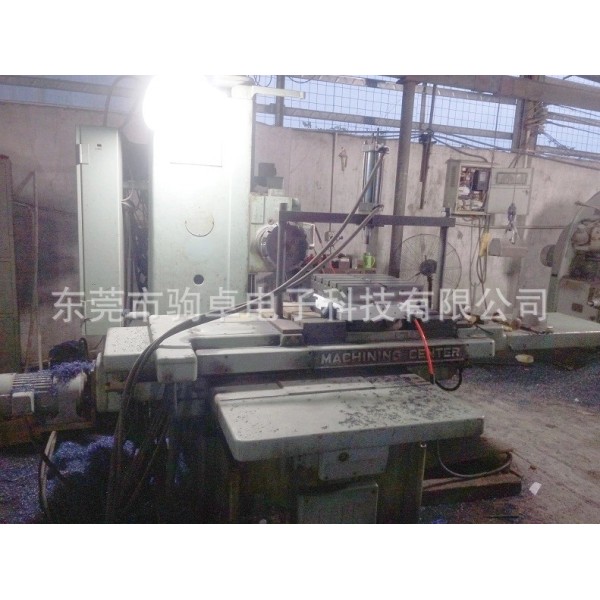

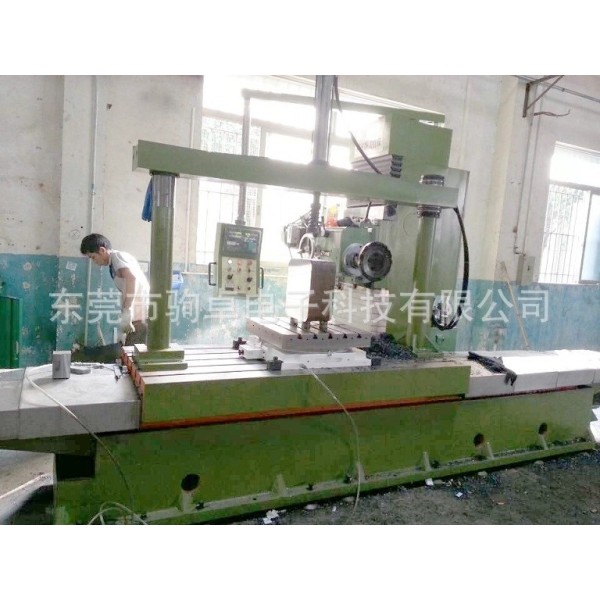

Index Rotary Table JZ-1200 front view Index Rotary Table JZ-1200 side view Index Rotary Table JZ-1200 top view Index Rotary Table JZ-1200 close-up detail Index Rotary Table JZ-1200 mechanism Index Rotary Table JZ-1200 in operation Index Rotary Table JZ-1200 control interface Index Rotary Table JZ-1200 precision components
