Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate

Categories Optical Elements
Substrate material: Silicon
Light incident angle: 45°±15
Reflectance: >99%
Coating type: HR@specified wavelength
Model Number: SG
Brand Name: Non
Place of Origin: Guangdong, China
MOQ: 1000
Price: $1
Spot diameter: 10mm-30mm
Wavelength range: 355um-10600um
Name: Optical Elements
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate

Gold Coating Laser Scanning Mirror with Silicon Substrate and High Reflectance for CO2 Laser Machine
Product Overview

Scanning Galvo Mirrors operate by directing laser beams into two mirrors controlled by computer systems. These mirrors scan along X-axis and Y-axis respectively, enabling precise laser beam deflection and movement of the laser focus with specific power density across marking materials, creating permanent surface marks.

Key Features
  • Silicon substrate construction
  • Superior thermal stability compared to fused silica substrates
  • Grain structure meets OEM specifications
  • Highly reflective coating compatible with YAG, CO2, 1064, and UV lasers
Laser scanning mirror product view Laser scanning mirror technical details
Technical Specifications
Model No.Spot DiameterWavelengthTypeLight Incident AngleCoatingReflectance
GIAI-AOI-10-106410mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-12-106412mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-14-106414mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-16-106416mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-20-106420mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-30-106430mm1064um1064 Laser45°±15HR@1064nmR>99%@1064nm
GIAI-AOI-10-53210mm532um532 Laser45°±15HR@532nmR>99%@532nm
GIAI-AOI-12-35512mm355um355 Laser45°±15HR@355nmR>99%@355nm
GIAI-AOI-12-1060010mm10600umCO2 Laser45°±15HR@10600nmR>99%@10600nm
Product Gallery

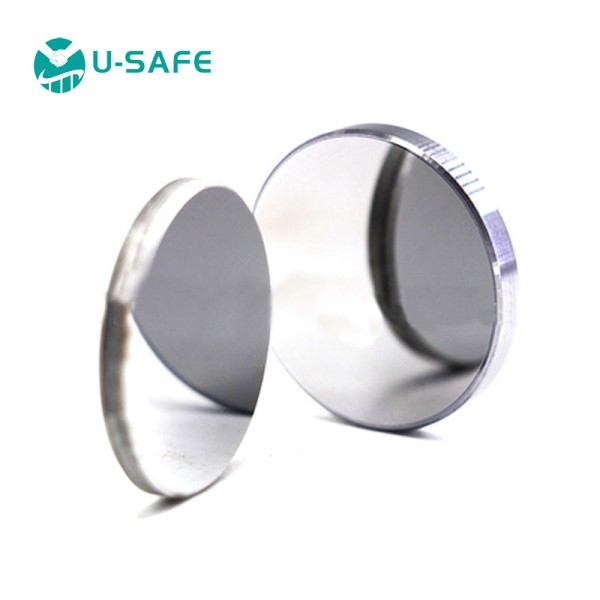

Laser scanning mirror production sample Laser scanning mirror close-up view Laser scanning mirror packaging Laser scanning mirror quality inspection
Manufacturing Process
Laser scanning mirror production process
Contact Us

Any questions? Contact our sales team for prompt assistance - you'll receive a reply within 24 hours at the latest!

Company contact information
Our Services
  • R&D / OEM Support
  • Production Process Follow-up
  • Custom Packaging Solutions
  • Pre-Delivery Inspection
  • Flexible Shipping Options: EXW, FOB, FCA, CNF, CIF, Door-to-Door by sea, air, express, or post
