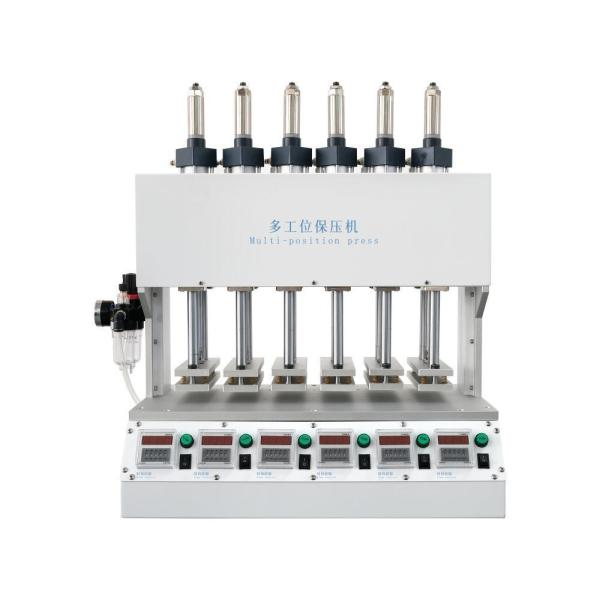

Six Station Automatic Pneumatic Press Machine For 3C Electronic Assembly

Categories Pneumatic Machine
Payment Terms: T/T
Effective size: 6*11cm for each station
Model Number: ZT-QYJ180-06
Weight: 35KG
MOQ: 1
Packaging Details: carton
Power: 350W
Max pressure: 0-200kg
Price: Price Negotiation
Dimensions: 50*38*75cm
Certification: CE, ISO, RoHS
Pressing accuracy: ±2KG
Supply Ability: 1000set/month
Operating Air Pressure: 4-8KGF/C ㎡
Brand Name: ZhongTu
Model NO.: ZT-QYJ180-06
Pressure sensor: 0-300kg
Place of Origin: China
Voltage: 220V / 110V 50/60HZ
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Six Station Automatic Pneumatic Press Machine For 3C Electronic Assembly

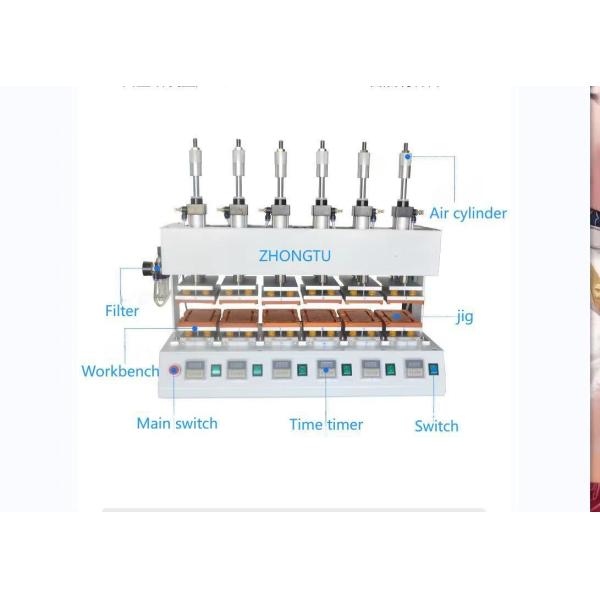

  • What is an Pneumatic Machine ?

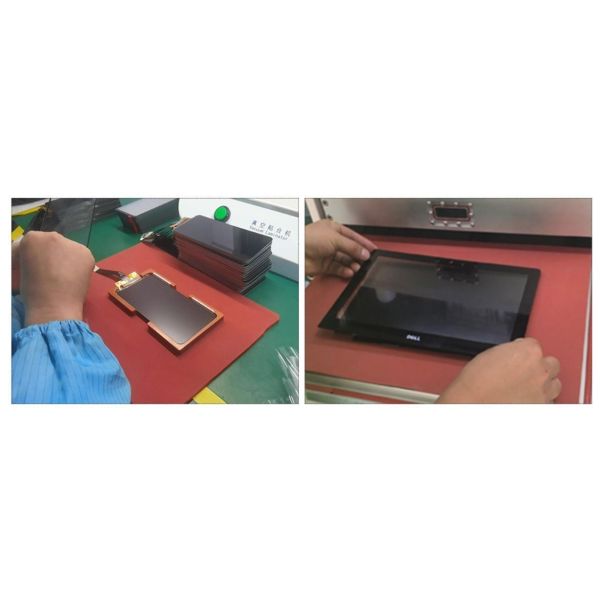

    Screen press, also known as mobile phone screen press, is a device that replaces mobile phone LCD monitors.

  • Working principle:In the vacuum state to achieve a tight fit of the mobile phone screen.



  • Operation steps:
    1. Open the pressure screen machine, vacuum pump, air compressor power supply;
    2. Put the screen into the press tray after cleaning and press the start switch;
    3. The vacuum pump provides power to the press plate machine so that the tray goes inside the press plate machine;
    4. When the vacuum value of the vacuum bin reaches 99%, the press plate of the screen press makes the mobile phone screen tightly fit.

    Key features:

    · Pneumatic-driven, no hydraulic oil – clean, low noise, energy saving, eco-friendly.

    · High precision pressure holding – stable pressure output, accurate bonding & curing for electronics.

    · Adjustable pressure, stroke & hold time – flexible for different products and glue types.

    · Rigid frame & anti-rotation guide rods – high parallelism, consistent pressing quality.

    · Digital pressure gauge & timer – real-time monitoring, repeatable process data.

    · Multiple safety protection – two-hand operation, emergency stop, safety light curtain optional

    · Compact desktop design – small footprint, easy integration into production line.

    · Widely applicable – for PCB, FPC, LED, adhesive dispensing, bonding, lamination & assembly.

    · CE compliant & reliable pneumatic components – long service life, low maintenance.

    · Customizable (station size, force, heating) – OEM/ODM available for special processes.

Technical Specifications

Model

ZT-QYJ06

five station

ZT-SP4310B

single station

ZT-QYJ150-01

single station

ZT-QYJ180-06

six station

ZT-QYJ160-01

medium size

Input power

350W

Input voltage

AC200-240V

Driving mode

Closed loop stepper motor (Leadshine/JMC)

Pressing accuracy

±2kg

Materials

Aluminum alloy frame; chassis in metallic gray sheet metal; pressure-retaining soft fixture for hard surfaces (the fixture is replaceable and shared by the machine).

Control method

Duration control,0-999(sec/minutes)

Start method

Start with both hands

Max pressure

0~200kgMore pressure need to be customized

Pressure sensor

0~300kg

External port

USB+R232

Humidity

20-90%

working air pressure

0.4-0.6Mpa

Weight

150KG

20KG

12KG

200KG

28KG

Effective size of each station

9*11cm

35*26cm

35*26cm

6*11cm

42*30cm

Size

50*35*55cm

50*35*55cm

38*38*48cm

50*38*75cm

50*50*75cm

Applicable

Electronic products such as mobile phones, tablets, headphones, toys and home appliances for pressing and fixing after dispensing, product compaction and punching, as well as pressing and pressure holding operations.


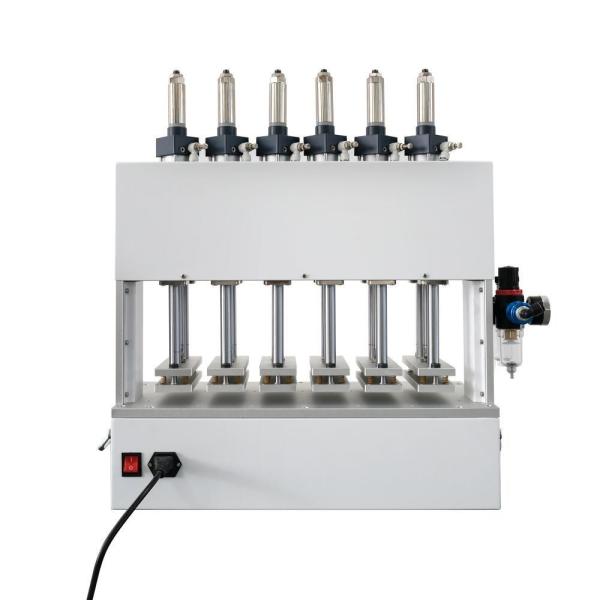

Product Images




































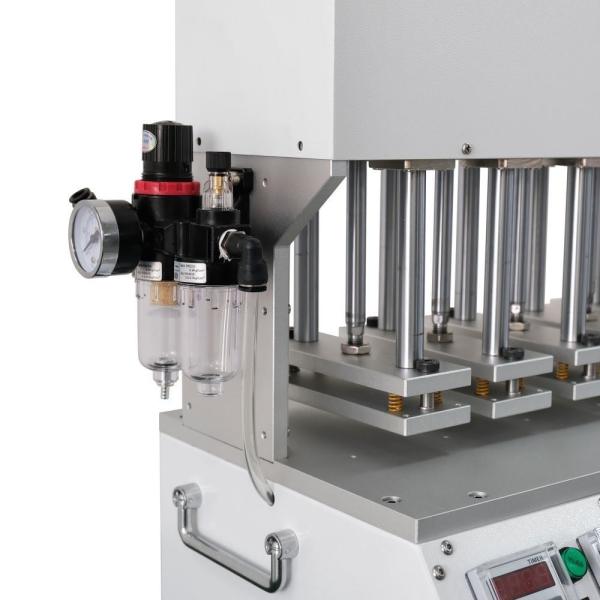

OCA Lamination Machine full setup












Product packaging

✅ Why Zhongtu


10+ years in automation R&D & manufacturing
In-house machining & assembly
CE/RoHS compliant
1-year warranty +3 years core components warranty+ 24h after-sales support
