Plastic Crushing & Grinding Machine for Plastic Flake Making

Plastic Crushing & Grinding Machine for Plastic Flake Making

Plastic Crushing & Grinding Machine for Plastic Flake Making
Plastic Crushing & Grinding Machine for Plastic Flake Making
Categories Plastic Crusher
video outgoing-inspection: Provided
warranty: 1 Year
key selling points: Multifunctional
power (kw): 45
Used for: Shreddering Waste Materials
Advantage: High Efficiency Low Energy Consumption
shaft design: Double
Name: Shredder Machine
weight (t): 2
dimension(l*w*h): 1950*1900*2200mm
Application: Recycle Waste Plastic
machinery test report: Provided
Place of Origin: Henan, China
Product name: Shreddder Machine
use: Waste Plastic Crusher
Price: R 51 449,22-60 834,09
plastic type: PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
voltage: 220 V, 380 V
core components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other
Function: Plastic Cutter Grinder Crusher Shredder Machine
Keyword: Strong Plastic Crusher
Usage: Waste Raw Material Shredding
Crushing material: General Plastic Materials
Brand Name: CR
MOQ: 1
Raw material: Plastic Products Paper Wood Metal Product
Contact Now
Company Info.
Zhengzhou Chenrui Machinery Equipment Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plastic Crushing & Grinding Machine for Plastic Flake Making

■Plastic crusher machine

Plastic crushers are used to crush waste plastics and plastic scraps from factories. Plastic crushers are widely used in the regeneration of waste plastics and the recycling and reuse of factory scraps.
The plastic crusher is driven by an electric motor to rotate the moving knife disc at high speed. During the high-speed rotation of the moving knife, it forms a tendency of relative motion' with the fixed knife. The gap formed between the moving knife and the fixed knife creates a cut for plastic crushing and shearing, there by breaking down large pieces of plastic. The crushed plastic is filtered through a screen to determine the size of the plastic particles and then output.

■Advantage

The crusher is easy to operate, and the knife change is simple and quick. The tool rest is optimized in design. The claw-shaped knife can disperse the force received, increasing the shearing force of each knife piece. It is suitable for crushing thick materials, hard material blocks, material heads, etc., effectively enhancing the cutting force of the tool and reducing tool wear. It is equipped with an electric control safety design. The hopper adopts a double-layer structure and is filled with sound insulation materials inside, which makes the equipment have good safety and environmental protection, energy-saving and durable.

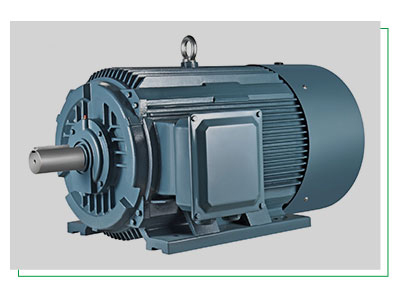

01/Motor
Pure copper motor, excellent electrical conductivity, good thermal conductivity, corrosiveness,suitable for a variety of working environments.

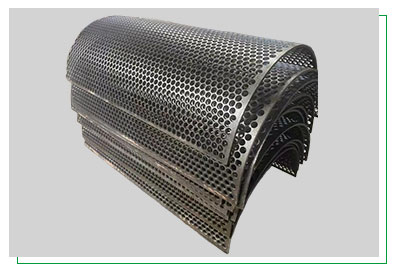

02/Sieve mesh
Screens of different specifications can be replaced according to different needs to achieve the required material size.

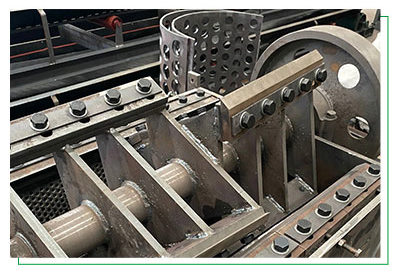

03/Rotor
The blades are made of alloy materials (such as 55SICR,SKD-11, etc.), which have stronger wear resistance and a longer service life.
04/Hydraulic pump station
The hydraulic power can be quickly installed without the cumbersome disassembly process, which is convenient for maintenance, reduces manpower and downtime, and improves the operational efficiency of the equipment.
Lightweight (decorative blade)
Model
Power(kw)
Output(kg/h)
External dimensions(mm)
Machine weight(kg)
400
7.5
200-400
1100×800×1000
400
600
15
400-800
1200×1100×1650
800
800
30
800-1200
1700×1400×2000
1500
1000
45
1000-1500
1950×1900×2200
2000
1200
55
1500-2000
2200×2100×2200
2300
1500
75
2000-3400
2500×2300×2200
2800
1600
90
3000-6000
2600×2400×2300
3200
High-pressure heavy-duty plate cutter (herringbone blade)
Model
Power（kw）
Output （kg/h）
External dimensions（mm）
Machine weight（kg）
400
15
300-500
1100×800×1000
600
600
30
600-1000
1200×1100×1650
1200
800
45
900-1600
1700×1400×2000
2000
1000
55
1200-1800
1950×1900×2200
2500
1200
75
1600-2500
2200×2100×2200
3000
1500
90-110
3000-5000
2500×2300×2200
3500
1600
110-132
3800-6500
2600×2400×2300
4000
High-pressure heavy-duty tooth cutter (claw cutter)
Model
Power (kW)
Output (kg/h)
External dimensions（mm）
Machine weight（kg）
400
18.5
300-500
1100×800×1000
600
600
30
600-1000
1200×1100×1650
1200
800
37
900-1600
1700×1400×2000
2000
1000
45
1200-1800
1950×1900×2200
2500
1200
55
1600-2500
2200×2100×2200
3000
1500
55
3000-5000
2500×2300×2200
3500
1600
75
3800-6500
2600×2400×2300
4000

About Us

Zhengzhou Chenrui Machinery Equipment Co., Ltd. was established in 2007. Our factory is located in the High-End Equipment Manufacturing Park, Zhanjie Town, Gongyi City, Zhengzhou City, Henan Province. We design and manufacture industrial shredders, waste tire recycling equipment, waste metal recycling machinery, and waste home appliance crushing and sorting production lines, etc. Our products have obtained ISO and CE certifications and have been widely exported to over 30 countries, receiving high praise from customers. Over the years, we have continuously improved and researched, developing various new products that sell well both at home and abroad, earning a good reputation and corporate image. We are always committed to providing better quality and service. Welcome your inquiries!
Q: What is the maximum processing capacity of this crusher? Can it operate continuously?
‌A‌: Our industrial-grade shredder has a continuous processing capacity of 6500 kg/h, utilizing reinforced steel blades and a heavy-duty motor. It maintains stable performance even when processing high-density materials such as PVC pipes and ABS sheets, making it ideal for continuous operation in recycling plants.
Q: Can it process mixed plastics? For example, waste materials containing a mixture of PP, PE, and ABS.
A: Absolutely! Our shredder is specifically designed for mixed plastics, and its alloy steel blades efficiently separate and shred the materials, making it an ideal choice for recycling centers dealing with complex waste streams.
Q: Is it complicated to operate? Does it require professional training?
A: The design is very user-friendly, equipped with an intuitive control panel. We provide free online video tutorials and operating manuals, and most customers find it easy to get started.
Q: Is maintenance difficult? How often do the blades need to be replaced?
A: Maintenance is very simple; just perform regular inspections. The blade life is typically 6-12 months (depending on usage frequency and materials), and as a consumable part, we will provide replacement blades at a discounted price.
Q: Do your machines have CE certification? Do they comply with EU environmental standards?
A: Yes, our shredders are CE certified and RoHS compliant, equipped with a dust suppression system, and the noise level is kept below 75 decibels, fully meeting EU environmental requirements.

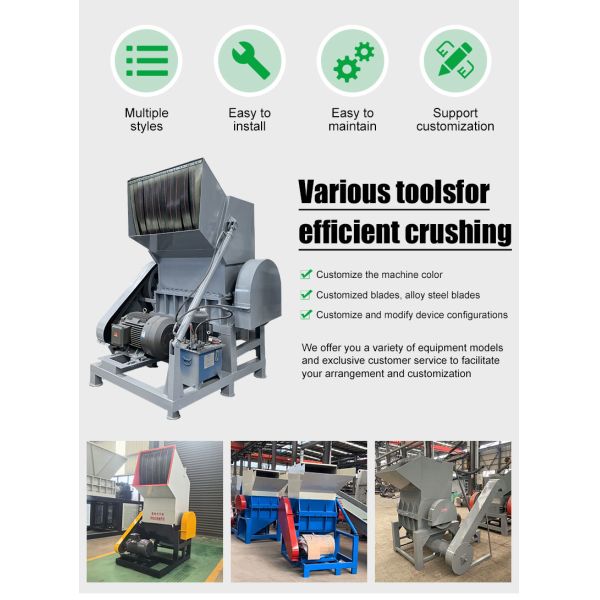

Q: Can the product be customized to my needs? For example, can the production capacity or color be adjusted?
A: Absolutely! We support OEM customization and can adjust the product according to your production capacity requirements, voltage specifications, or color preferences.
