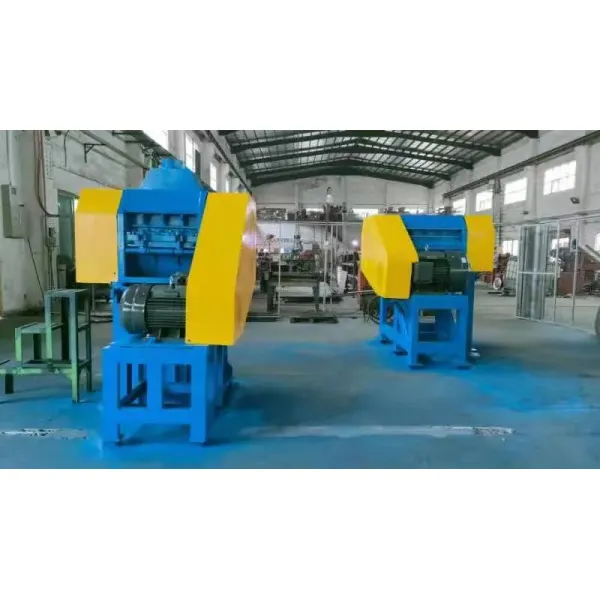

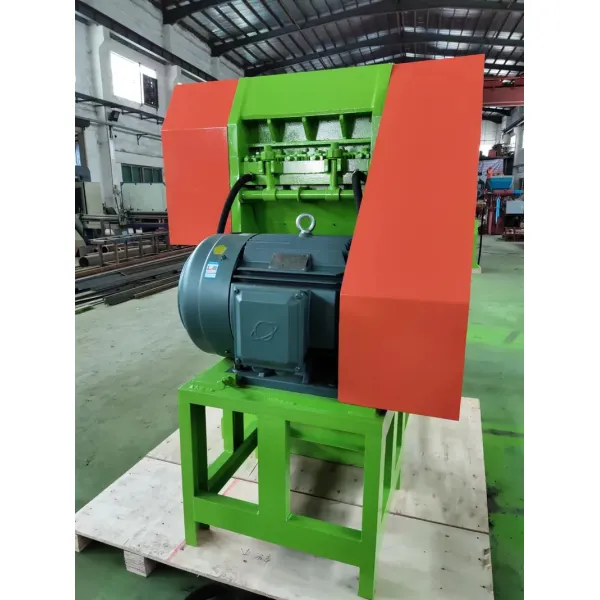

Second Granulator: Experience the unparalleled power and precision
of our revolutionary Second Granulator. This masterpiece of
engineering prowess is designed with meticulous attention to
detail, delivering exceptional efficiency and precise material
processing. Entrust this advanced machinery to provide exceptional
performance and steadfast reliability for all your operational
requirements.
Main Application: Our expertly engineered granulators and crushers
are setting new benchmarks in the industry for material reduction.
They excel at transforming non-metallic pellets and flakes into
premium-quality granules with precision processing, elevating
standards of production excellence and operational reliability.
The First Granulator is at the forefront of innovation, expertly
converting non-metal pellets, lumps, and flakes (3-28mm) into
finely milled granules and flakes sized between 0.4-5mm. Operating
at ambient temperatures, it features a standard screen with a hole
diameter of Φ5mm, guaranteeing consistent and accurate granule
sizing with each operation.Equipment Features: Our equipment represents the pinnacle of
sophistication and innovation, incorporating advanced features that
redefine both efficiency and durability. It establishes a new
benchmark for excellence and reliability, ensuring exceptional
performance with every use.
Our innovative double-layer feed hopper design dramatically reduces
noise levels, fostering a serene production environment that
enhances the overall workplace atmosphere.
An advanced circulating water cooling system has been integrated to
ensure optimal thermal management, significantly reducing the
temperature of the cutter and crushing chamber during operation.
This feature elevates performance, ensuring the equipment's
integrity is consistently maintained.
Equipped with high-grade alloy blades, our machinery offers
superior impact resistance, wear resistance, and extended lifespan.
The ingenious toothed blade design optimizes energy utilization and
maximizes cutting efficiency, further extending the longevity of
the equipment.
Our outstanding movable rotating grid structure simplifies
maintenance operations, ensuring continuous operational flow and
minimizing downtime. This feature enhances both productivity and
operational efficiency.| Model model | LXS1600 | LXS1200 | LXS800 | LXS600 |
| Motor power(Kw) | 75 | 55 | 37 | 30 |
| Main shaft rotation rate(r/M) | 495 | 495 | 495 | 495 |
| Input size(mm) | 3-15 | 3-15 | 3-15 | 3-15 |
| Screen hole diameter(mm) | Φ5 | Φ5 | Φ5 | Φ5 |
| Output size(mm) | 0.4-5 | 0.4-5 | 0.4-5 | 0.4-5 |
| Capacity(Kg/h) | 1100-1350 | 900-1200 | 500-650 | 300-400 |
| Moved blades Qty(Pcs ) | 96-128 | 72-96 | 48-64 | 36-48 |
| Fixed blades Qty(Pcs ) | 8 | 6 | 4 | 4 |
| Blade lifespan | 1800×4×6 | 1800×4×6 | 1800×4×6 | 1800×4×6 |
| Cooling way | Cycle water cooling |
Size(L×W×Hmm) |
2750×1800×2300 | 2300×1770×
2300 | 1650×1700×
2300 | 1650×1450
×2300 |
| Equipment weight (kg) | 6200 | 5700 | 4700 | 3400 |
About Us: Uncover the illustrious history and pioneering ethos of
Dongguan Yuntong Co., Ltd., a trailblazer in technology and
excellence, driving innovation at the industry's forefront.
Our company stands as a beacon of innovation, spearheading advances
with state-of-the-art technology in ambient temperature scrap tire
recycling, producing ultrafine rubber powder. Our fully automated
industrial scrap rubber and plastic pyrolysis systems set
industry-leading standards. This innovative technology, widely
adopted, effectively combats 'black pollution' from scrap tires,
yielding substantial economic and societal benefits.
With over two decades of unwavering commitment, we have amassed an
impressive portfolio of proprietary patents, including 2 national
invention patents and 9 utility model patents. Our extensive global
marketing network has enabled successful market entry in over 40
countries, including Russia and Turkey. Domestically, our influence
spans regions like Chongqing and Hong Kong, earning trust and
accolades from our esteemed clientele.
We uphold a philosophy of focus, professionalism, and technological
innovation, contributing significantly to the circular economy for
societal betterment.Services: Delve into our comprehensive array of industry-leading
services, painstakingly crafted to address our clients' diverse
needs.

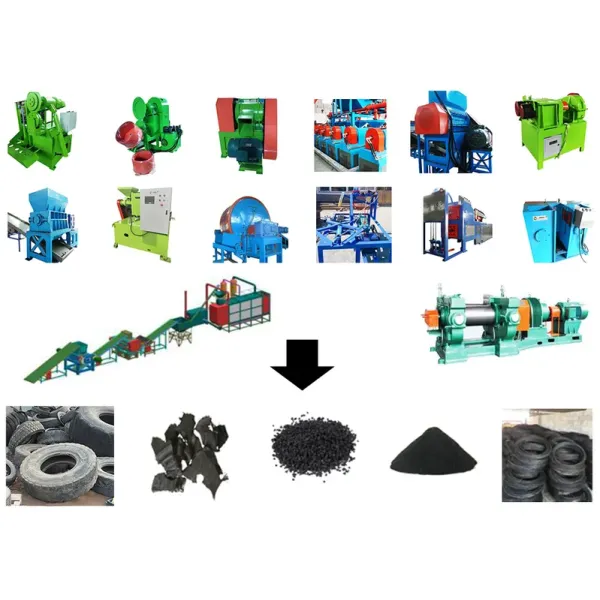

1. Tyre Crushing Equipment: Featuring the state-of-the-art Single
Shaft Crusher,Twin Shaft Crusher, Tire Super Crusher, First Experience unparalleled versatility with our Granulator, Second
Granulator, and Rubber Powder Machine, expertly engineered to
provide comprehensive material processing solutions for a wide
range of applications.
2. Tire Slitting Machine: Discover the perfect synergy of our
Hydraulic Tread Strip Cutter, Tire Block Cutter, and Remote Control
Sidewall Strip Cutter Units, alongside the Hydraulic Sidewall
Cutter and Sidewall Cutter. Meticulously crafted for precision,
these advanced components redefine accuracy and efficiency in tire
slitting operations.
3. Screening Installation: Our state-of-the-art Screening
Installation brings you the highly sophisticated Line Vibrating
Screen, the groundbreaking Airflow Classifier, and the robust
Three-Layer Vibrating Screen. Together, they form an extraordinary
system enhancing material processing efficiency, ensuring your
operations achieve new levels of smoothness and performance.
4. Steel Wire Equipment: Revolutionize steel wire processing with
our groundbreaking Tire Bead Cutter Debeader, Bead Wire Rollers
Debeader, and Debeader. These meticulously engineered devices
promise unparalleled precision and efficiency, setting new
benchmarks in the industry.
5. Packing Machine: Achieve seamless operational efficiency with
our Automatic Weighing and Packing Machine, masterfully designed to
ensure impeccable product management and optimize workflows,
boosting productivity and reliability in your production process.
6. Accessories: Engineered for peak performance and unwavering
reliability, our high-precision Blades and cutting-edge Filter
ensure your machinery functions at its optimum capability, every
single time.Screen: Embrace our cutting-edge screening innovations,
meticulously designed to dramatically enhance operational
efficiency and elevate your processing capabilities to new heights.
7. Rubber Tile Equipment Units: Enhance your production
capabilities with our high-performance Rubber Mixers and Rubber
Tile Vulcanizing Equipment, designed to deliver exceptional quality
and outstanding durability, transforming your production line.
8. Running Track Production Units: Our innovative lineup, including
the precision-engineered Paver, advanced Spraying Machine, and Line
Drawing Machine, is meticulously crafted to achieve flawless
accuracy and efficiency. Perfect for crafting premium sports
surfaces that adhere to the highest standards.
9. Automatic Scrap Rubber & Plastic Pyrolysis Oil Equipment: Step
into the future with our pioneering system that seamlessly
transforms waste into valuable resources. Utilizing groundbreaking
technological advancements, it offers a sustainable and efficient
recycling solution.
Every product we provide is meticulously designed to expertly
process an impressively extensive range of tires. From car, bus,
and truck tires to agricultural and engineering tires, alongside
other rubber and plastic products, our offerings promise unmatched
versatility and performance.
We extend a warm invitation to visit our facility and witness
firsthand our state-of-the-art manufacturing processes. Experience
the cutting-edge technology and unwavering commitment to innovation
and excellence that propels Dongguan Yuntong Co., Ltd. forward.
Our Factory Case: Dive deep into our operations, where cutting-edge
technology seamlessly merges with masterful craftsmanship. Discover
our advanced facility, a testament to the seamless integration of
innovation and expertise.
Our Certificate of Honor: Marvel at our esteemed collection of
industry accolades, each serving as a testament to our relentless
pursuit of quality, pioneering innovation, and unwavering customer
satisfaction. Every award reflects the high standards we uphold.
FAQ:
1.Q: Are you a factory or trading company?A: We are a distinguished Industrial and Trading Company, boasting
over twenty years of significant production experience. We
continually elevate industry standards by delivering exceptional,
world-class products.2.Q: How does your factory ensure quality control?A: "Quality is priority."We place the utmost importance on quality control, employing
rigorous standards from the very inception to the finalization of
production. This ensures that only the best products reach our
valued customers.3.Q: What is your MOQ?A: At Dongguan Yuntong Co., Ltd, we wholeheartedly embrace orders
of every size, greeting each with enthusiasm and a spirit of
collaboration. Our adaptable and client-focused approach guarantees
that every customer discovers a bespoke solution perfectly crafted
to meet their unique needs.Furthermore, Dongguan Yuntong Co., Ltd extends a flexible pricing
structure, allowing for beneficial negotiations on larger order
volumes. This ensures that our valued clients not only receive
exceptional value but also experience unparalleled satisfaction and
service excellence.
