| Categories | Differential Pressure Controller |
|---|---|
| Model Number: | KF-500C-YC |
| Temperature display range: | 0℃----50℃ |
| Place of Origin: | China |
| Fixing hole distance: | 60mm(standard) |
| Supply Ability: | 100000pcs |
| Payment Terms: | T/T |
| Differential pressure range: | ±100Pa |
| Delivery Time: | 2-3 weeks |
| Price: | US$49/pcs |
| Rated voltage: | AC110V -- 220V 50Hz |
| MOQ: | 1pcs |
| Operating temperature: | -10℃ --- +50℃ |
| Brand Name: | OEM or neutral (no brand) |
| Dimension: | 86×86×40mm |
| Company Info. |
| Shenzhen Xiangfan Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

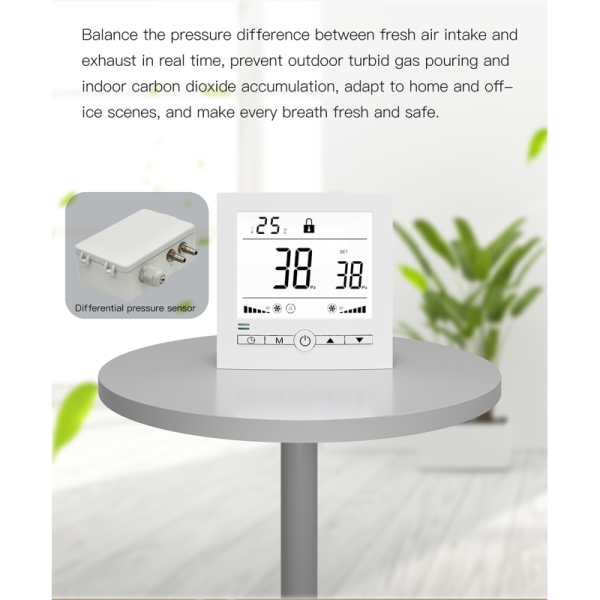

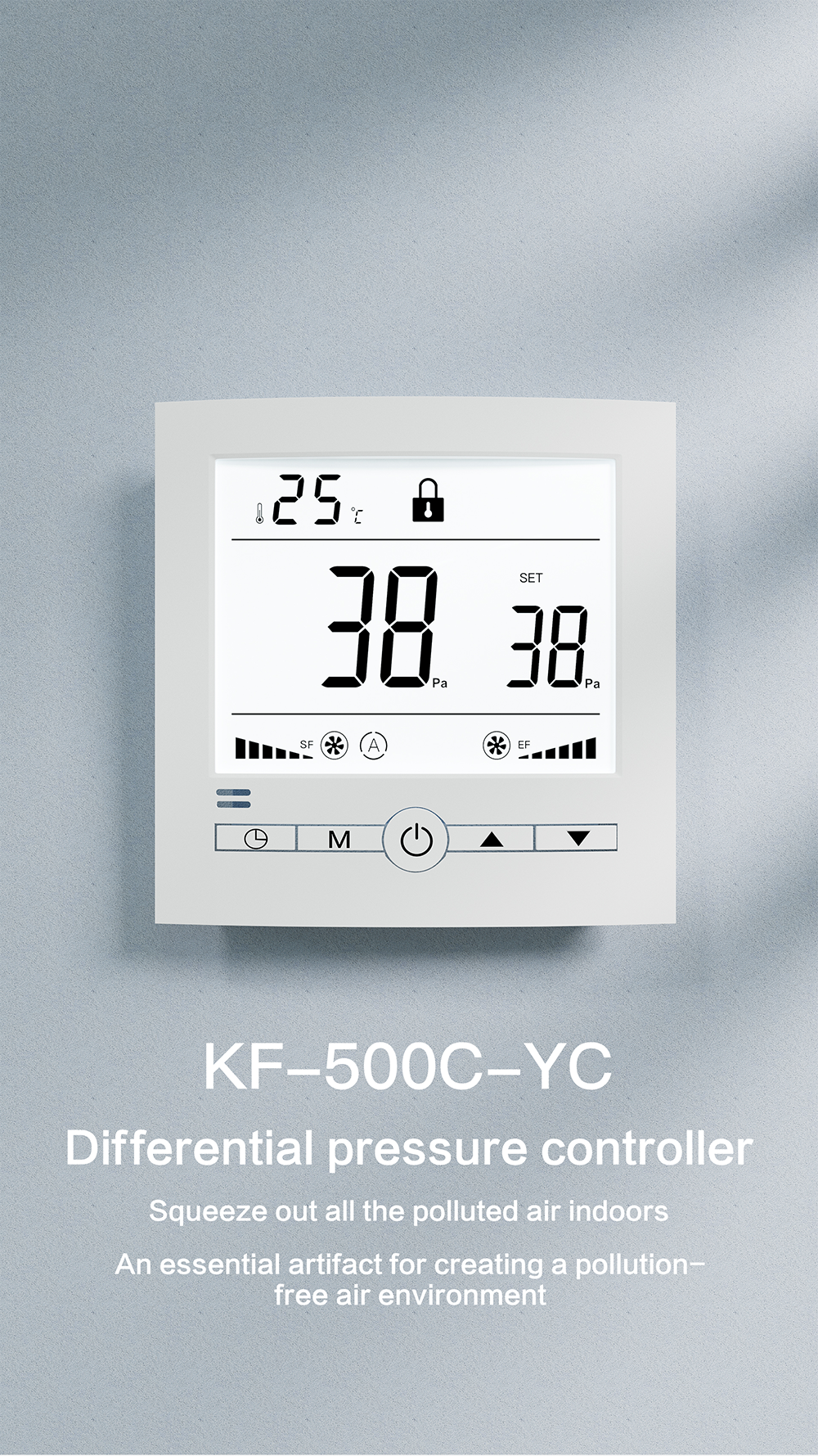

Digital Differential Pressure Controller with LCD Display for Automatic Control and Wall Mounting
The KF-500C-YC is an intelligent digital differential pressure controller designed for precise indoor pressure management. Equipped with a clear LCD display and intelligent control algorithm, it continuously monitors real-time indoor and outdoor pressure differences and automatically adjusts the fresh air blower operation to maintain a stable pressure balance.
It is suitable for hospitals, commercial and industrial environments to ensure that the indoor pressure difference is maintained at the required constant value, creating a safe and comfortable working environment.
Automatic Mode: Intelligent adjustment based on detected pressure changes
Manual Mode: User-controlled operation for flexible management
Large, easy-to-read screen
Displays current pressure value and preset pressure setting
Provides intuitive operation status monitoring
| Dimension: 86×86×40mm | Temperature display range: 0℃——50℃ |
| Fixing hole distance: 60mm(standard) | Operating temperature: -10℃ --- +50℃ |
| Wiring terminal: Max 2.5 mm2 wire | Operating humidity: 5％RH——90％RH (Non-condensing) |
| Rated voltage: AC110V -- 220V 50Hz | Storage temperature: -10℃ --- +60℃ |
| Standby Power: ≤0.2W | Storage humidity: ≤60％RH |
| Control power: ≤200W | Life: ≥5 years |
| Differential pressure range: ±100Pa |
|
