Smart LCD Digital Ventilation Controller Detects PM2.5 CO2 VOC Temp Humidity

Smart LCD Digital Ventilation Controller Detects PM2.5 CO2 VOC Temp Humidity

Smart LCD Digital Ventilation Controller Detects PM2.5 CO2 VOC Temp Humidity
Smart LCD Digital Ventilation Controller Detects PM2.5 CO2 VOC Temp Humidity
Categories Digital Ventilation Controller
Model Number: G5
Built in sensors: VOC+PM2.5+CO2+Temperature+Humidity
Payment Terms: T/T
Price: US$79
Suitable for fans: AC/EC/DC
Supply Ability: 100000pcs
Certification: CE, RoHS
Safety function: Child Lock, Filter Replacement Reminder
MOQ: 1
Delivery Time: 2-3 weeks
Working modes: Manual Mode / Automatic Mode / Timing Mode / Sleep Mode
Place of Origin: China

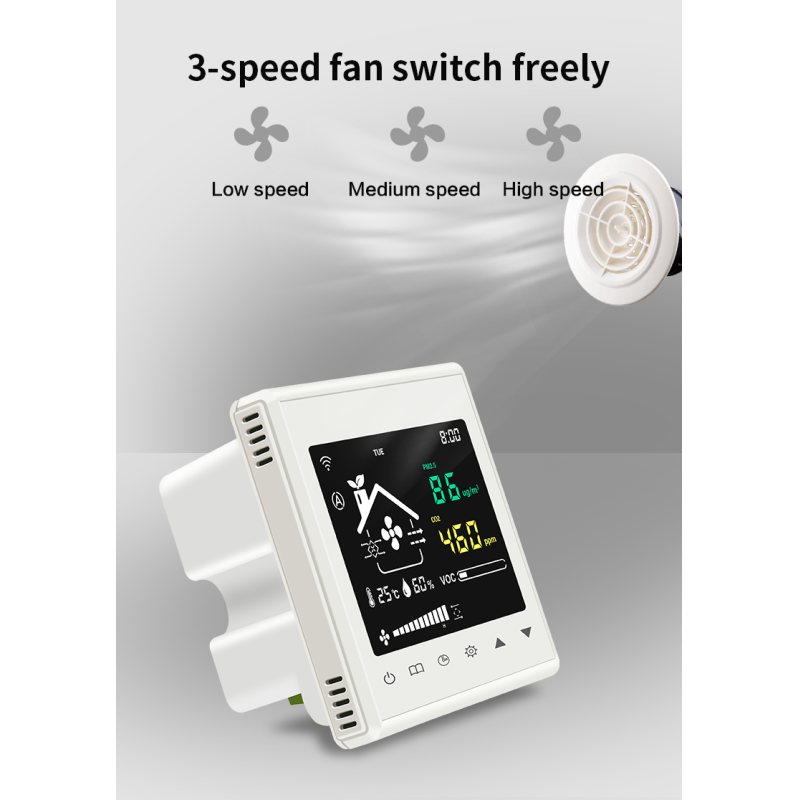

Fan speed level: 3 Speed Adjustable (Low / Medium / High)
Brand Name: OEM or neutral (no brand)
Product name: Fresh air HVAC system controller
Contact Now
Company Info.
Shenzhen Xiangfan Electronics Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Smart LCD Digital Ventilation Controller Detects PM2.5 CO2 VOC Temp Humidity

Product Overview:
The G5 LCD digital smart fresh air controller offers both manual and timer operation modes, with its output signals directly controlling the unit's startup and speed.
Ideal for homes, commercial premises and industrial sites, it greatly improves indoor air quality, creating a healthy, comfortable, energy-efficient and eco-friendly living and working environment.
Key Features:
  • Directly outputs control signals to manage the startup, shutdown and fan speed of ERV & HRV heat/energy recovery fresh air units, stable signal output with reliable control performance.
  • Widely compatible with residential houses, commercial offices, shops and industrial ventilation systems for whole-house indoor air renewal.

Product Specifications:

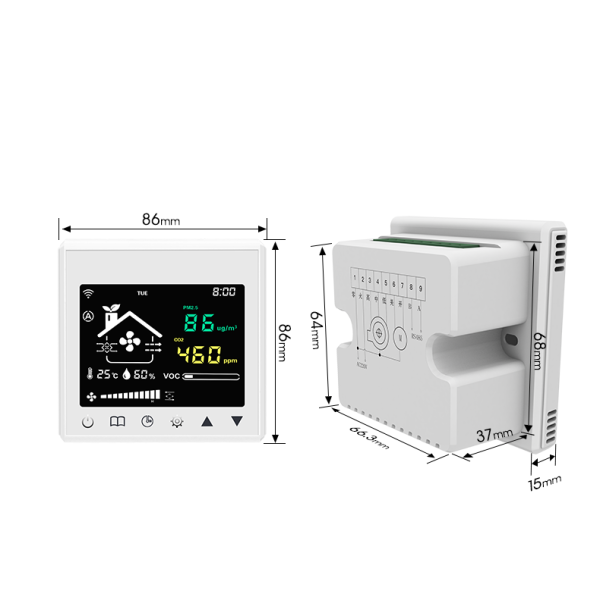

* Dimension:
86 × 86 × 50 mm
* Warm-up time:
1 minute
* Fixing hole distance:
60mm (standard)
* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire
* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz
* Operating temp.:
-10℃--- +50℃
* Standby Power:
≤ 2.0W
* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W
* Storage temp.:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC
* Storage humidity:
≤ 60％RH
* Temp. display range:
0℃ —— 50℃
* Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/m3
* Material used:
70% PC+30% ABS (flame retardant grade: V0)
Product Images:
