Self Adhesive Flat Bag Labeling Machine Printer Sticker For Cardboard Box Square Bottle

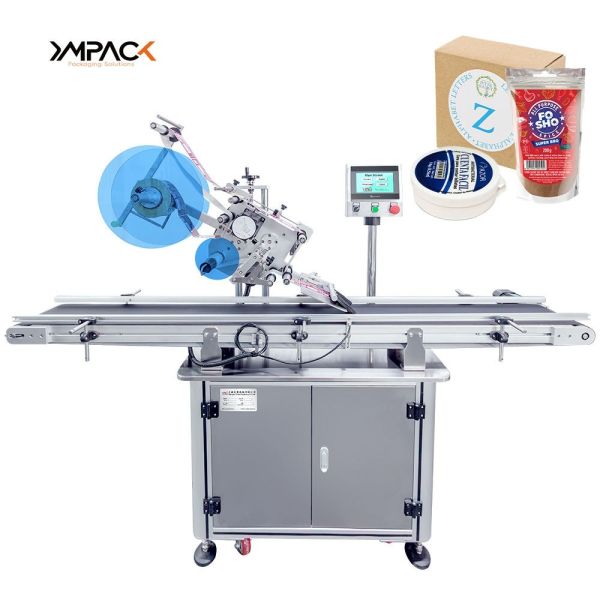

The YM210 Automatic Flat Surface Labeling Machine represents two decades of labeling engineering distilled into a single, high-performance desktop solution. Designed and manufactured by YIMUPACK, this machine addresses the most persistent point in modern packaging lines: consistent, high-speed label application across diverse flat surfaces without operator fatigue or quality drift.

Whether you run a food packaging facility, a cosmetics contract manufacturing line, an electronics assembly plant, or a pharmaceutical packaging operation, the YM210 delivers labeling precision within ±0.5 mm at throughput speeds reaching 100 pieces per minute. This is not merely a labeling tool — it is a production-line asset engineered for multi-shift reliability.

Manual labeling introduces three costly variables: inconsistency, slow throughput, and material waste. Even semi-automated systems designed for cylindrical bottles struggle when presented with flat boxes, pouches, foil bags, foam containers, or rigid panels. The YM210 is purpose-built for flat surfaces — its labeling head geometry, sensor array, and peel-blade design are optimized for planar substrates, not adapted from a round-bottle architecture. This means fewer misapplied labels, less rework, and dramatically lower consumable waste within the first month of deployment.

The YM210 integrates an advanced photoelectric sensor system that detects product edges and positions with micron-level repeatability. Once calibrated, the machine maintains ±0.5 mm label placement accuracy across thousands of consecutive cycles. For brands where barcode scannability, regulatory compliance, or premium shelf presentation matter, this precision is non-negotiable.

Capable of 30 to 100 pieces per minute, the YM210 adapts to both low-volume artisan runs and high-throughput contract packaging. The PLC-controlled stepper or servo-driven label feed synchronizes label dispensing with conveyor speed in real time, so acceleration and deceleration never cause label bunching, tearing, or misalignment.

Every structural panel, the conveyor bed, and all product-contact surfaces use 304-grade stainless steel. This delivers inherent corrosion resistance for food, beverage, and chemical environments, plus a clean aesthetic that passes third-party facility audits. Internal mechanical components are CNC-machined from billet aluminum alloy with anodized surface treatment, ensuring gears, cams, and drive shafts maintain dimensional stability over years of operation.

The touchscreen HMI allows operators to store and recall multiple labeling recipes. Switching from a 100 mm × 60 mm paper box to a 250 mm × 180 mm foam tray takes under ten minutes, with all parameters — conveyor speed, label feed delay, peel-blade position, and sensor threshold — restored from memory. For contract packagers running 15 different SKUs in a single shift, this feature alone eliminates hours of changeover time weekly.

1. Product Feeding: The operator places the product onto the in-feed conveyor. Optional feeding and collecting turntables automate this step for continuous operation.
2. Edge Detection: As the product advances, a photoelectric sensor registers the leading edge and signals the PLC.
3. Label Dispensing: The PLC calculates the precise delay based on conveyor encoder feedback and triggers the label feed motor. The label is peeled from the liner and presented at the peel blade.
4. Application: A synchronized pressure roller or brush assembly presses the label onto the product surface, smoothing from center to edge to eliminate bubbles.
5. Collection: The labeled product continues along the out-feed conveyor and is collected manually or via the optional collecting turntable.

YIMUPACK brings 20 years of labeling-industry specialization to every machine. A 68+ person core team includes a 10–20 engineer R&D group dedicated exclusively to labeling and packaging automation. This is not a general automation company that happens to sell labelers — labeling is the entire focus.

Over 10,000 projects have been delivered to customers across 80+ countries, including Australia, the United States, Canada, Spain, South Korea, Singapore, Malaysia, Vietnam, Thailand, and South Africa. Local after-sales service points in key markets ensure response times measured in hours, not days.

Every YM210 undergoes a full mechanical run-in, labeling speed verification, angle calibration, and bottle-type compatibility test before crating.

Q: What is the minimum and maximum product size the YM210 can handle?

A: The YM210 can label products of virtually any size with a flat surface. The conveyor and labeling head are adjustable, and custom tooling can be designed for unusual geometries. Contact our engineering team with your specific product dimensions for a compatibility assessment.

Q: Can the YM210 print expiration dates or batch codes during labeling?

A: Yes. Optional add-ons include a hot-stamp coder, inkjet printer, or thermal transfer overprinter that integrate directly with the labeling head. Date, lot number, and barcode data can be printed and applied in a single pass.

Q: Does YIMUPACK provide installation and training support?

A: Every machine ships with a comprehensive installation manual and step-by-step video tutorials. Online video technical support is available on demand, and for larger installations, on-site commissioning by YIMUPACK engineers can be arranged.

Q: What is the warranty coverage?

A: The YM210 carries a 2-year warranty on the complete machine. Core components including the PLC controller, HMI touchscreen, and servo/stepper motors that fail due to non-human factors within the warranty period are replaced free of charge. Spare parts are stocked in regional service hubs for immediate dispatch.

Contact YIMUPACK today for a customized quotation, video demonstration, or to discuss your specific labeling requirements with our engineering team.
