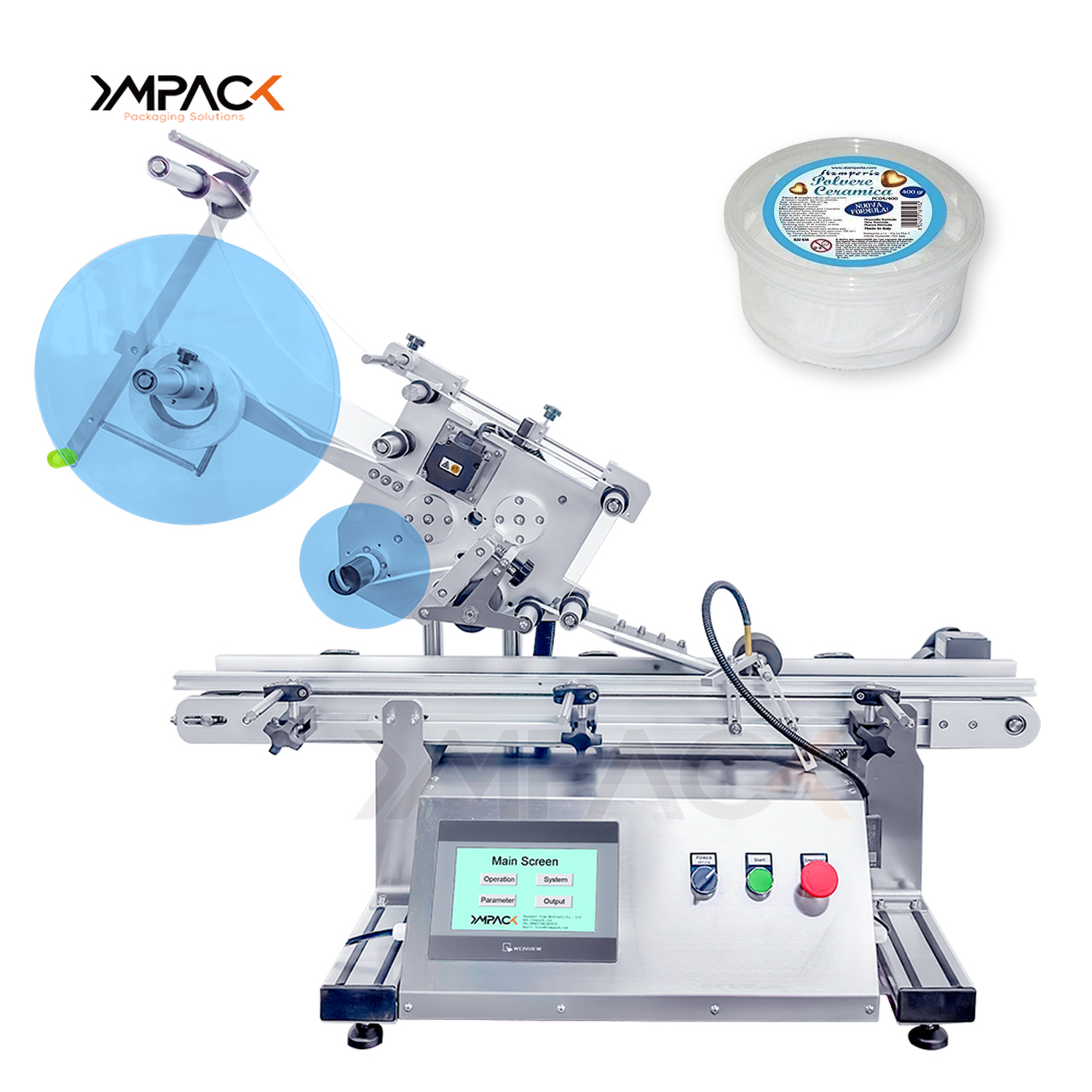

Bentchtop Industrial Automatic Labelling Machine Applicator For Flat Surfaces Resealable Bag

Precision labeling separates professional packaging from amateur output. A label that's crooked by even 2 millimeters catches the consumer's eye for the wrong reason — it signals poor quality control and undermines brand perception. The YM400 High Precision Automatic Labeling Equipment solves this with sensor-driven placement accuracy of ±1 mm, backed by industrial-grade components and CNC-machined construction that maintain that precision through years of high-volume operation.

The YM400 achieves its labeling precision through a combination of carefully integrated subsystems:

Photoelectric sensor positioning. A high-sensitivity photoelectric sensor detects the leading edge of each product as it travels down the conveyor. Unlike mechanical triggers that wear and drift over time, the optical sensor maintains consistent detection accuracy indefinitely. The sensor triggers the label dispensing head at the exact microprocessor-calculated moment for precise placement.

PLC closed-loop control. The Programmable Logic Controller — sourced from leading international brands — continuously monitors conveyor speed, sensor input, and label dispense timing. Any variation in conveyor speed is instantly compensated for in the label application timing, ensuring that the label lands in the same position whether you're running at 30 or 100 pieces per minute.

CNC-machined components. Every mechanical part in the YM400 is CNC precision-machined to tight tolerances. This ensures that guide rails are perfectly parallel, rollers are perfectly concentric, and the label path is perfectly aligned — eliminating the mechanical slop that causes label drift in less precisely manufactured machines.

The YM400 is not built with generic, no-name electrical parts. YIMUPACK can source components from internationally renowned brands according to customer needs.

• PLC Controllers: Mitsubishi
• HMI Touchscreens: Weinview (Weilun)
• Sensors: Keyence, Omron
• Drives & Inverters: Danfoss, Yaskawa
• Electrical Protection: Schneider
• Pneumatics: SMC

This commitment to branded components means spare parts are globally available, technical documentation is accessible, and local technicians can service the machine without needing proprietary knowledge of obscure parts.

The YM400's frame is fabricated from 304 stainless steel, a material chosen for its corrosion resistance, structural rigidity, and clean aesthetic that doesn't degrade. Complementing the SS304 are aluminum alloy components with oxide surface treatment, which provide lightweight strength with excellent wear characteristics.

Together, these materials deliver:

• Rust-free operation — even in humid production environments
• Corrosion resistance — compatible with food, cosmetic, and chemical production settings
• Thermal stability — dimensional accuracy maintained across temperature fluctuations
• Clean appearance — the machine looks professional on day one and day one thousand

Every YM400 undergoes a rigorous 24-hour pre-shipment testing protocol:

1. Mechanical run-in — continuous operation to seat bearings, verify belt tension, and confirm structural stability
2. Speed calibration — labeling speed verified across the full 0–100 pcs/min range
3. Accuracy verification — label placement measured against ±1 mm specification using actual product samples
4. Multi-product compatibility — tested with the customer's product samples (when provided) to ensure real-world performance

This testing catches potential issues before the machine leaves our factory, significantly reducing on-site commissioning time.

Q: How does the YM400 maintain ±1 mm accuracy at maximum speed?

A: The PLC controller continuously synchronizes the conveyor speed with the label dispense timing. When you increase the speed via the HMI, the label head servo accelerates proportionally, maintaining the same relative timing and placement accuracy. The closed-loop control system compensates for any speed fluctuations in real time.

Q: Can the YM400's sensor detect transparent or reflective products?

A: The standard photoelectric sensor works best with opaque products. For transparent bottles, clear plastic packaging, or highly reflective surfaces, we offer an optional transparent product sensor module that uses specialized optics to reliably detect these challenging materials.

Q: How often does the YM400 require calibration or maintenance?

A: Routine maintenance is minimal: keep the guide rails and conveyor belt clean, periodically check label roll tension, and inspect sensor lenses for dust accumulation. The machine does not require periodic recalibration — once set up, the PLC maintains positioning parameters. We recommend a general inspection every 500 operating hours.

Q: What environmental conditions does the YM400 require?

A: The YM400 operates reliably in standard indoor production environments: 0–40°C ambient temperature, 20–90% relative humidity (non-condensing). It does not require compressed air, special ventilation, or vibration-isolated mounting. A stable, level work surface and a standard power outlet are all that's needed.

Engineers and production managers: contact YIMUPACK for detailed CAD drawings, electrical schematics, and integration specifications. We'll work with your technical team to ensure seamless deployment of the YM400 into your production environment.
