Multifunctional Automatic Bottle Capping Machine Glass Plastic Monoblock Bottling Machine

Multifunctional CM300 Automatic Six Wheel Capping Machine Glass And Plastic Bottle Capping Machine Perfume

High-speed continuous capping equipment for lug twist-off caps, perfect for medium-to-large batch food, cosmetic, pharmaceutical production lines.

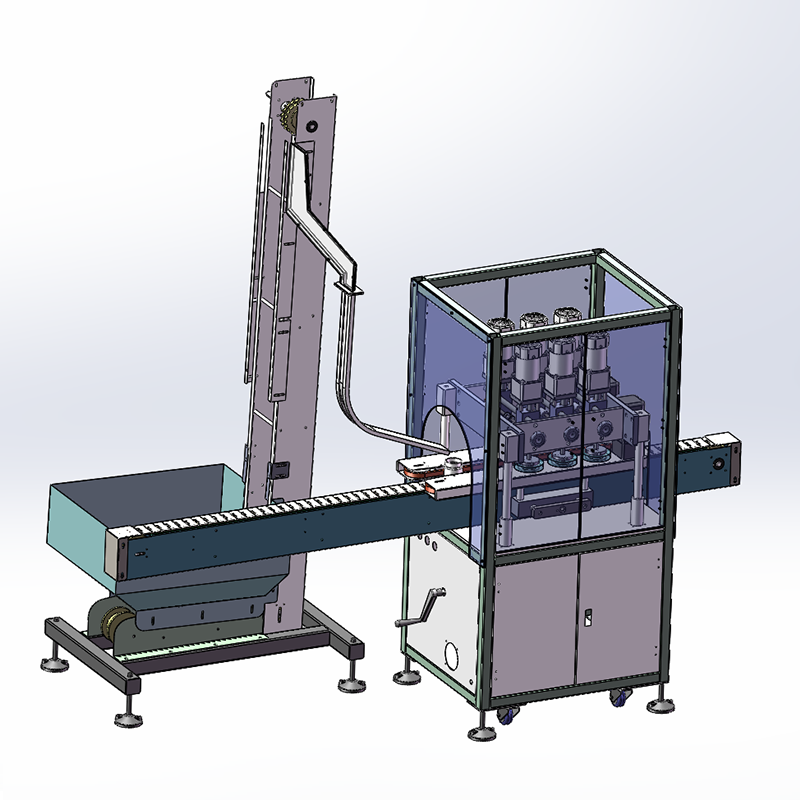

The YIMU CM300 6-head lug cap capping machine is an upgraded high-output rotary capping solution optimized from our classic CM300 automatic lug cap feeder unit. It integrates auto cap sorting, cap hanging, six-station synchronous rotary screwing and finished bottle conveying into one seamless automated workflow, eliminating manual cap placement and drastically cutting labor costs.

Unlike low-efficiency single or triple-head capping devices, our six-head rotary design delivers stable, continuous high-speed operation without bottle tipping, cap slipping or uneven tightening. Every component touching bottles and caps is constructed from SUS304 stainless steel and food-grade silicone, fully compliant with GMP hygiene standards for food, beverage, cosmetics and pharmaceutical manufacturing.

Equipped with a full PLC intelligent control system and color touch HMI, this machine supports one-click parameter switching between different bottle and cap sizes. Built-in safety sensors trigger auto-stop for missing bottles, missing caps, tilted caps and overload torque to guarantee a pass rate above 99.5%. It can operate 24/7 non-stop for mass production and seamlessly connect with filling machines, labeling machines, inkjet coders and bottle washers to form a complete automated packaging line.

Six independent rotating capping stations work simultaneously, delivering a production speed of 3,000 to 6,000 bottles per hour—more than double the output of standard 1/3-head capping machines. The circular rotary transport track ensures stable bottle movement, zero falling bottles and consistent capping pressure for long-duration mass manufacturing.

Comes with a standard vibration cap sorting tray as an integrated unit. It automatically arranges, aligns and rejects reversed caps, then accurately hangs caps onto bottle necks without human intervention. The cap feeder runs synchronized with the main capping body, avoiding cap shortages or misalignment during high-speed running.

Machine frame, conveyor chain, cap feeder tray and bottle clamping fixtures are all made of SUS304 stainless steel. Gripping parts use food-grade silicone that resists corrosion, high temperature and chemical cleaners. The smooth surface is easy to rinse and sanitize, meeting strict hygiene requirements for food, jam, honey, sauce, skincare and oral liquid pharmaceutical workshops.

Multilingual color touchscreen human-machine interface stores multiple product parameter recipes. When switching bottle or cap specifications, operators only adjust height, width and torque via handwheels without complicated mold replacement. Multiple built-in protection functions: no bottle no capping, missing cap alarm, overload shutdown, fault code self-diagnosis for quick troubleshooting.

All core driving components (servo motors, PLC, reducers, frequency converters) adopt top international brand parts for stable 24-hour continuous running. The mechanical structure is simplified for easy disassembly, cleaning and quick replacement of wearing parts. We provide a 2-year warranty on all core components and lifetime remote technical support.

Fully tested and certified to EU CE mechanical and electrical safety standards. Complete inspection reports and export documentation are supplied for smooth customs clearance to Europe, North America, Southeast Asia, the Middle East, Australia and other global markets.

We offer custom engineering services including custom machine dimensions, modified cap feeder trays, explosion-proof motor upgrades, vacuum exhaust capping modules, extended conveyor belts, one-side/two-side bottle infeed and custom logo printing on the machine frame.

This capper can be matched with automatic filling machines, bottle washing machines, labeling machines, coding printers and carton packing machines to build a fully unmanned end-to-end filling and capping production line.

• Food & condiment: Honey jars, jam bottles, sauce cans, pickle glass jars, edible oil bottles
• Cosmetics & daily chemicals: Cream jars, essential oil bottles, lotion bottles, skincare containers
• Pharmaceutical industry: Oral liquid bottles, syrup jars, medicinal ointment tubes
• Household chemical products: Detergent bottles, disinfectant cans, cleaning agent containers

Metal lug twist-off caps, plastic lug caps, threaded plastic screw caps, composite sealing caps

Transparent glass bottles/jars, PET plastic bottles, metal tin cans

1. Free online one-on-one technical training after machine delivery
2. 24/7 remote video troubleshooting & technical guidance
3. Overseas engineer on-site installation & commissioning service (extra cost available)
4. Long-term supply of original spare parts at factory cost price
5. 2-year free warranty for all core electrical & mechanical components
6. Free technical drawing and operation manual in English
