High Speed SUS304 Automatic Round Bottle Labeling Equipment Application Machine

High Speed Automatic Round Bottle Labeling Machine Food And Cosmetic Bottle Label Applicator With OEM ODM Services

YM510 high-speed automatic round bottle labeling machine with 2000-6000 BPH throughput, ±0.8mm accuracy, blue sponge belt labeling head. PLC, sensors, 304SS construction. CE & SGS certified.

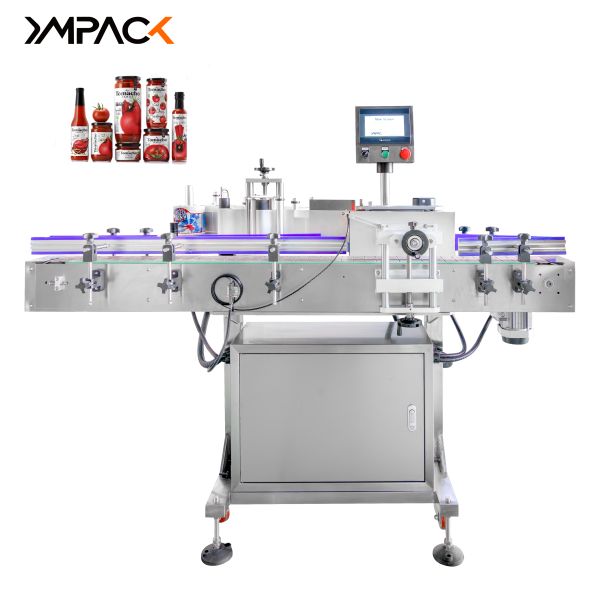

When production scales beyond benchtop solutions, labeling must keep pace with filling lines running at thousands of bottles per hour. The YM510 high-speed automatic round bottle labeling machine is engineered for exactly this demand — a floor-standing, conveyorized system delivering up to 6,000 bottles per hour of consistent wrap-around labeling with ±0.8mm placement accuracy. Designed for integration into filling and packaging lines or standalone use, the YM510 combines industrial throughput with the operational simplicity and component quality that define YIMUPACK's labeling machinery.

The machine's intelligent control system continuously synchronizes the labeling head speed with the conveyor belt speed. This adaptive synchronization means labeling quality remains consistent even as the conveyor accelerates or decelerates — no label skew from speed mismatches, no missed labels from timing drift. The system automatically detects label dimensions and bottle diameter, setting appropriate parameters without manual measurement or trial-and-error adjustment.

• Rotating PLC Touchscreen Control Panel The HMI is mounted on a rotating arm, allowing the operator to position the screen for optimal visibility and access regardless of which side of the production line they are working from. This ergonomic detail reduces operator fatigue during long production shifts and facilitates multi-operator workflows where different personnel access the controls from different positions.
• Double-Sided Adjustable Labeling System The labeling head assembly adjusts in both horizontal and vertical axes, accommodating bottles of different heights and diameters without requiring mechanical modification. For products with unusual geometries or demanding positioning requirements, an optional universal adjustable head extends this range further.
• Adaptive Conveyor Speed Synchronization The control system continuously monitors conveyor belt speed and adjusts the label feed rate to maintain perfect synchronization. When the filling line speeds up, the labeling follows automatically. When it slows, the labeler matches. This capability is essential for integration with variable-speed production lines.
• Integrated Electrical Cabinet All electrical components are housed in a highly integrated, rationally laid-out cabinet that complies with EU safety standards. The organized layout simplifies maintenance, improves heat dissipation, and ensures that electrical connections remain secure despite the vibration inherent in high-speed operation.

The YM510 handles round and oval containers across food, beverage, pharmaceutical, daily chemical, cosmetic, and industrial sectors — mineral water bottles, glass juice containers, wine bottles, sauce jars, canned goods, shampoo and detergent bottles, pharmaceutical vials, chemical containers, paint cans, and any other cylindrical packaging format. The maximum bottle diameter of 120mm and label height of 310mm accommodate formats from small vials to large-format industrial containers.

• Q: What is the difference between the YM510 and YM515 models? A: The YM515 adds a positioning function that detects a specific feature on the bottle (such as a seam, mold line, or registration mark) and orients the label to that feature. This enables label placement at a specific rotational position rather than random orientation. The YM510 applies labels uniformly around the circumference without orientation-specific placement. For applications requiring the label to align with a bottle seam, front face, or other positional reference, the YM515 is the appropriate model.
• Q: Can the YM510 handle both glass and plastic bottles on the same machine? A: Yes. The machine's recipe storage system preserves separate speed and pressure parameters for each container type, allowing seamless switching between glass wine bottles, PET water bottles, HDPE chemical containers, and any other round format.
• Q: What is the maximum label height this machine can apply? A: The YM510 handles label heights up to 310mm — significantly more than standard labeling machines, which typically max out at 200-240mm. This extended height capability is valuable for large-format containers, promotional wrap labels that cover most of the bottle body, and industrial product packaging where extensive information must be presented on a single label.
• Q: How does the machine's automatic label and bottle detection feature work? A: When a new product is introduced, the YM510's sensors can automatically measure the label length by detecting the gap between successive labels on the backing web, and measure the bottle diameter through the bottle detection sensor's positioning. The PLC calculates appropriate initial parameters and applies them. The operator can then fine-tune these auto-detected values through the HMI if needed. This feature is particularly valuable for operations running many SKUs where manual measurement of each would be time-consuming.
• Q: What are the power configuration options for different countries? A: The YM510 is available in 220V/50Hz and 110V/60Hz configurations to match regional electrical standards. The machine's power consumption is 700W — modest for its throughput class, contributing to low operating cost. Custom voltage and phase configurations can be accommodated through the OEM/ODM process for specific market requirements.
• Q: Can YIMUPACK provide integration support for connecting the YM510 to an existing filling line? A: Yes. YIMUPACK's application engineering team can assess your existing line configuration and provide guidance on mechanical interface (conveyor height matching, guide rail transitions) and electrical interface (start/stop signals, speed synchronization, fault interlocks). The YM510's control system supports standard industrial I/O for line integration. Remote commissioning support via video call is included; on-site integration support is available as a quoted service.
• Q: How does YIMUPACK's manufacturing quality ensure long service life for the YM510? A: The YM510's frame and panels are fabricated from SUS304 stainless steel for corrosion resistance. All mechanical components are CNC-machined for dimensional consistency. Each machine undergoes a 24-hour test before crating, verifying sustained performance across the full speed range.
• Q: What shipping and delivery timeline should I expect for a YM510 order? A: Standard configuration YM510 machines typically ship within 15-25 working days after order confirmation. Custom-configured machines may require 25-35 working days. The machine is packed in a wooden crate with internal pallet base (packing dimensions approximately 2,100 × 900 × 1,300 mm, gross weight 280 kg). Sea freight transit time varies by destination (15-40 days typical). Air freight is available for urgent requirements at additional cost.

Scale your labeling throughput with industrial-grade speed and precision. Contact YIMUPACK for a YM510 quotation configured to your production requirements.
