Integrated Gas Fire Suppression Systems With No Power Required For Data Centers

1. Product Introduction

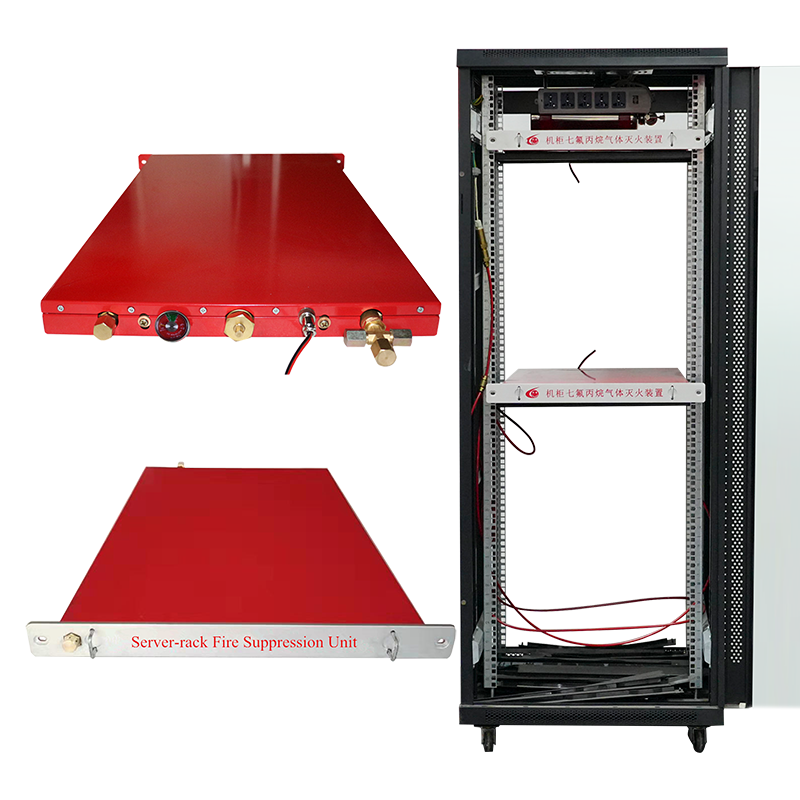

The Server-Rack Fire Suppression Unit is an innovative automatic fire suppression system independently developed by our company. It is specifically designed for protecting equipment cabinets and enclosures. This unit is also known as a temperature‑sensing detection and extinguishing integrated device or a pre‑engineered fire extinguishing unit.

The unit integrates the following components into a single, self‑contained assembly:

• Fire extinguishing agent storage vessel

• Delivery piping and discharge nozzle

• Enclosure housing

• Pressure indicator

• Fire detector(s)

• Signal feedback device

One Server-Rack Fire Suppression Unit can protect a single equipment cabinet or, depending on the configuration, multiple cabinets within a defined enclosure.

Fire Extinguishing Agent Options

The device can be charged with either of the following clean agents:

• HFC-227ea (FM200)

• FK-5-1-12 (Novec 1230)

Both FM200 and Novec 1230 are clean gas extinguishing agents that operate primarily through chemical fire suppression, supplemented by physical cooling effects. They are colourless, odourless, low‑toxicity, non‑conductive, and leave no residue on protected equipment. They will not cause damage to property or precision facilities. With relatively low extinguishing concentrations, they provide reliable suppression for Class B fires, Class C fires, and electrical fires.

Detection Technology

The Server-Rack Fire Suppression Unit incorporates two independent detection methods:

1. Temperature‑sensing glass bulb

2. Fire detection tube

This design eliminates the need for a conventional fire detection system comprising smoke detectors, heat detectors, and a separate fire control panel. Our integrated approach offers the following benefits:

• Enhanced detection and extinguishing performance

• Better adaptability for installation within equipment cabinets

• Reduced space requirements

• No interference with existing cabinet components or airflow



2. Applications

The Server-Rack Fire Suppression Unit is suitable for the following applications:

3. Working Principle

The Server-Rack Fire Suppression Unit offers two temperature‑base0d activation modes:

Mode 1: Temperature‑Sensing Glass Bulb

When the ambient temperature inside the protected enclosure reaches the rated activation temperature of the glass bulb (standard setting: 68°C, with other temperature ratings available upon request), the bulb bursts instantly. This opens the agent release port, and the stored gas extinguishing agent is immediately discharged through the nozzle. The agent cools the protected area and suppresses the fire.

Mode 2: Fire Detection Tube

When the detection tube is exposed to a heat source and reaches its activation temperature (160°C ± 10°C), the pressurised gas inside the tube expands rapidly. The tube then ruptures at the point of highest temperature (the fire origin). This pressure drop activates the storage vessel, and the extinguishing agent is discharged through the rupture point of the tube, providing localised cooling and fire suppression.

4 Main technical parameters and characteristics

4.1 Model and specifications of server-rack fire suppression unit

4.2 Technical parameters of fire detecting tube

About Us:
  Guangzhou Xingjin Fire Equipment Co., Ltd. is a professional enterprise dedicated to the research, development and production of HFC-227ea (FM200), Novec1230, CO2 and inert gas products. For many years, the company has been committed to improving product quality, enriching product varieties and optimizing product specifications.
  At present, our company's popular FM200 products are widely used, such as: pipe network FM200 fire extinguishing system, cabinet FM200 fire extinguishing system, automatic FM200 fire extinguisher (ceiling type), fire detection tube fire extinguishing system, and automatic fire extinguishing pipe. In addition, our inert gas fire extinguishing systems are also becoming increasingly popular, such as the IG541 (nitrogen) fire extinguishing system, IG100 (nitrogen) fire extinguishing system, and IG55 (argon) fire extinguishing system. Due to our high-quality products and services as well as our good reputation, our company is highly praised by customers all over the world.

Our factory:
  The factory is divided into multiple areas, mainly used for the production of gas cylinders, gas filling, product inspection, goods packaging, storage of goods, sample display, etc. We have our own professional production and testing equipment, such as bottle washing machines, dryers, valve loaders, gas filling machines, etc

Our products:
  HFC-227ea (FM200), Novec1230, CO2 and inert gas series products (such as pipe network, suspended, external pressure storage, cabinet, integrated cabinet, fire detection pipe, portable fire extinguisher, gas cylinder), fire extinguishing pipe, complete alarm system, foam fire extinguishing series (such as vertical/horizontal foam tank, foam agent, filling machine, fire cannon), hot aerosol and other fire extinguishing equipment .

Our services:
   We have a professional and mature team, including a solution design team, a skilled installation team, a quality inspection team and an after-sales service team.


Our honors:
   Since its establishment in 2010, the company has won numerous praises and honors. In 2014, it was awarded the title of "AA-level Credit Company" by the China Fire Protection Association. In addition, all of our products have passed the CCC test and have relevant certificates for each product.


The main market:
  Our target customers are people all over the world who need fire-fighting equipment. So far, we have rapidly developed the market in Southeast Asia, the Middle East and Africa, and have received high praise from a wide range of customers. In the coming years, we will strive to explore other foreign markets.

We are ready for challenges, so please do not hesitate to send an inquiry to us!
