ZLINE Industrial Laminated Cube Bread Production Line

Automated Turnkey Solution for Commercial Mille-Feuille Toast & Danish Pastry Loaves

The ZLINE Industrial Laminated Cube Bread Production Line is engineered for the high-capacity, fully automated manufacturing of premium flaky cube toast, Danish block bread, and multi-layer mille-feuille sandwich loaves. Utilizing an advanced, stress-free dough sheeting and fat enclosing method, the ZLINE system preserves the sensitive gluten matrix while creating uniform, multi-layered pastry dough structures. Constructed entirely from food-grade SUS304 stainless steel and regulated via a centralized PLC control system with programmable touch-screen recipe storage, this heavy-duty laminating and make-up plant ensures seamless transition from a raw dough block to precisely segmented, tray-loaded toast embryos ready for commercial baking ovens.

Step-by-Step Processing Stages & Mechanical Layout

1. Stress-Free Dough Band Forming & Transport

The production sequence initiates at the heavy-duty cutting hopper and an inclined elevating conveyor. The raw dough mass is discharged into the dough band forming device, where a sequence of satellite rollers compresses the dough into a continuous, uniform sheet. This stress-free reduction method prevents over-stretching and cellular breakdown of the dough, ensuring consistent elasticity, density, and gas retention across the entire conveyor width.

2. Automated Fat Pump & Butter Enclosing

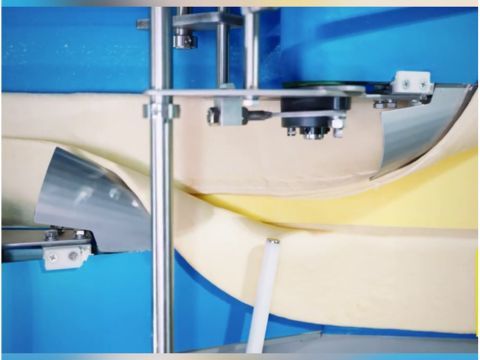

A synchronized, industrial-grade fat pump (butter depositor) extrudes a calibrated, flat layer of pastry fat or butter directly onto the moving dough band. The integrated folding shoes wrap the outer edges of the dough over the fat core, achieving complete, secure fat enclosing (butter enclosing) without leaking edges, guaranteeing an even distribution of fat-to-dough ratios.

3. Multi-Stage Gauging & Dynamic Folding

The enclosed dough band moves progressively through a series of multi-roll devices, where it undergoes calibrated thickness reduction. The sheeted band is then directed to the laminating device, utilizing a dynamic reciprocating swinging arm (feeding & folding mechanism) to drop and overlap the dough layers onto the lower belt. This precise mechanical stacking creates the initial multi-layer laminated structure essential for the distinct "tree-ring" inner pattern of mille-feuille toast.

4. Calibrated Multi-Roller Reduction & Flour Dusting

The laminated dough block passes through subsequent multi-roll devices and an integrated double-roll gauging device. To prevent belt adhesion and maintain a pristine surface finish, automated flour dusters distribute a fine, controlled layer of dusting flour onto both the top and bottom surfaces. The dough sheet is incrementally thinned down to the targeted final millimeter specification without tearing or breaking the nested micro-fat layers.

5. Multi-Row Strip Slitting, Filling Injection & Loaf Rolling

On the extensive make-up platform, the broad dough sheet is divided into multiple parallel tracks via rotating disk cutters. For filled varieties, a multi-nozzle filling injector (depositor) deposits sweet or savory creams, chocolate, or pastes. Immediately following, a specialized stainless steel rolling mesh (dough rolling device) catches the moving strips, rolling them into tight, multi-layered cylindrical loaves.

6. Precision Loaf Alignment & Servo Cutting

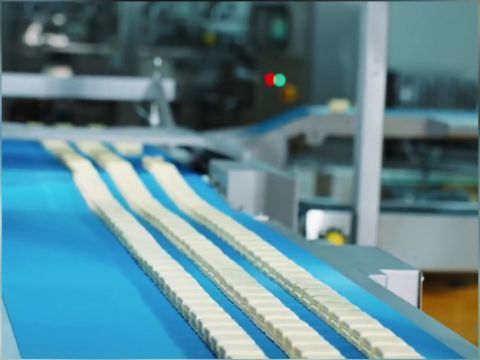

The rolled cylindrical dough streams pass through vertical dough guiding pillars (aligning device) and a specialized leveling pressure roller. These components align and stabilize the loaves before they enter the high-speed servo cut device. The servo-driven guillotine cutter executes precise, high-speed vertical cuts, segmenting the continuous dough strips into identical, crisp-edged cube toast embryos without squeezing or sealing the delicate laminated cross-section.

7. Automated Retracting Panning & Tray Loading

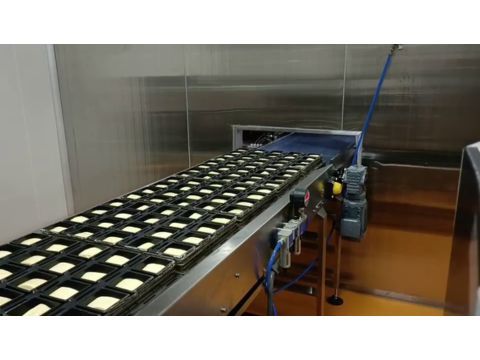

The segmented cube toast embryos are transferred to a high-speed retracting panning conveyor machine. The retracting nose precisely deposits the raw embryos in a perfectly squared, multi-row matrix directly into waiting toast baking tins or baking trays. This eliminates manual handling, ensures zero product deformation, and preps the batch for immediate final proofing and commercial baking.

Key Engineering Advantages

• Modular Design for Product Flexibility: The ZLINE make-up platform is highly customizable. By changing the cutting tools and folding accessories, the line easily switches from large-capacity sandwich tin breads to small-bite Danish pastries, croissants, and filled buns.

• Hygiene and Wash-Down Compliance: Designed for strict industrial food safety regulations, the entire line features a rigid, open-frame stainless steel construction that eliminates food trap corners and allows for fast, efficient wet cleaning.

• Recipe-Driven Automation: The centralized PLC system memorizes operating speeds, roller gaps, and cutting frequencies for various products, enabling rapid product changeovers and reducing downtime between production shifts.
