| Place of Origin: | China |
| Supply Ability: | 20 Sets per month |
| Cleaning Water Pressure: | 0.2-0.3MPa |
| Warranty: | 12 Months |
| Brand Name: | Hongwang |
| Packaging Details: | wooden case |
| Temperature Range: | -30~120℃ |
| Certification: | ISO9001 |
| Item Name: | Circular Turnover Hopper |
| Payment Terms: | ,T/T |
| Delivery Time: | 7- 10 work days |
| Price: | Negotiable |
| Pressure Resistance Of Silos: | -0.1~+0.1MPa |
| Volume: | 150-1000L |
| MOQ: | 1set |
| Material: | Stainless Steel |
| Model Number: | LDC150/400/600/1000 |
| Condition: | Brand New |
| Company Info. |
| Hunan Hongwang Intelligent Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Movable Circular Storage And Transfer Hoppers For Material Conveying
Description:
Stainless Steel Mobile Circular Transfer Hopper is custom-manufactured for pharmaceutical, food and chemical solid preparation production lines, made entirely of high-quality 304 or 316L stainless steel with mirror polished inner and outer surfaces to meet GMP production standards. The upper part adopts cylindrical round structure and the bottom is designed with conical hopper, which ensures smooth blanking without material bridging and residue accumulation, greatly improving raw material transfer efficiency.
Specification:
|

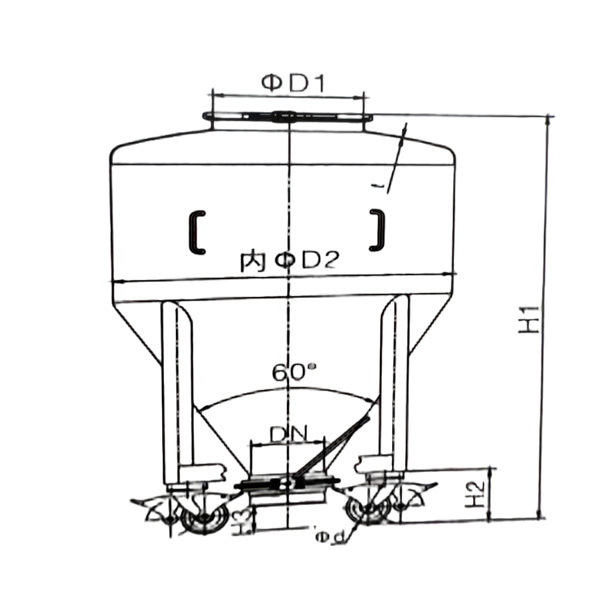

| Main structural dimensions | ||||||
H1 | H2 | H3 | φD1 | φD2 | φd | DN | ||
LDC150 | 150 | 992 | 140 | 167 | 400 | 750 | 100 | 200 |
LDC200 | 200 | 1104 | 140 | 167 | 400 | 750 | 100 | 200 |
LDC300 | 300 | 1106 | 185 | 87 | 400 | 900 | 125 | 200 |
LDC400 | 400 | 1261 | 185 | 87 | 400 | 900 | 125 | 200 |
LDC500 | 500 | 1416 | 185 | 87 | 400 | 900 | 125 | 200 |
LDC600 | 600 | 1468 | 185 | 231 | 500 | 1200 | 125 | 250 |
LDC800 | 800 | 1654 | 185 | 231 | 500 | 1200 | 125 | 250 |
LDC1000 | 1000 | 1654 | 185 | 81 | 500 | 1200 | 125 | 250 |

|
