Containerized LiFePO4 BESS with Automatic Fire Fighting and Smart Temp Control

Categories Energy Storage Cabinet
Model Number: EnerCube3.0
Cooling: Air Cooling
Battery Type: LiFePO4
Technical Support: Send Engineer Team
Place of Origin: China
ESS container: 10ft/20ft/40ft
Payment Terms: MoneyGram,Western Union,T/T,D/A,L/C,D/P
Brand Name: COENG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Containerized LiFePO4 BESS with Automatic Fire Fighting and Smart Temp Control

Containerized LiFePO4 Battery Energy Storage System with Automatic Fire Fighting and Smart Temperature Control
The EnerCube3.0 Container Battery Energy Storage System features an all-in-one modular design that integrates battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), temperature control system (TcS), and intelligent monitoring system (IMS) into a single 20HQ standard container.
EnerCube3.0 Container Battery Energy Storage System overview
Key Features & Benefits
  • All-in-one modular design for simplified installation and maintenance
  • Standard 20HQ container design saves space and facilitates transportation
  • Integrated automatic fire extinguishing system with FM200/Novec1230
  • Smart temperature control with HVAC cooling for battery cabinet
  • Intelligent monitoring system for comprehensive system management
  • Easy hoisting, installation, and maintenance operations
Technical Specifications
TypeP400C860P500C1075P600C1290P700C1505P800C1720
DC Side Parameters
Cell type & capacityLiFePO₄-280Ah
Battery module type1P20S
System configuration4*1P240S5*1P240S6*1P240S7*1P240S8*1P240S
Capacity (BOL)860kWh1075kWh1290kWh1505kWh1720kWh
AC Side Parameters
Grid type3P4W+PE
Rated output power400kW500kW600kW700kW800kW
Rated voltageAC400V
Rated frequency50/60(±5)Hz
Maximum output current577A722A866A1010A1155A
Harmonics<3%(@rated power)
Overload capacity110%, 10mins; 120%, 60s
General Parameters
Isolation transformer: No
Protection level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)
Container anti-corrosion grade: C3
Operation temperature: -20℃~50℃
Relative humidity: 0~95% (non-condensing)
Permissible altitude: <2000m
Cooling method: Battery cabinet: HVAC, Electrical room: forced air cooling
Fire fighting system: FAS & FM200/Novec1230
Noise emission: ≤75dB
Dimension (W*D*H): 20HQ container (6058mm*2438mm*2896mm)
Maximum weight: 24500kg
Communication interface: Ethernet
Communication protocol: Modbus TCP/IP
Warranty: 5 years (can be extended to 10 years)
Certifications
System: UN3536, LVD, EMC, RoHS
Cell: IEC62619, UL1973, UL9540A
PACK: UN38.3
PCS: G99, EN50549, AS4777.2, VDE4105
Product Images

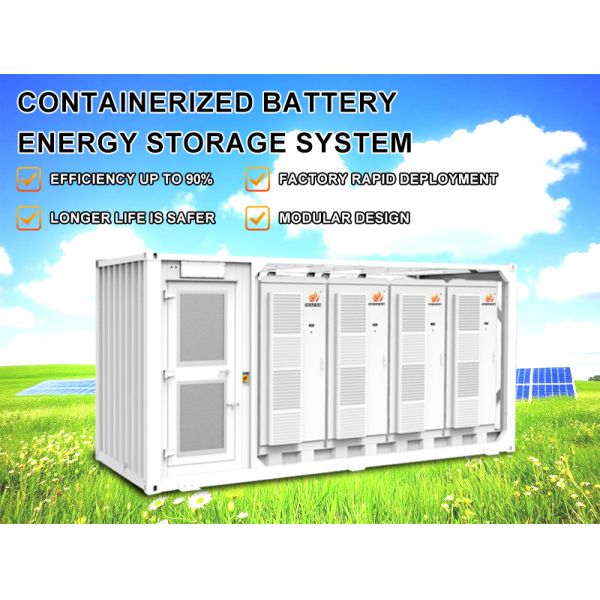

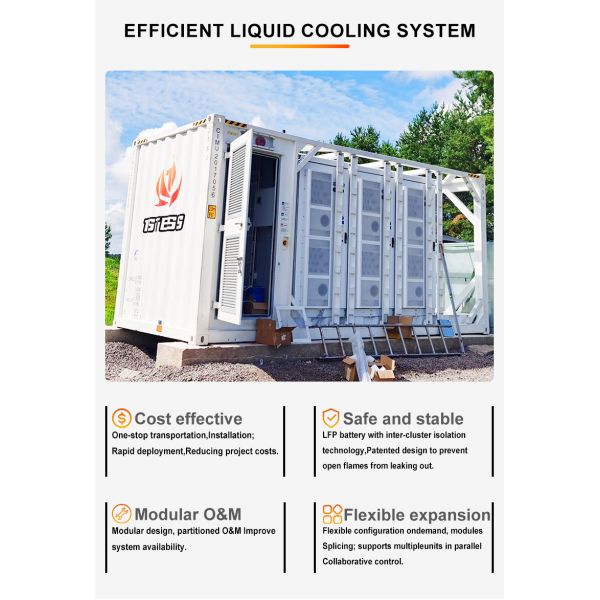

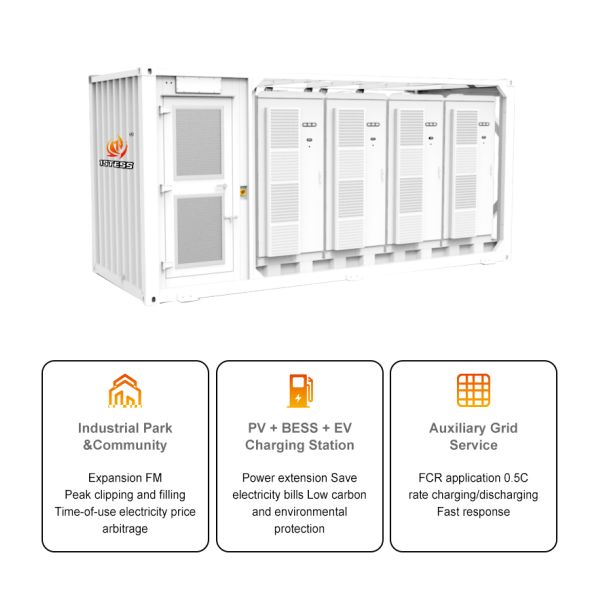

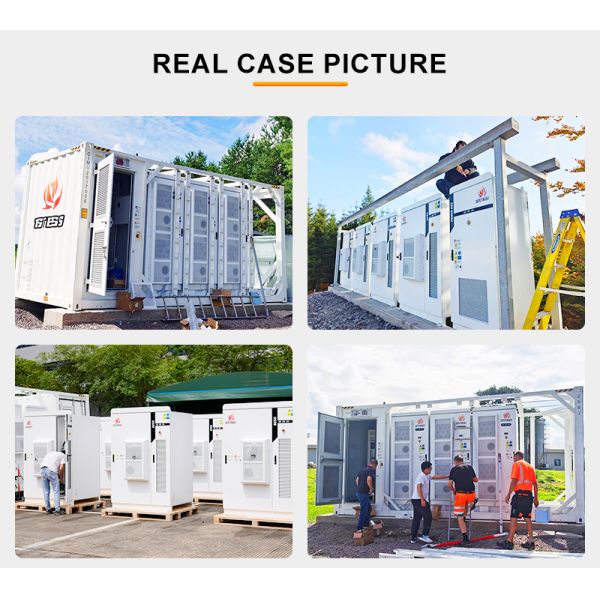

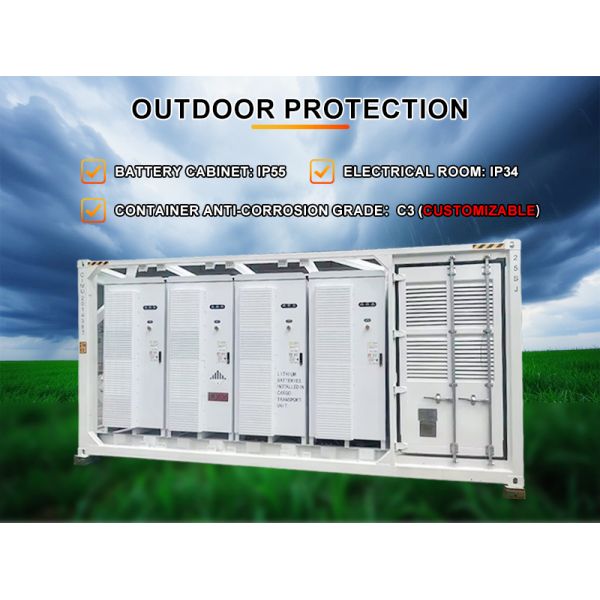

EnerCube3.0 container interior view EnerCube3.0 battery modules EnerCube3.0 electrical components EnerCube3.0 control panel EnerCube3.0 installation example EnerCube3.0 fire suppression system EnerCube3.0 temperature control system EnerCube3.0 monitoring interface EnerCube3.0 external container view
