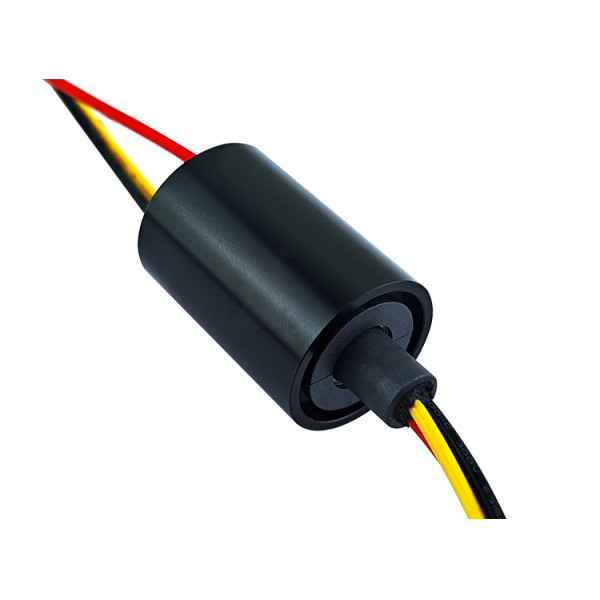

3-channel 5A capsule slip ring with outer diameter 22mm for security and consumer electronics

Q1: What are the advantages of PBT housings compared to aluminum alloy housings?

A: In miniaturized and precision applications, PBT offers significant advantages:

Excellent electrical insulation: It is an insulator itself, requiring no additional insulation treatment.

Lightweight: Its density is lower than aluminum alloys, reducing rotational inertia.

Corrosion resistance: It is resistant to moisture and chemical corrosion.

Cost-effectiveness: It provides a higher cost-performance ratio while meeting performance requirements.

Q2: Can the 3 channels be used for signal transmission simultaneously?

A: Absolutely. The 5A rated current provides ample margin for most industrial signals (such as 4-20mA, 0-10V, RS485, etc.), providing a clean and stable signal transmission path.

Q3: Why is the rated current of AWG22# Teflon wire 5A?

A: The current carrying capacity of AWG22# wire under standard conditions is approximately 7-9A. We have rated it at 5A to provide sufficient safety margin, ensuring long-term safety and reliability of the wire under dynamic bending at 250rpm and potential temperature rise.

Q4: What environments is IP40 protection suitable for?

A: IP40 means it can prevent the ingress of solid foreign objects larger than 1mm in diameter, but it is not waterproof. It is suitable for clean indoor environments such as laboratories, precision assembly workshops, and medical operating rooms. For use in dusty or humid environments, please consult for a higher protection rating.
