Name: RadioMaster TX16S Mark II Radio Controller M2
Brand: radiomaster
Price: 199.99 USD

Home > Lighting Accessories >

RadioMaster - TX16S Mark II Radio Controller (M2)

Categories	RadioLink
Place of Origin:	China, Guangdong China
Workingvoltage:	6.6-8.4vDC
Material:	Metal, Plastic
Age Range:	14 Years & up
Remote control distance::	>2km@22dbm
Gender:	Unisex
Use:	Vehicles & Remote Control Toys
Weight:	750g
Brand Name:	radiomaster
MOQ:	1 set
Price:	$199.99-249.99 / set
Antenna gain:	2db(transmit power adjustable)
Product name:	Radiomaster TX16S MEII MKII MAX
SD card:	256MB by default 8GB maximum
Model Number:	TX16S MEII MKII MAX
Type:	Remote Controller
frequency:	2.400GHz-2.480GHz

Contact Now

Add to Cart

Company Info.

Shenzhen Huasheng Electronic Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Features
Place of Origin	Guangdong, China
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Material	Plastic, Metal
Gender	Unisex
Model Number	TX16S MEII MKII MAX
Weight	750g
frequency	2.400GHz-2.480GHz
Brand Name	radiomaster
Type	Remote Controller
Antenna gain	2db(transmit power adjustable)
Product name	Radiomaster TX16S MEII MKII MAX
Remote control distance:	>2km@22dbm
Workingvoltage	6.6-8.4vDC
SD card	256MB by default, 8GB maximum

RadioMaster - TX16S Mark II Max Radio Controller (M2)

Product Description

Features

Improved internal circuitry and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear-mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Optional high/low rear grips are included for improved ergonomics.
Improved S1/S2 knobs with clear center detents.

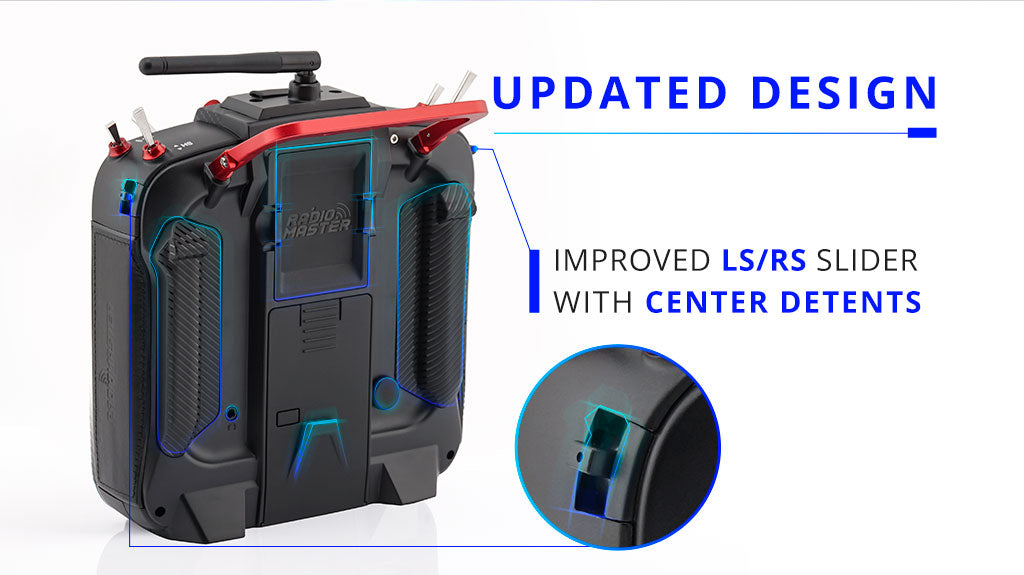

Improved LS/RS Sliders with smoother feel and better center detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalized mods.
Improved internal plastics for better longevity.
Built-in ExpressLRS Backpack and 4in1 versions.

SPECIFICATIONS

Specification

Items: TX16S Mark II Max

Size: 287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHz

Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)

SD card: 256MB by default, 8GB maximum

Antenna gain: 2db (transmit power adjustable)

Working current: 400mA

Working voltage: 6.6-8.4v DC

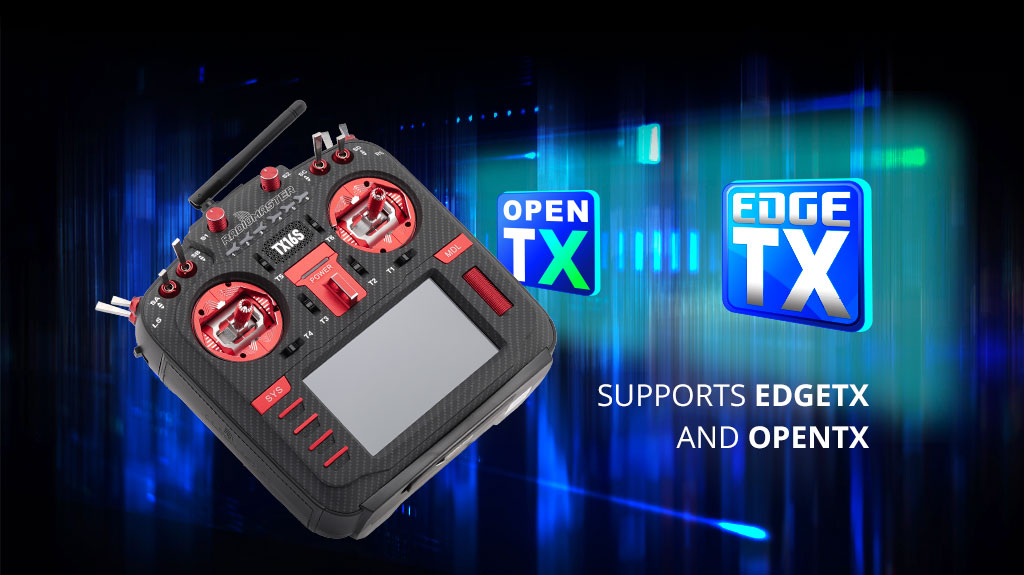

Radio firmware: EdgeTX

Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)

Channels: Up to 16 channels (depending on the receiver)

Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272

Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor

Module Bay: JR compatible module bay

Upgrade method: Supports USB-C online / SD card offline upgrade
