DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine

Categories	DLA engine
Output:	13HP
Cylinder arrangement:	four boxer
Propeller Recommended:	2810,288 ,328 ,2710 2910,2910
Fuel:	Gasoline + 2T synthetic oil
Spark Plug:	DLA CM6,Iridium
private mold:	No
Place of Origin:	Shandong, China
speed range:	1300-6600 RPM
Cylinder Bore/ Stroke:	37MM/30MM
Pulling force:	30KG/1000 Meter altitude
Brand Name:	DLA
MOQ:	2 sets
Model Number:	DLA128
Price:	$1,499.99-1,599.99 / set

Contact Now

Add to Cart

Company Info.

Shenzhen Huasheng Electronic Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

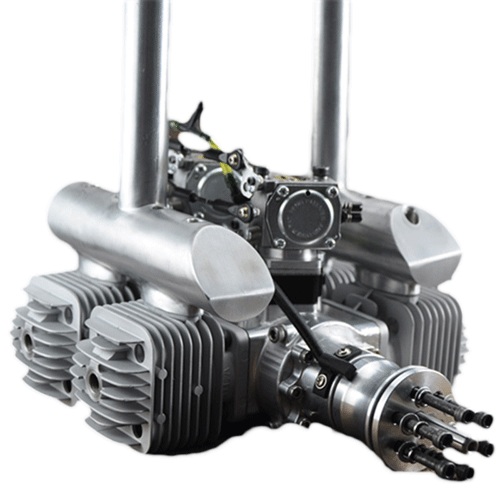

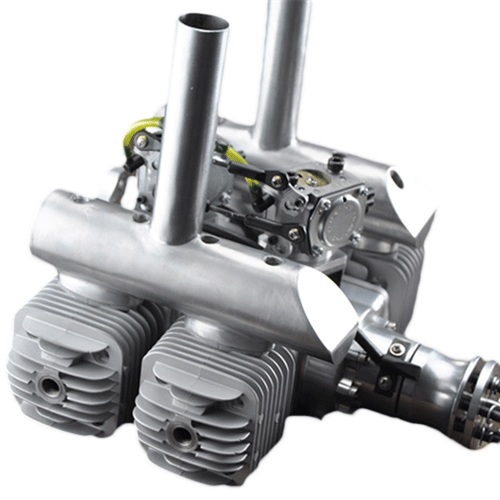

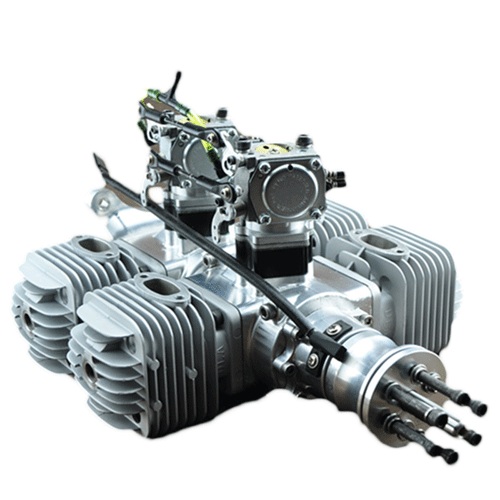

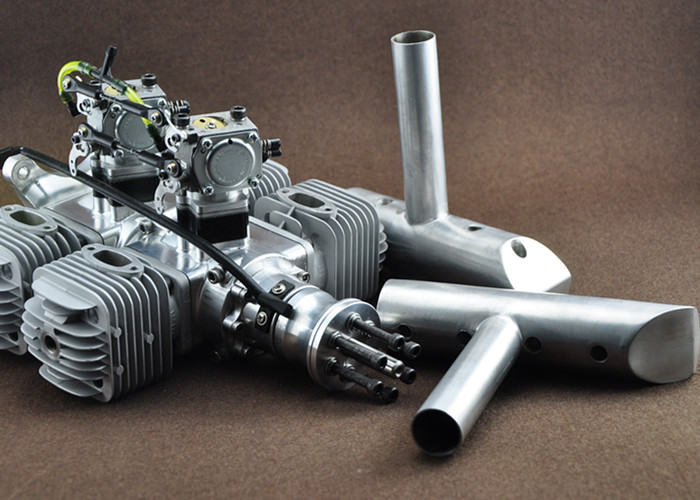

DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine

Product Description

This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 18 KGS. Its crankcase,
crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding.

For detailed information please contact sales:
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782

Specification

Item	Value
Model Number	DLA128
Output	13HP
Cylinder Bore/ Stroke	37MM/30MM
speed range	1300-6600 RPM
Pulling force	30KG/1000 Meter altitude
Cylinder arrangement	four boxer
Fuel	Gasoline + 2T synthetic oil
Lubrication Ratio	25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
ompression Ratio	7.6:1
Propeller Recommended	2810,288 ,328 ,2710 2910,2910
Spark Plug	DLA CM6,Iridium
Voltage	6.6v-8.4v, 2 LiPo batteries recommended.
Weight	Main engine: 3260g Exhaust pipe: 1262g Ignition: 180g Standoffs: 224g
Customization	According to Customer’s need and specifications
