Name: Holybro HFlow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol
Brand: Holybro
Price: 125 USD

Home > Holiday Lighting >

Holybro H-Flow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol

Categories	Holybro Brand
Brand Name:	Holybro
Model:	H type
Weight:	50g
Color:	Balck
Product name:	Holybro H-Flow
MOQ:	1pcs
Material:	Plastic
private mold:	No

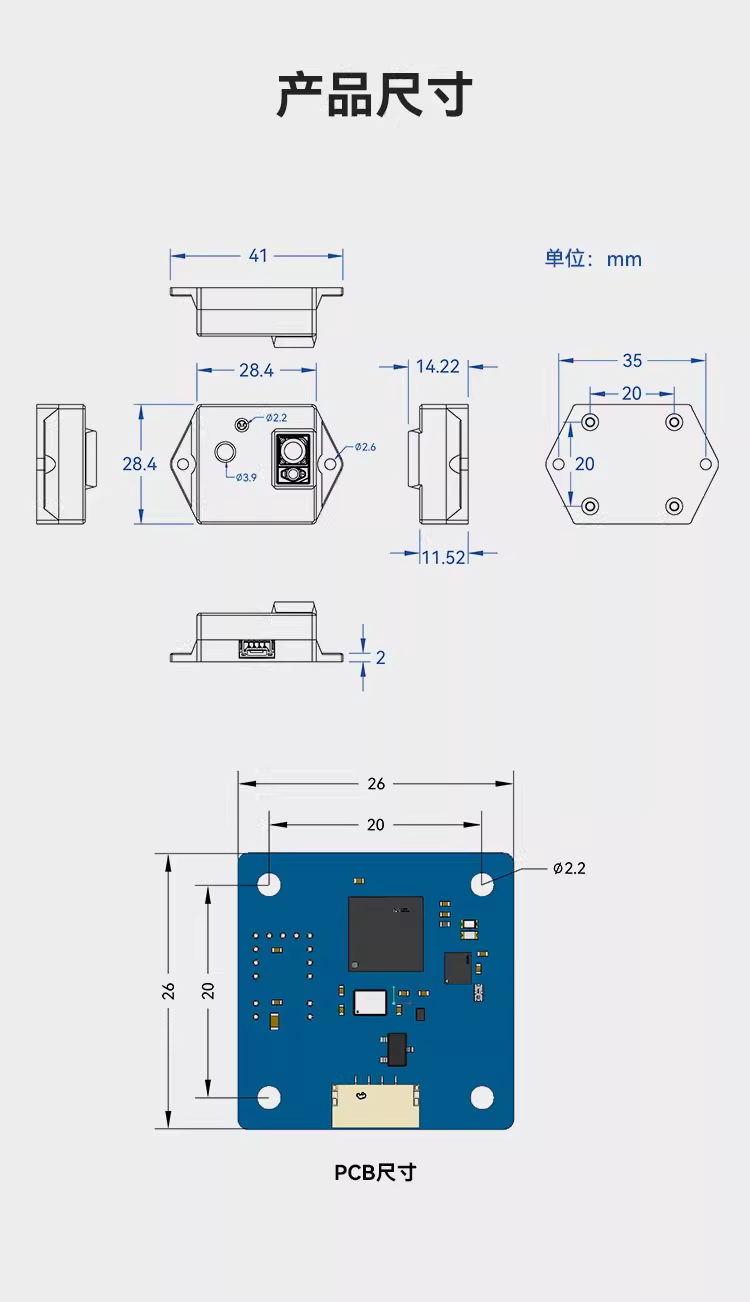

Size:	46.5*40MM
Place of Origin:	Hubei, China
Price:	$125 / piece
MOQ:	1 piece
Suitable for:	RC Parts
compatible brand:	Others

Contact Now

Add to Cart

Company Info.

Shenzhen Huasheng Electronic Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

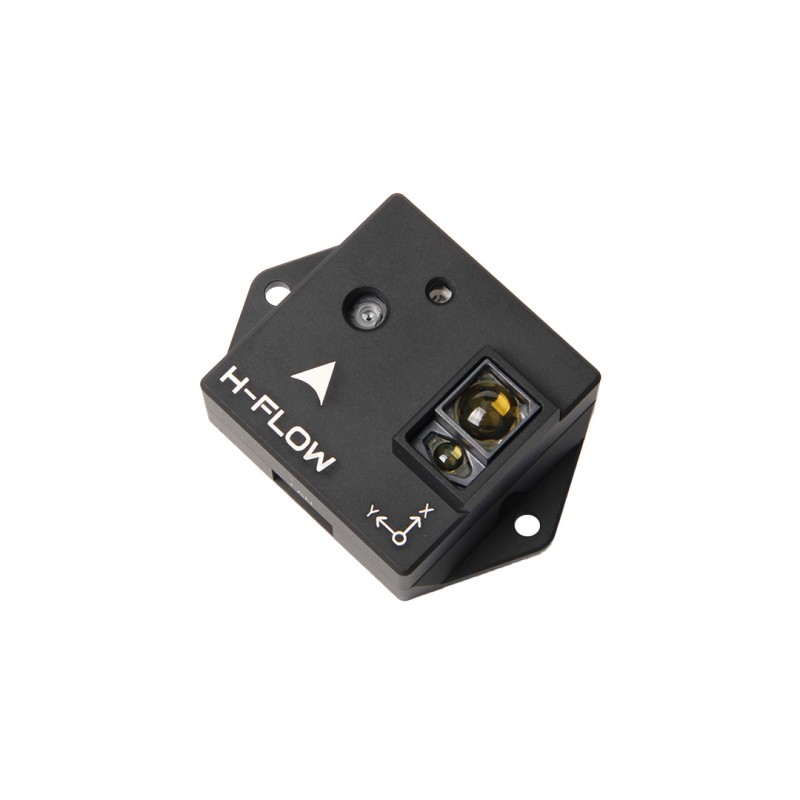

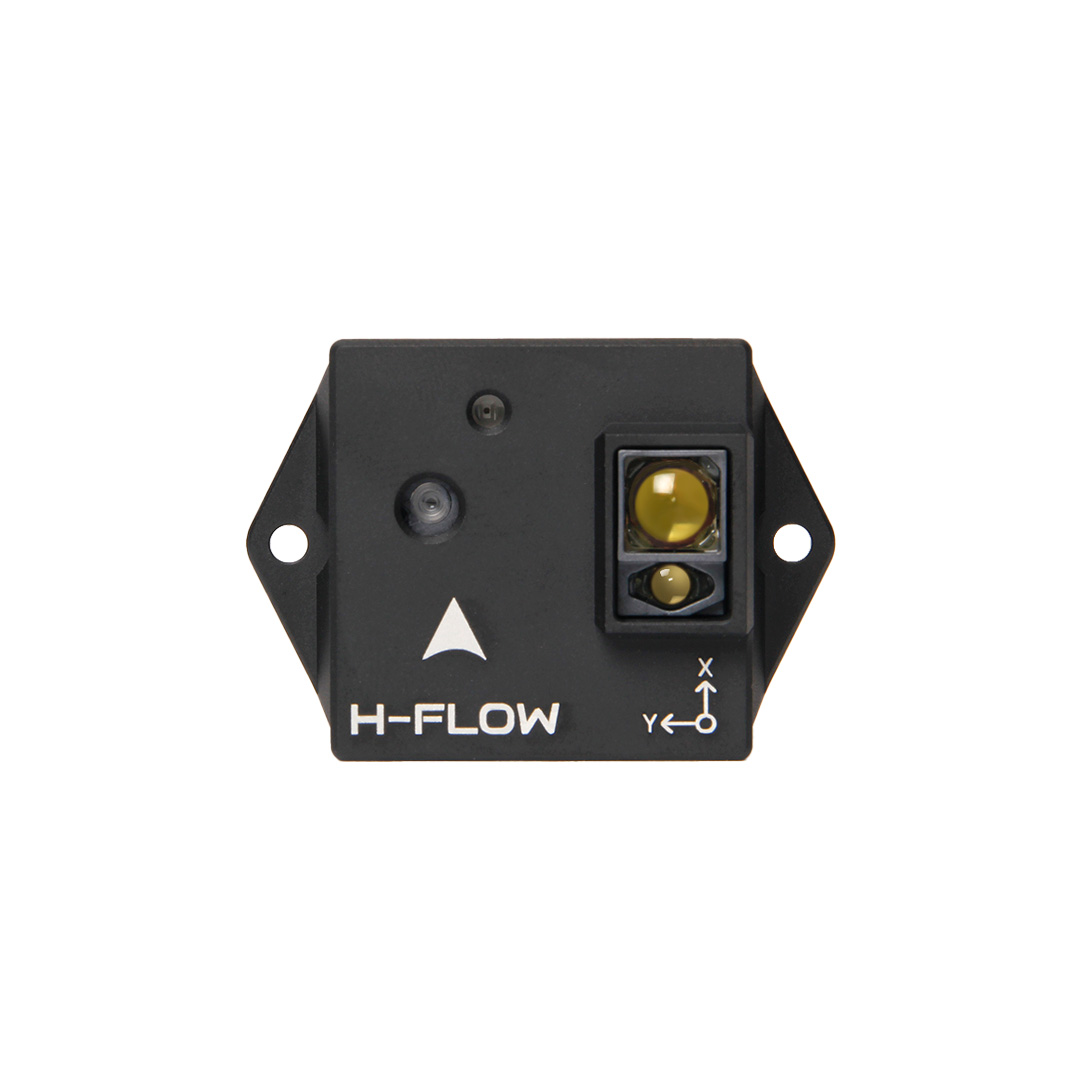

Holybro H-Flow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol

Product Description

Feature
* Integrated Optical Flow and Rangefinder Module
* PixArt Optical Flow Sensor for Accurate Motion Tracking
* Broadcom ToF Sensor for Precise Distance Measurement
* Infrared LED for Optical Low-Light Performance
* DroneCAN Protocol

Specification
* PixArt PAA3905E1 Optical Flow Sensor * Tracks under low light conditions of >5 lux
* Effective Viewing angle up to 42°
* Wide working ranges from 80mm up to 30m
* Up to 7.4 rad/s
* 40mW IR LED built onto the board for improved low-light operation

* Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor * Integrated 850 nm laser light source
* Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
* Typical distance sensing range up to 30m
* Operation of up to 200k Lux ambient light
* Works well on all surface conditions
* Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

* InvenSense ICM-42688-P 6-Axis IMU
* STM32F412CEU6 MCU
* Pixhawk Standard CAN Connector (4 Pin JST GH)
* Compact Form Factor
* Software-Controlled CAN Termination

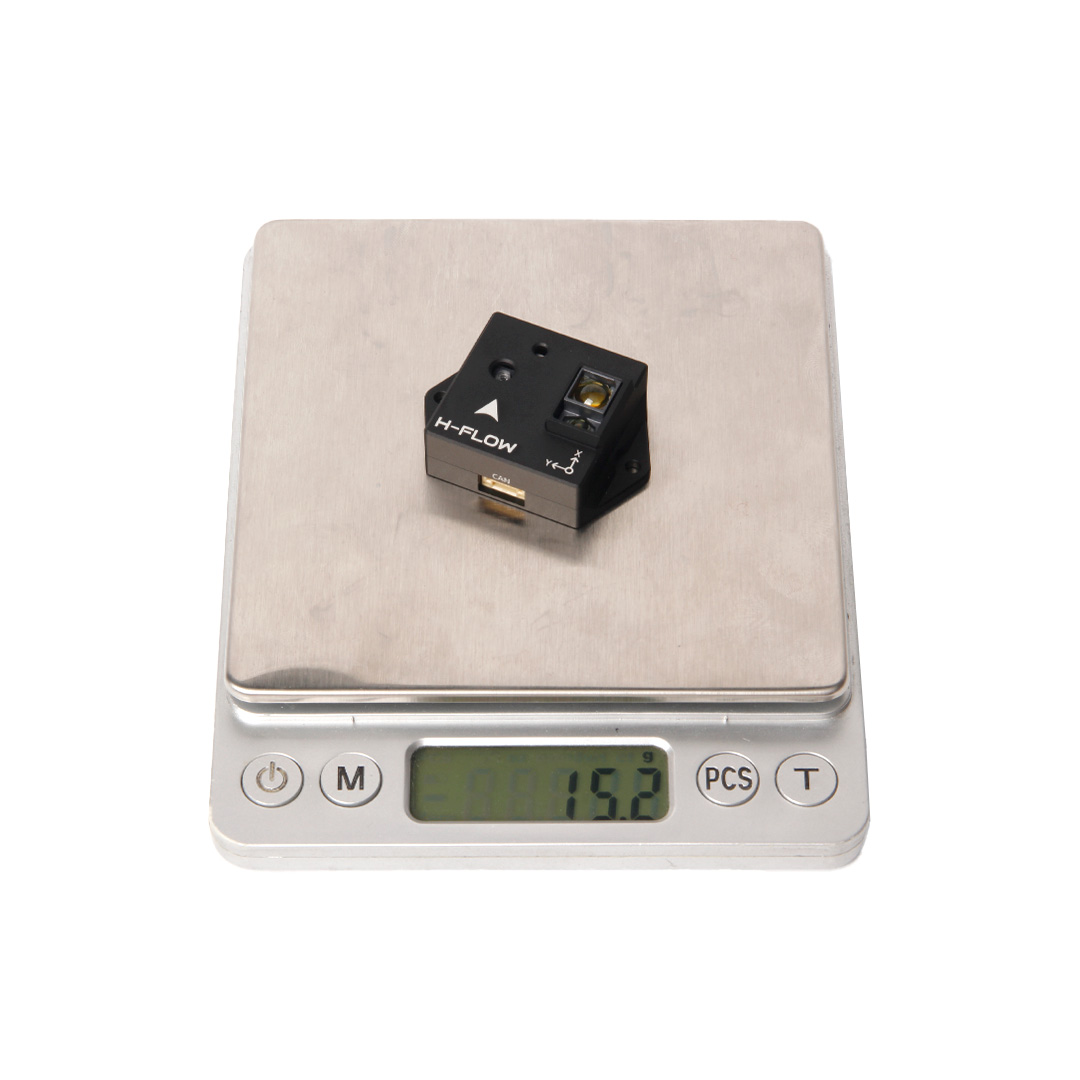

* Weight: 15.2g (3.5g without casing)

Reference Links
* Setup Guide
* Firmware Setup & Upgrade
* Pinout
* AFBR-S50LV85D Datasheet

Package Includes:
* 1x H-Flow
* 4-pin GH cable
* 2x M2.5 Screws
* 2x M2.5 Nylon Locking Hex Nuts
