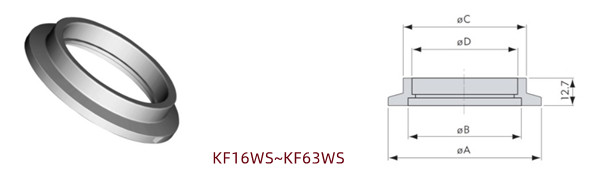

KF Socket Weld Flange SUS304 SUS316L Materials

Features

●The typical KF or NW assembly consists of two identical flanges, a center-ring,

and an AL clamp with a wingnut fastener frequently connect and disconnect

without tools.

●The vacuum seal is effected by uniform application of pressure by the clamp

on 15° surface of the flange.

●The mating flange surface compress an O’ring to generate a seal.

Kunshan SYNVAC Vacuum Equipment Co.,LTD established in 2008 , and is the member of China Vacuum Association.

Locations： Sales Office: Shanghai (Shanghai)

                     Factory 1: Kunshan (Jiangsu Province, 0.5H to Shanghai)

                                      Focus on vacuum chamber and equipment frame etc.

                     Factory 2: Pinghu (Zhejiang Province, 1H to Shanghai)

                                      Focus on the vacuum fittings, flanges, elbows etc.

Products:

Application:

Export: Germany, USA, Malysia, Russia, India, Japan etc.
