Product Details:
Manufacturer : Leuze
Product No. : FT328.34P-M12
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

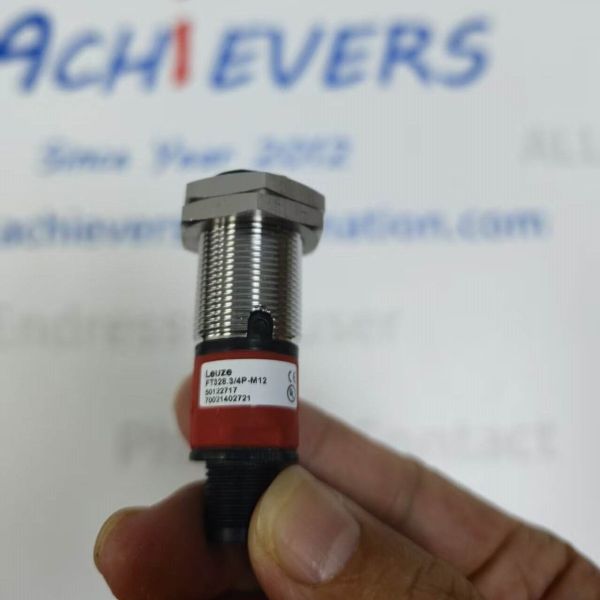

It features an M18×1 stainless steel threaded barrel and A-coded M12 4-pin male plug for fast field wiring without stripping cable cores. Two independent PNP transistor outputs deliver light-switch and dark-switch signals simultaneously to PLC input modules. Red pulsed LED light source enhances anti-interference capacity against ambient factory lighting and workpiece reflective surface fluctuations. Dual LED indicators (green power status, yellow detection signal) enable direct on-site troubleshooting without disassembling machine housings.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model Number | FT328.34P-M12 (FFT328.34P-M12) |
| Manufacturer | Leuze Electronic |
| OEM Order Code | 50122717 |
| Detection Principle | Energetic Diffuse Reflection with Triangulation Background Suppression |
| Light Source | Red Pulsed LED, 620 nm Wavelength, Exempt Laser Group EN62471 |
| Rated Sensing Range (90% White Target) | 1 mm ~ 280 mm |
| Sensing Range (18% Gray Target) | 3 mm ~ 180 mm |
| Sensing Range (6% Black Target) | 5 mm ~ 120 mm |
| Supply Voltage | 10 VDC ~ 30 VDC (15% max residual ripple) |
| Digital Switching Outputs | 2 × PNP Transistor; OUT1 Light Switch, OUT2 Dark Switch |
| Max Single Output Load Current | 100 mA |
| Voltage Drop at Full Load | ≤ 2.5 V |
| No-Load Supply Current | ≤ 25 mA |
| Max Switching Frequency | 500 Hz |
| Response Time | ≤ 1 ms |
| Startup Readiness Delay | 300 ms |
| Mechanical Thread Spec | M18 × 1 mm, V2A Stainless Steel Sleeve |
| Overall Dimension | Ø18 mm × 46 mm |
| Electrical Connection | M12 A-coded Male Plug, 4-Pin |
| Adjustment Method | Physical Teach-In Button Calibration |
| Net Weight | 20 g |
| Indicator Lights | Green LED (Power Ready), Yellow LED (Object Detected) |
| Specification Item | Technical Value |
|---|---|
| Operating Ambient Temperature | -40 °C ~ +60 °C |
| Storage Temperature Range | -40 °C ~ +70 °C |
| Ingress Protection Rating | IP67, Dust-tight & Splash-proof |
| Protection Class | Class III (Extra Low Voltage Safety) |
| Built-in Circuit Protection | Reverse Polarity Protection, Short-Circuit Protection for All Outputs |
| Anti-Interference Performance | Immune to Incandescent, Fluorescent and LED Workshop Ambient Light |
| Lens Housing Material | Impact-Resistant ABS Plastic |
| Thread Sleeve Material | V2A Nickel-Plated Stainless Steel |
| Compliance Standards | IEC 60947-5-2, EN 62471 |
| Global Certifications | cULus Listed, RoHS Compliant |
| ECLASS Classification Code | 27270903 |
| Allowable Vibration Resistance | 10–2000 Hz per EN 60068-2-6 |
| Anti-Background Disturbance | Automatically Suppress Static Rear Background Reflection |
| Service Life | ≥ 100 Million Switching Cycles |
