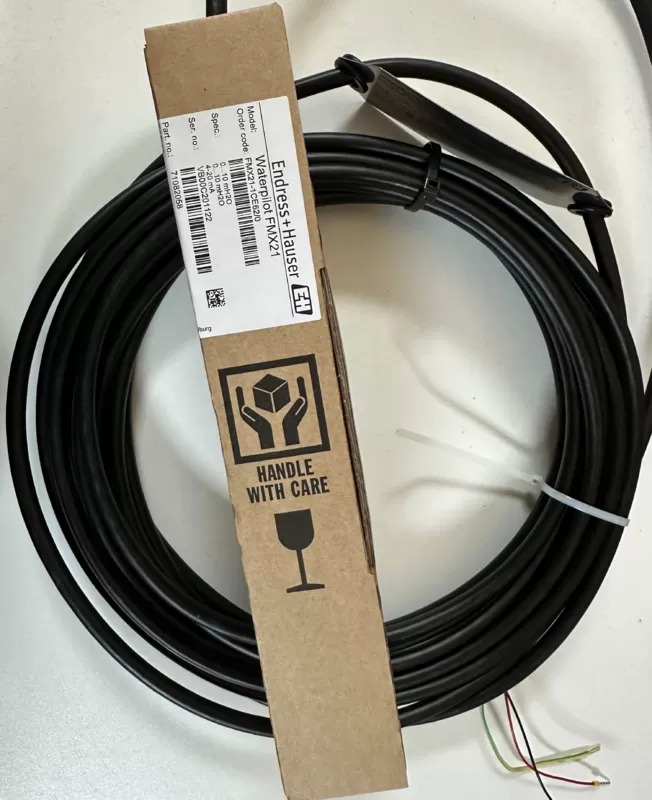

E+H waterpilot fmx21 Waterpilot Hydrostatic Level Probe

E+H waterpilot fmx21 Waterpilot Hydrostatic Level Probe


Product Details:

Manufacturer : Endress+Hauser

Product No. : fmx21

https://www.achievers-automation.com More Products


This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


The E+H FMX21 Waterpilot is a robust submersible hydrostatic level transmitter built with oil-free capacitive ceramic measuring cell, engineered for continuous liquid level measurement across municipal water, wastewater, chemical, marine and environmental industriesEndress+Ha....

This series provides three mechanical housing variants for different media: 22mm stainless steel for clean drinking water, 42mm flush-diaphragm stainless steel for sludge/wastewater, and 29mm polyolefin coated anti-corrosion model for saltwater and ship ballast tanks. It supports dual level & temperature measurement via optional integrated Pt100, features automatic density compensation, and uses 4–20mA two-wire signal with superimposed HART 6.0 digital communication for flexible range configuration on-site. Fully potted electronics and dual-filter pressure compensation deliver stable readings under fluctuating temperature and humid submerged conditions, with global drinking water, explosion protection and marine classification certificationsEndress+Ha....

Detail:

Parameter ItemStandard FMX21 Technical Value
Full Product NameWaterpilot FMX21 Hydrostatic Level Probe
BrandEndress+Hauser (E+H)
Measuring PrincipleOil-free capacitive ceramic pressure cell (99.9% Al₂O₃)
Max Measuring Range100 mbar ~ 20 bar (0–200 m H₂O / 0–656 ft H₂O)
Reference AccuracyStandard: ±0.2% of set span

Platinum version: ±0.1% of set span
Signal Output4–20 mA two-wire, invertible; superimposed HART 6.0 protocol
Supply Voltage10.5–35 V DC; Ex version: 10.5–30 V DC
Overload ResistanceUp to 40 bar (600 psi) short-term overload
Optional Temperature SensorIntegrated Pt100 for simultaneous level & temperature logging
Density CompensationSoftware-enabled automatic density correction for liquid media
Configurable Units%, mbar, bar, kPa, mH₂O, ftH₂O, psi, mmH₂O
EMC ComplianceEN 61326-1 industrial electromagnetic standard


Specification CategoryDetailed Technical Data
Three Housing Diameter Options22 mm (0.87 in) 316L SS – drinking water

42 mm (1.65 in) 316L SS flush diaphragm – wastewater

29 mm (1.14 in) polyolefin coated PPS – saltwater/marine
Wetted Materials22/42mm: 316L stainless steel, ceramic, elastomer seal

29mm: PPS, polyolefin coating, ceramic, elastomer seal
Standard Process Temperature Range-10 °C ~ +70 °C (14 °F ~ 158 °F) for stainless steel variants

0 °C ~ +50 °C (32 °F ~ 122 °F) for 29mm coated marine model
Extension Cable MaterialsPE, PUR, FEP (custom length configurable)
Ingress ProtectionIP68 permanent submersible design
Mounting MethodSuspension clamp hanging installation, cable gland strain relief
Global ApprovalsDrinking water: KTW, NSF, ACS

Hazardous area: ATEX, FM, CSA

Marine: GL, ABS, LR, BV, DNV ship certifications
Process Media SuitabilityClean potable water, municipal wastewater, sludge, seawater, ballast tank fluid, surface water
Net Weight (standard 10m cable)0.35–0.6 kg (varies by housing diameter)



Brand

E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
