VICTOR 890C Digital Multimeter with TFT screen 6000 counts display

VICTOR 890C Digital Multimeter 6000 Counsts Manual Range True RMS Capacitance Resistance Transistor 1000V 20A

1. SUMMARIZE

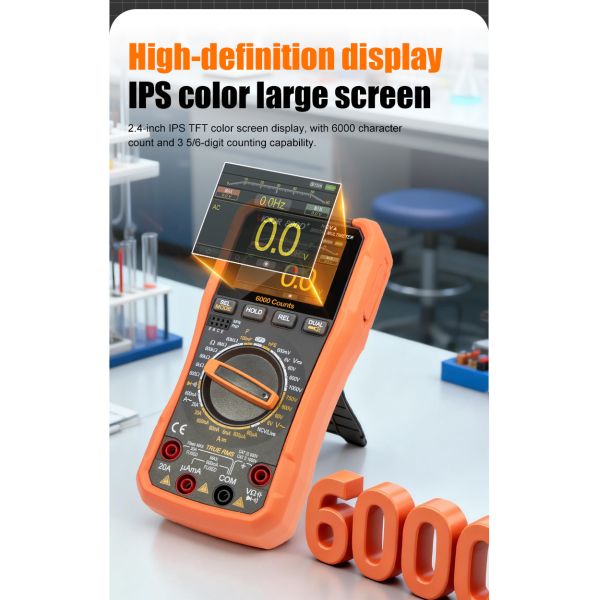

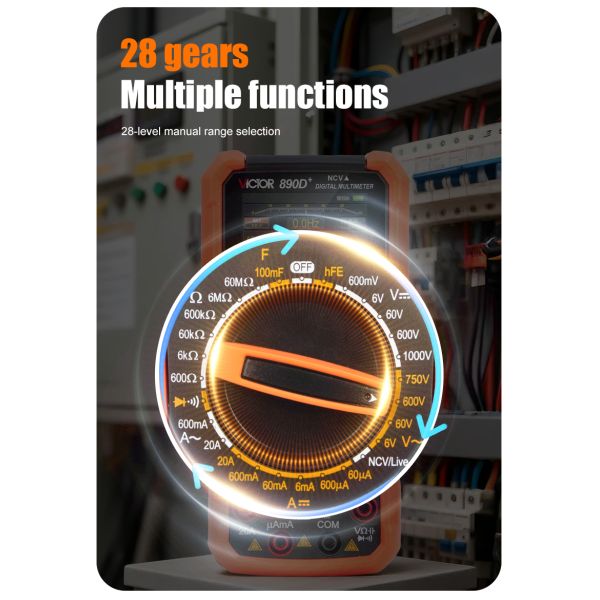

The instrument uses a 2.4-inch IPS TFT color screen display, 6000 words counting 3 5/6 digits, 28 manual ranges portable handheld true RMS intelligent multimeter. Equipped with main and auxiliary displays, AC accompanying frequency, ambient temperature, high resolution analog pointer display and full range overload protection circuit. It can be used to measure AC and DC voltage and current, resistance, capacitance, temperature, frequency, diode, transistor, circuit continuity, NCV (non-contact AC voltage induction measurement), LIVE (live wire recognition) functions, and also has flashlight function, data retention, relative value measurement function, shutdown time, display brightness, language and other functions that can be customized. The product is designed to be powered by rechargeable lithium batteries and compatible with Type-C interfaces for charging.

2. OPEN PACKING FOR CHECKING

1. Manual 1pc

2. Test leads 1pair

3. Type-C charging cable 1pc

4. K-type probe (-20℃ ~ 250℃) 1pc

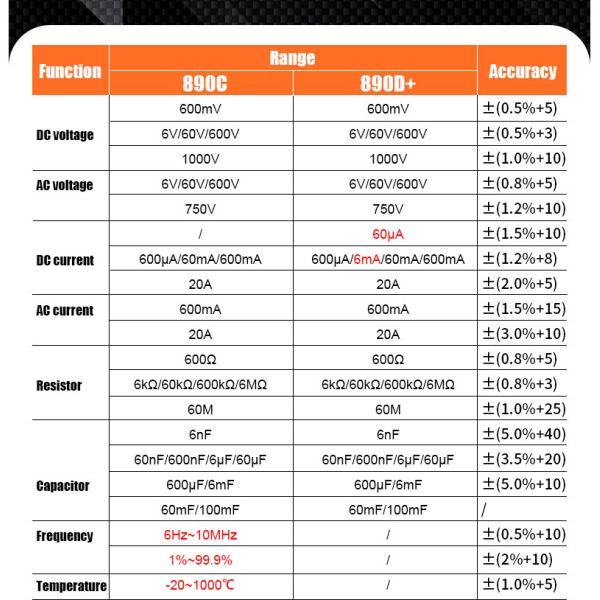

3. SPECIFICATION

1. Maximum display 5999 (3 5/6 bits) automatic polarity display; dual display
2. Sampling rate: 3 times per second
3. Range: manual/automatic, over range display "OL"
4. Display screen: 2.4-inch IPS TFT color screen
5. Measurement method: AD conversion measurement
6. Input jack prompt: Displays the input jack position corresponding to the measured range
7. Power supply method: 18650 1800mAh lithium battery
8. Charging method: Type-C interface charging
9. Battery level indicator: The power icon in the upper right corner of the TFT indicates
10. Working environment: (0 ~ 40) ℃, relative humidity <75%RH
