Vertical Rotation Hydraulic Core Drilling Rig Rock And Soil Sampling Drilling Machine Deep Core Drill Rig

The entire machine combines drilling capabilities with field mobility. Its automated hydraulic operation reduces labor intensity, enhances core extraction efficiency and rock core quality. The structure is mature and reliable, and maintenance is convenient. It is the mainstream model for core extraction operations in deep field geological exploration.

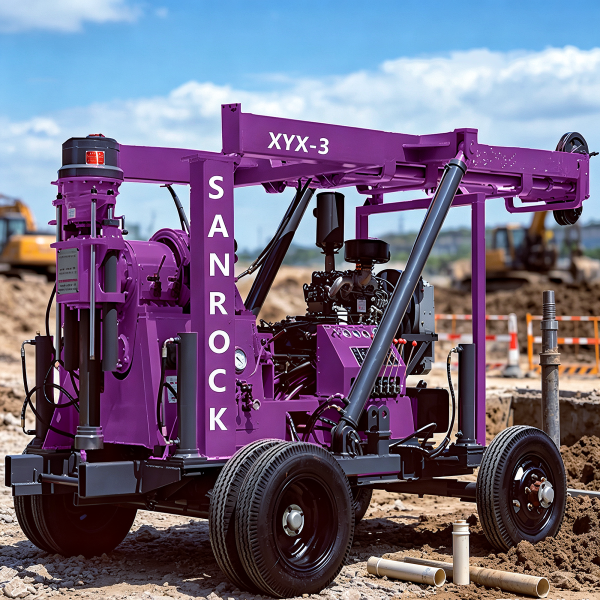

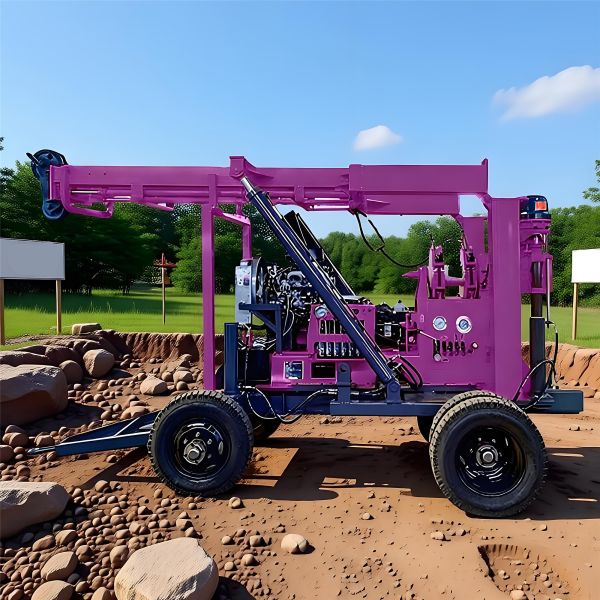

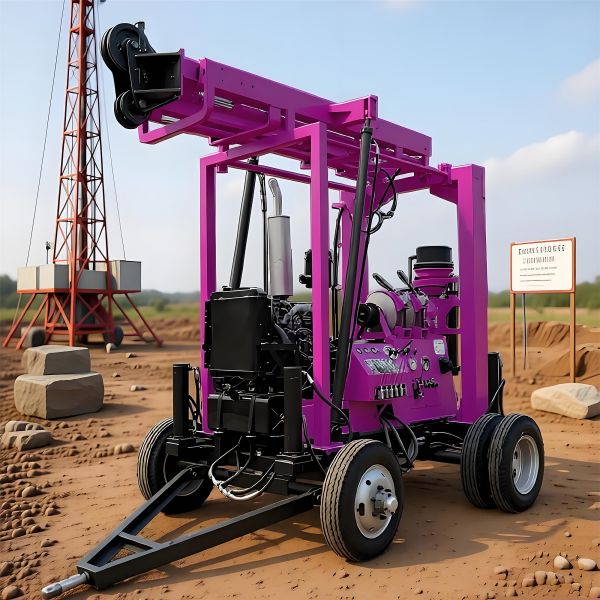

XYX-3 is a trailer-mounted hydraulic core drilling rig, a derivative model of the XY-3 series exploration drilling rigs. It is mainly used for deep geological core drilling, hydrological and water well drilling, engineering geological exploration, rock and soil sampling, and small-scale foundation construction drilling. It is compatible with various rock and soil layers. It can balance exploration core drilling and drilling operations, has strong mobility, full hydraulic auxiliary operation, and is suitable for frequent site relocation in field construction.

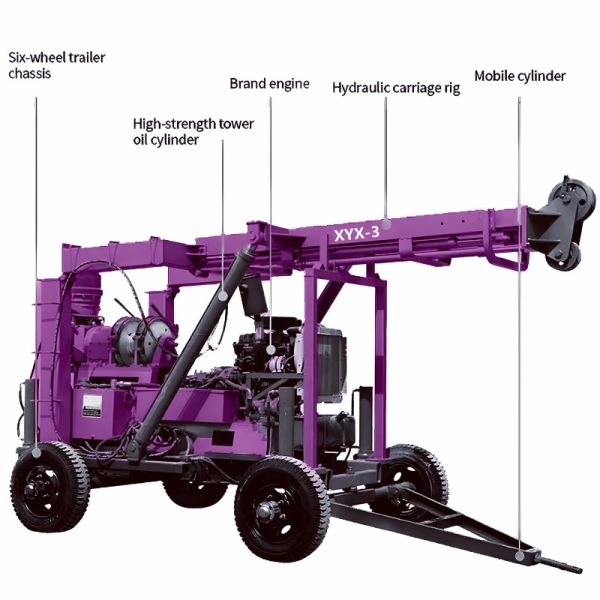

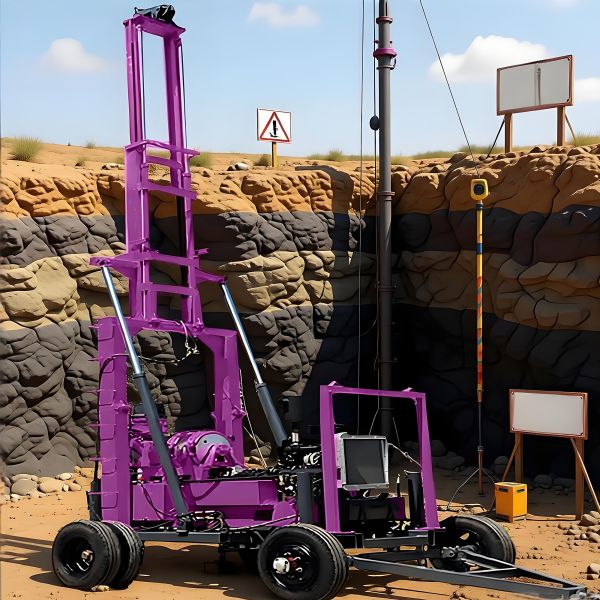

1. Wheeled movement + Hydraulic legs: Equipped with a trailer-mounted wheeled movement mechanism and hydraulic cylinder-supported upright columns, the entire machine can be towed and relocated by a trailer. The hydraulic legs can be quickly adjusted to stabilize the drilling rig, significantly reducing the time for on-site installation and adjustment; The lifting and lowering of the drilling tower is controlled by hydraulic operation, which is convenient, labor-saving, and highly safe.
2. Fully hydraulic feeding and clamping system: The hydraulic feeding mechanism ensures smooth and uniform drilling, improving the quality of coring and drilling efficiency; The closed-type hydraulic chuck / ball chuck clamping mechanism enables continuous coring without stopping the machine, reducing downtime losses; A bottom-hole pressure gauge is equipped to monitor the conditions inside the hole in real time, facilitating the handling of downhole anomalies such as stuck drill pipes and hole collapse.
3.Transmission and Control System: Utilizes an automotive transmission assembly, featuring multiple forward gears + 2 reverse gears for speed adjustment. It provides sufficient torque and is convenient for handling wellbore accidents such as stuck drill bits. The centralized control handle has a compact layout, and the vertical shaft and winch can be independently controlled. The diameter of the through hole on the vertical shaft is large, suitable for large hexagonal active drill pipes and various drilling tools. Mainly equipped with electric start diesel power, providing abundant power and easy start-up, reducing manual labor intensity. It can also be adapted to motor power versions. Shandong Julong Equipment .
4.Drilling capability: It can complete core drilling at a depth of 600 meters, with the opening diameter reaching up to 300mm, and the final core drilling diameter being 75mm. The drill pipe specification is Φ60mm. The drilling inclination angle can be adjusted within the range of 90° to 65°, meeting the requirements of vertical core extraction and inclined-hole exploration, ensuring the integrity of the core samples, and providing reliable original core samples for geological exploration, mineral exploration, and soil and rock testing. Main purpose
Geological and mineral exploration, geotechnical engineering investigation, geological hazard survey, roadbed / infrastructure geological testing and core sampling
Hydrogeological investigation, drilling for drinking water wells / monitoring wells
Mine exploration, geological census, pile foundation testing and other drilling and sampling operations

Product Description

Company Information

Certificate

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.

Established in 1992, Quzhou Sanrock Heavy Industry Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of DTH drilling rig, Water well drilling rig, DTH hammer, DTH bits, Drilling Pipe and all accessories about above products.

We are located in Quzhou City, Zhejiang, with convenient transportation access. And our factory covers an area of 10,000 square meters and has more than 500 staff.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the nearfuture.
