CNCSUPER A5 CNC router is a industrial-grade, high-performance 5-axis CNC machining center tailored for high-speed routing, mold-making, and precise trimming of advanced materials. The combination of an Italian-engineered HSD head and a synchronized Syntec ecosystem creates a rigid, reliable system optimized for continuous surface machining.

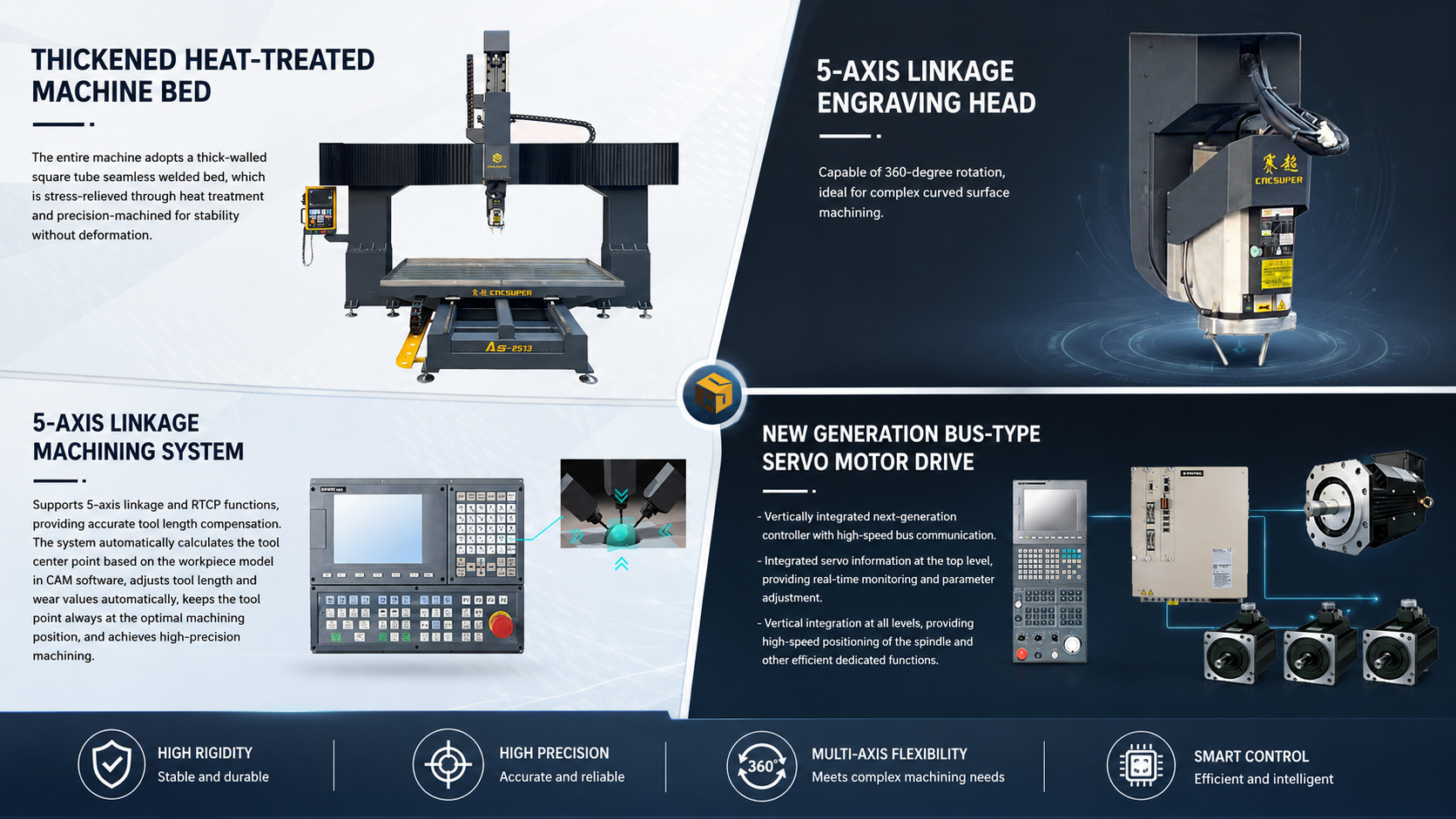

Structural Build: adopts the fixed-gantry and movable table structure, and the
worktable can move back and forth during the machining process,
this helps ensure that all side surfaces can be processed.
HSD 12kW Five-Axis Head: provides powerful torque to machine hardwood, carbon fiber,
composites, plastic and aluminum. Its A/C rotary axes support
continuous high-speed rotation, enabling collision-free processing
of intricate 3D workpieces.
SYNTEC 610-E5 Five-Axis Control System: acting as the machine’s core control unit, the SYNTEC 610-E5
features an intuitive interface and stable operation. It quickly
computes complex five-axis G-code to guarantee smooth cutting
without jitter on curved surfaces.
RTCP Rotation Tool Center Point Function: As a vital five-axis function, RTCP automatically tracks the real
tool tip position during spindle rotation. It dynamically
calibrates X/Y/Z axes to maintain precise cutting paths,
eliminating repeated code reposting caused by tool length changes
and boosting overall machining accuracy.
SYNTEC Bus-Type Servo System: adopting digital bus communication rather than analog pulse wiring,
the SYNTEC bus servo system avoids signal interference and
transmission lag. Synchronized servo motors deliver smoother
cutting, faster acceleration and real-time fault detection for
consistent high-performance processing.
| Parameters | Specification |
| Machine structure | Heavy-duty steel frame construction with quenching treatment |
| X,Y axis travel(mm) | 2500*2100 |
| Z axis travel(mm) | 700 |
| Working table | Stainless steel water tank table |
| Max load of table | 500kg |
| Table transmission | Table moving |
| Spindle | 5 axis 12KW HSD ATC spindle |
| A axis rotation range | ±110 degree |
| C axis rotation range | ±270 degree |
| Tool Change mode | Manual pneumatic tool change |
| Inverter | Taiwan DELTA 15KW |
| Control system | Taiwan SYNTEC controller with RTCP function |
| Driving system | Taiwan SYNTEC servo motors and drivers |
| Transmission | X,Y,Z axis all Taiwan TBI high precision ball screw |
| Linear guide | Original Taiwan PMI |
| Reducer | Japan SHIMPO reducer |
| Max. Rapid Travel Rate | 28000mm/min |
| Max. Working Speed | 20000mm/min |
| Repositioning Accuracy | ±0.03mm |
| Lubrication system | 1.5L automatic lubrication system |
| Electrical components | Schneider |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Working voltage | 380V/50HZ/3PH, can be customized |
| N.W | 5000KG |
Composite & Plastics Trimming: Trimming thermoformed plastics, fiberglass parts, or carbon fiber components for automotive or marine applications.
Large Scale Woodworking: Carving architectural pillars, curved furniture components, and intricate 3D wooden art pieces.
Mold Making: Milling large EPS foam models, polyurethane tooling boards, or epoxy molds for casting.
|
