FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution

FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution

FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution
FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution
Categories MPO MTP
MOQ: negotiable
Delivery Time: 5-9 working days depends on QTY
Insertion loss (dB): ≤ 0.3
Interchangeability: ≤ 0.2dB
Model Number: MPO/MTP Cassette Management Panel
Fiber type: SM (G652, G655,G657); MM (OM1-OM5)
Price: negotiable denpend on QTY
Return loss (dB): UPC SM: 40dB APC SM: 60dB
Designed in Accordance With: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1
Supply Ability: 1000PCS/Day
Durability: ≤ 0.2dB
Product name: Racks、Cassette module
Brand Name: DF/OEM/Nuetral
Product Name: FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution
Payment Terms: Western Union,T/T,/Paypal
Repeatability: ≤ 0.1dB
Material: Aluminum
Compliant to: RoHS, Reach/SVHC
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Cable Diameter: 0.9/0.6
Place of Origin: China, Shenzhen
Connector: Male (Pin needle), Female MPO/MTP、 LC
Packaging Details: Blister box+Carton
Bending radius (Dynamic/static): min 40mm
Contact Now
Company Info.
TAKFLY COMMUNICATIONS CO., LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel | Data Center and Network Solution

FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel
Advanced data center and network solution designed for high-density fiber optic connectivity and management.
Product Overview
Takfly series rack-mounted patch panel efficiently manages and houses easy-plug MTP/MPO to LC fiber cassette modules, enabling seamless connection of plug-and-play pre-terminated high-density MTP/MPO fiber cabling systems. This solution enhances network availability and is particularly suitable for SAN, LAN, and Data Center applications.
Each easy-plug MTP/MPO to LC cassette accommodates 12/24-fiber MTP/MPO based fiber assemblies and comes pre-loaded with LC adapters in various fiber modes to meet diverse requirements.

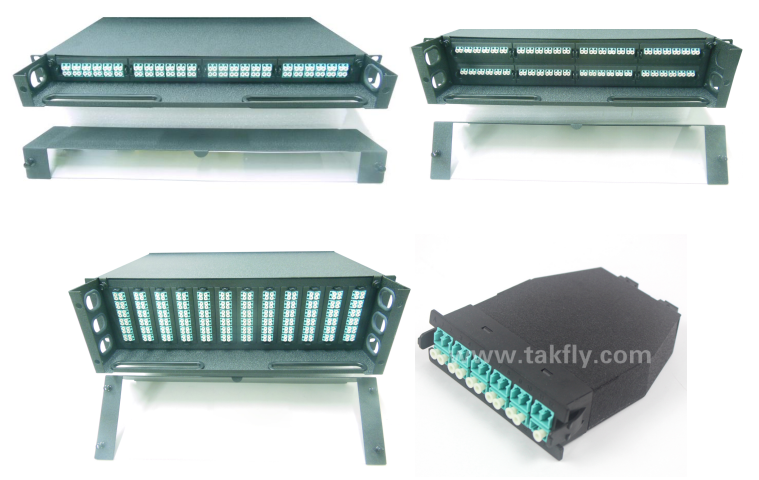

FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel overview diagram
Applications
  • Optical fiber communication dense wiring systems between buildings
  • WAA (Wireless Access Applications)
  • LAN (Local Area Networks)
  • CATV (Cable Television Systems)
  • Data center rooms in commercial buildings
  • Telecommunication base stations
  • Optical link interconnection in optical active equipment for LAN cabling
  • FTTH (Fiber To The Home)
  • Data center rooms in industrial areas
Key Features
  • Designed for 19-inch rack-mount and cabinet installation with centralized cassette module management
  • High-quality aluminum alloy construction with durable electrostatic coating surface
  • 1U high-density capacity supporting 96 fibers for LC interface
  • Male or Female MPO/MTP connectors with precise PIN and adapter connections
  • Modular design featuring plug-in locking structure and clear line sequence identification
  • Compact, lightweight, impact-resistant, flame-retardant, and corrosion-resistant construction
  • Excellent sealing performance for dust protection and advanced network equipment integration
  • Accommodates up to 4 Small/MTP modules in 1U space
  • Multiple adapter options available for various configurations
  • Compatible with loose tube, distribution, and pre-terminated cables
  • ROHS, REACH SvHC, and UL rated for quality assurance
  • Fits standard 19" rack systems
Technical Specifications
U Size1U (44.2mm)
Number of Ports12 (Max 144 core)
Width482.6mm
Depth464.9mm
Net Weight6.8kg
Packaged Weight8.7kg
Packaged Size57*56*20cm
Material1.2mm Cold-rolled steel
Material CoatingPowder coating
ColorBlack
Designed in Accordance WithTIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant toRoHS, Reach/SVHC
U Size1U (44mm)2U (88mm)2U (133mm)
Number of Ports4 (Max 96 core)8 (Max 192 core)12 (Max 288 core)
Width482.6mm
Depth341.5mm
Net Weight3kgs7kg9.5kg
Packaged Weight3.3Kgs7.5kg10.3kg
Material1.2mm~1.5mm Cold-rolled steel
Material CoatingPowder coating
ColorBlack
Designed in Accordance WithTIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant toRoHS, Reach/SVHC
Product Structure
MPO/MTP Cassette Management Panel structure diagram
Product Images
MPO/MTP Cassette Management Panel detailed view
Why Choose TAKFLY?
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 sets of Germany imported injection machines and 16 production lines
  • Comprehensive testing equipment including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers
  • OEM branding accepted
  • Regular exhibition participation worldwide
Quality Control
  • Spot check raw material incoming inspection before production
  • Full inspection after every individual process completion
  • Full inspection of production half-done stages
  • Full inspection of finished products before packing
  • Spot check before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass production orders: 3-7 working days
  • Packaging: Plastic bag, carton and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
TAKFLY Fiber Optic Pigtail Product showcasing manufacturing quality and precision
If you're interested in our products or have any questions, feel free to contact us at any time!
