Newly Design High Density MPO Patch Panel and Rack Mount | MPO Cable Assemblies | For Fiber Network Solution

High Density MPO Patch Panel and Rack Mount
Newly designed 1U-19 inch MPO/MTP high-density rack-mount fiber patch panel engineered for large data center applications, MDF installations, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments.
This 1U 19-inch MPO/MTP patch panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to complete the full patch panel assembly.

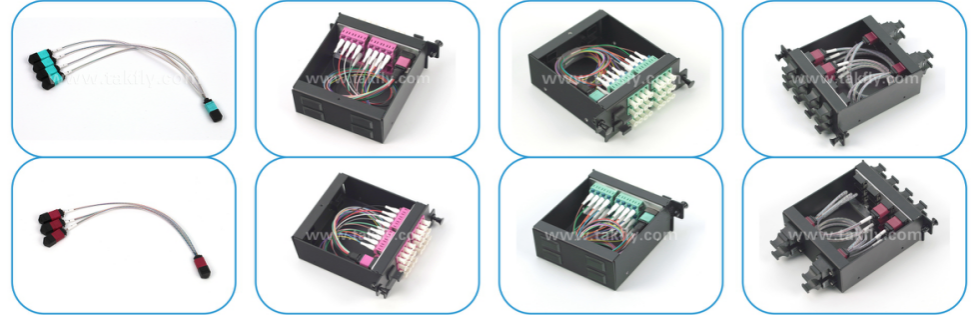

MPO Patch Panel and Rack Mount diagram showing high-density fiber management system
Applications
  • Optical fiber communication dense wiring systems between buildings
  • Optical link interconnection in optical active equipment for LAN cabling
  • Telecommunication base stations
  • Data center rooms in industrial areas
  • Data center rooms in commercial buildings
  • CATV systems
  • LAN networks
  • WAN networks
  • FTTX deployments
Key Features
  • Installed in 19-inch rack-mount cabinets for cassette module centralized management
  • 1U high-density design with capacity for 1152 fibers (MPO) or 96 fibers (LC)
  • Input port available on front or back panel, output port on front panel
  • Male or Female MPO/MTP connectors available with precise PIN and adaptor positioning
  • Modular design with plug-in locking structure and clear line sequence identification
  • High-quality aluminum alloy material with electrostatic coating surface
  • Compact, lightweight, impact-resistant, flame-retardant, and corrosion-resistant construction
Configuration Schemes
Model A1 Configuration
LGX Cassette CapacityLGXTotal CapacityConnector TypeSizeApplication
R: 72F MPO×4 pcs
T: 24F MPO×12 pcs =288F
41152FMPO×16×41U1 A1 LGX Cassette connects with 12 C3 LGX Cassettes
Model A2 Configuration
LGX Cassette CapacityLGXTotal CapacityConnector TypeSizeApplication
R: 72F MPO×4 pcs
T: 48F MPO×6 pcs=288F
41152FMPO×10×41U1 A2 LGX Cassette connects with 3 C1 LGX Cassettes
Model B1 Configuration
LGX Cassette CapacityLGXTotal CapacityConnector TypeSizeApplication
R: 72F MPO×1 pc
T: 16F MPO×3 pcs + 24F MPO×1 pc=72F
4288FMPO×5×41UConnects with 400G transmission devices and C3 LGX Cassettes
Technical Specifications
ParameterSpecification
Fiber TypeSM (G652, G655, G657); MM (OM1-OM5)
ConnectorMale/Female MPO/MTP, LC
Cable DiameterMini Round: Max 4.5mm; Ribbon: Max 3.0×5.0mm; 0.9/0.6
Insertion LossStandard: ≤0.35/0.7dB; Low Loss: ≤0.2/0.35dB; LC: ≤0.3dB
Return LossAPC SM: 60dB; PC MM: 20dB; UPC SM: 40dB
Test WavelengthSM: 1310/1550nm; MM: 850/1300nm
DimensionsModule Box: 93×100×39mm; Machine Case: 482×200×44.2mm
MaterialAluminum
Packaging Information
WeightInner Box SizeOuter Box DimensionsWeight per Carton
1.5kg500×280×80mm510×300×420mm11kg

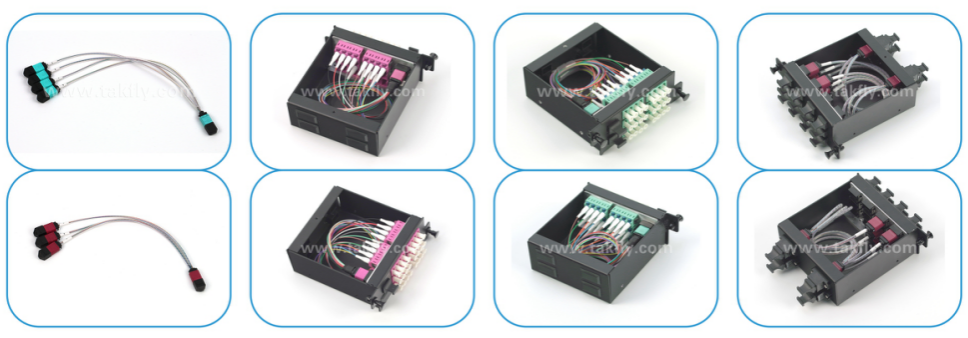

MPO Patch Panel and Rack Mount product image showing installation and connectivity
