Product Description:
The GL20A / GL20B Manual Stacker is designed for efficient,
flexible, and safe material handling. With a detachable split-frame
structure, foldable forks, durable wheels, and an upgraded braking
system, this manual stacker is easy to transport, assemble,
operate, and maintain. It is an ideal solution for warehouses,
workshops, logistics centers, and other light-duty handling
applications.
Key Features:

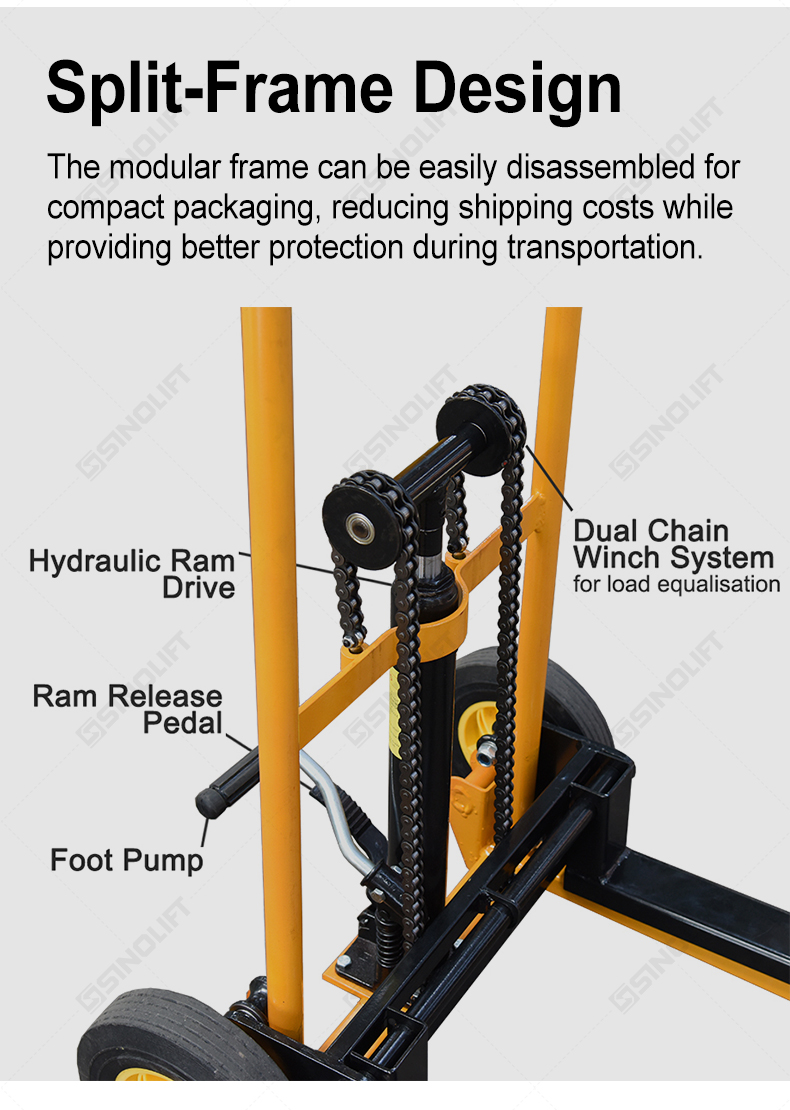

1. Detachable Split-Frame Design
The split-body frame can be disassembled for compact carton
packaging, making delivery more convenient, reducing freight costs,
and helping protect the painted surface during transportation.
2. Dual-Speed Buffer Cylinder
Equipped with a dual-speed hydraulic cylinder. The forks descend
quickly under light loads and more slowly under heavy loads,
improving both efficiency and operational safety.
3. Lightweight and Quiet Operation
Aluminum alloy wheels and pneumatic tires help reduce operating
noise, improve maneuverability, and make the stacker easier to
move.
4. Foldable Forks
The foldable fork design allows flexible use, easy storage, and
convenient disassembly when required.
5. Durable Steel-Plated Rollers
High-strength steel-plated rollers provide excellent durability,
smooth movement, and a clean appearance.
6. Easy Assembly and Maintenance
The axle and wheel bracket adopt a split-type design, allowing
quick assembly, easy maintenance, and convenient replacement of
parts.
7. Patented SINOLIFT Design
This SINOLIFT manual stacker features a patented design. Patent
infringement will be pursued in accordance with applicable laws.
8. Upgraded Braking System
The enhanced braking function is suitable for use on ramps or
downhill sections. The brake includes a self-locking function for
safer and more flexible operation.
9. Silent Solid-Core Tires
The stacker uses silent solid-core tires with aluminum alloy
wheels, offering a durable, attractive, and labor-saving user
experience.
| GL20 Series Manual Stacker Specifications |
| Specification | Unit | GL20A | GL20B |
| Model | | GL20A | GL20B |
| Frame Type | | Detachable | Detachable |
| Brake System | | Standard | Mechanical Hand Brake |
| Rated Load Capacity | kg | 200 | 200 |
| Max. Fork Height | mm | 900 | 900 |
| Min. Fork Height | mm | 85 ± 2 | 85 ± 2 |
| Fork Length | mm | 575 | 575 |
| Fork Width | mm | 70 | 70 |
| Overall Fork Width | mm | 500 | 500 |
| Inside Fork Width | mm | 360 | 360 |
| Overall Height | mm | 1240 | 1240 |
| Front Wheel Size | mm | 40 × 40 | 40 × 40 |
| Rear Wheel Size | mm | 250 × 50 | 250 × 45 |
| Rear Wheel Track Width | mm | 730 | 730 |
| Net Weight | kg | 37.7 | 40 |
| Packing Dimensions (L × W × H) | mm | 1250 × 550 × 200 | 1250 × 550 × 200 |
