Industrial Linear Actuator TOMUU U20K Large Solar Array

Categories Solar Tracker Linear Actuator
Model Number: U20K
Code: A
IP Class: IP65/IP66/IP67
Price: $280-320 / piece
Duty Cycle: 10%
Ratio: 110:1
Rated Speed(mm/s) Full Load (24V): 1.6mm/s
Certification: CE
MOQ: Contact Supplier
Rated Load (N) Pull: 20,000
Place of Origin: Guangdong, China
Rated Current(A): 7.0
Brand Name: TOMUU
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Linear Actuator TOMUU U20K Large Solar Array

Industrial Linear Actuator TOMUU U20K Large Solar Array
The TOMUU U20K industrial linear actuator with 2-meter cable addresses long-distance wiring requirements for widely spaced large solar array tracking brackets. Operating on 24V DC with 7A rated current, it delivers 20,000N push-pull load capacity and up to 65,000N static load. Standard features include IP66 sealing and customizable stroke lengths, with terminal options designed for centralized multi-row solar tracking control cabinet connections.

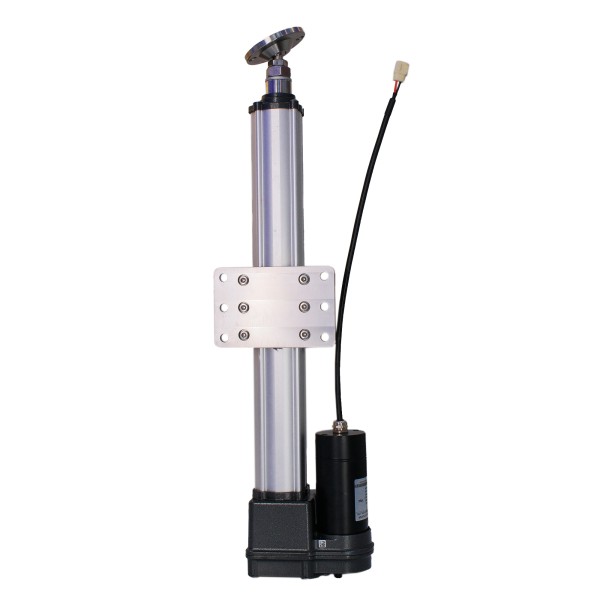

TOMUU U20K Industrial Linear Actuator for solar array applications
Technical Specifications
Voltage12V DC / 24V DC
Max Load20,000N
Speed1.6mm/s±5%
Duty Cycle10%
Protection ClassIP65/IP66/IP67
Noise Level≤60dB
Stroke100-800mm
MaterialAluminium Alloy
Product Dimensions

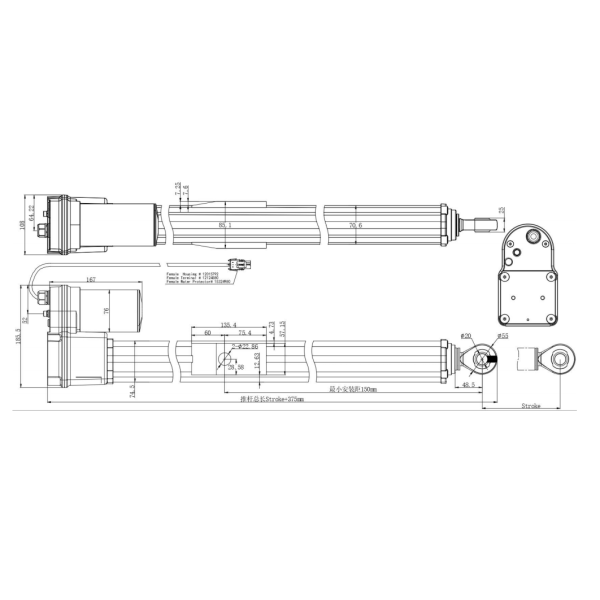

TOMUU U20K Linear Actuator dimensional diagram and specifications
Key Advantages
  • 2-meter standard extended cables eliminate need for additional extension wire joints between widely separated solar tracker rows
  • Reduces wiring fault risks on large solar farm installations
  • 20kN stable thrust synchronously adjusts dozens of linked PV panel rows
  • IP66 all-weather sealing withstands year-round outdoor wind and rain exposure
  • High static load capacity prevents array misalignment under strong wind conditions
  • Customizable stroke lengths adapt to various large ground-mounted solar array mechanical designs globally
