Forced Air Drying Oven

Forced Air Drying Ovens are suitable for laboratories in industrial and mining enterprises, universities, research institutes, medical and health institutions and other organizations for drying, baking and heat treatment of articles.

Technical Specifications

Parameter	101/202-00A 101/202-00AB	101/202-0A 101/202-0AB	101/202-1A 101/202-1AB	101/202-2A 101/202-2AB	101/202-3A 101/202-3AB
Power Supply Voltage	220V
Temperature Control Range	Ambient Temp.+5～300℃
Temperature Fluctuation	±1℃
Operating Ambient Temperature	5～40℃
Input Power	0.6KW	1KW	1.5KW	2.0KW	3.0KW
Inner Chamber Size (mm) (Depth × Width × Height)	260×260×260	350×360×350	400×400×450	450×500×550	500×600×700
Overall Dimension (mm) (Depth × Width × Height)	380×390×570	490×500×700	540×540×800	590×640×910	640×740×1050
Shelf Load Capacity	15KG

Note: 101 refers to blast drying oven, and 202 refers to constant temperature drying oven

Core Product Features

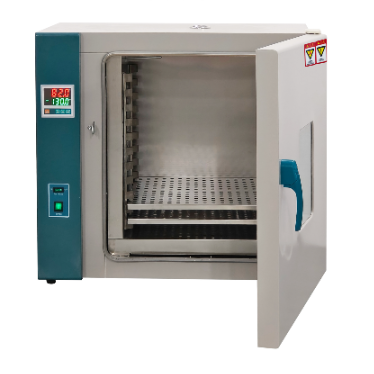

Forced Air Drying Oven interior view showing heating elements and chamber design

The intelligent PID liquid crystal temperature controller is equipped with functions including timing, alarm indication, temperature deviation correction and automatic temperature control tuning, delivering accurate and reliable temperature control.
Adopting all-round three-dimensional heating and forced air supply technology to ensure uniform temperature inside the working chamber.
It is provided with an over-temperature power-off and alarm indication system. When the controlled temperature exceeds the set upper limit, the instrument automatically cuts off power output and the buzzer sounds an alarm to guarantee the safety of experiments and personnel.
High-temperature resistant silicone sealing strips are adopted together with latch-type adjustable tightness door locks to achieve excellent sealing performance and prevent heat loss.
With optimized heat insulation design, the equipment can operate at high temperatures for a long service life and allow easy component replacement, realizing maximum environmental friendliness, energy conservation and eco-efficiency.

The cabinet door is fitted with double-layer tempered glass for convenient real-time observation of sample heating status inside the working chamber.
The cabinet shell is treated with electrostatic spraying, featuring an elegant appearance, corrosion resistance and durability.
Unique geometric cavity cleaning design provides active and optimal protection for samples.
The inner working chamber is made of stainless steel plates with adjustable stainless steel partitions. The four corners are designed with semicircular arcs to facilitate cleaning.

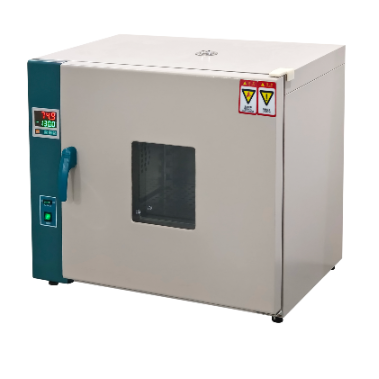

Forced Air Drying Oven external view showing control panel and cabinet design

Company Profile

Universal Testing Machines company facility and equipment overview

Frequently Asked Questions

How to install and use the product?

The product is shipped with an operating instructions and video of English version. We will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
